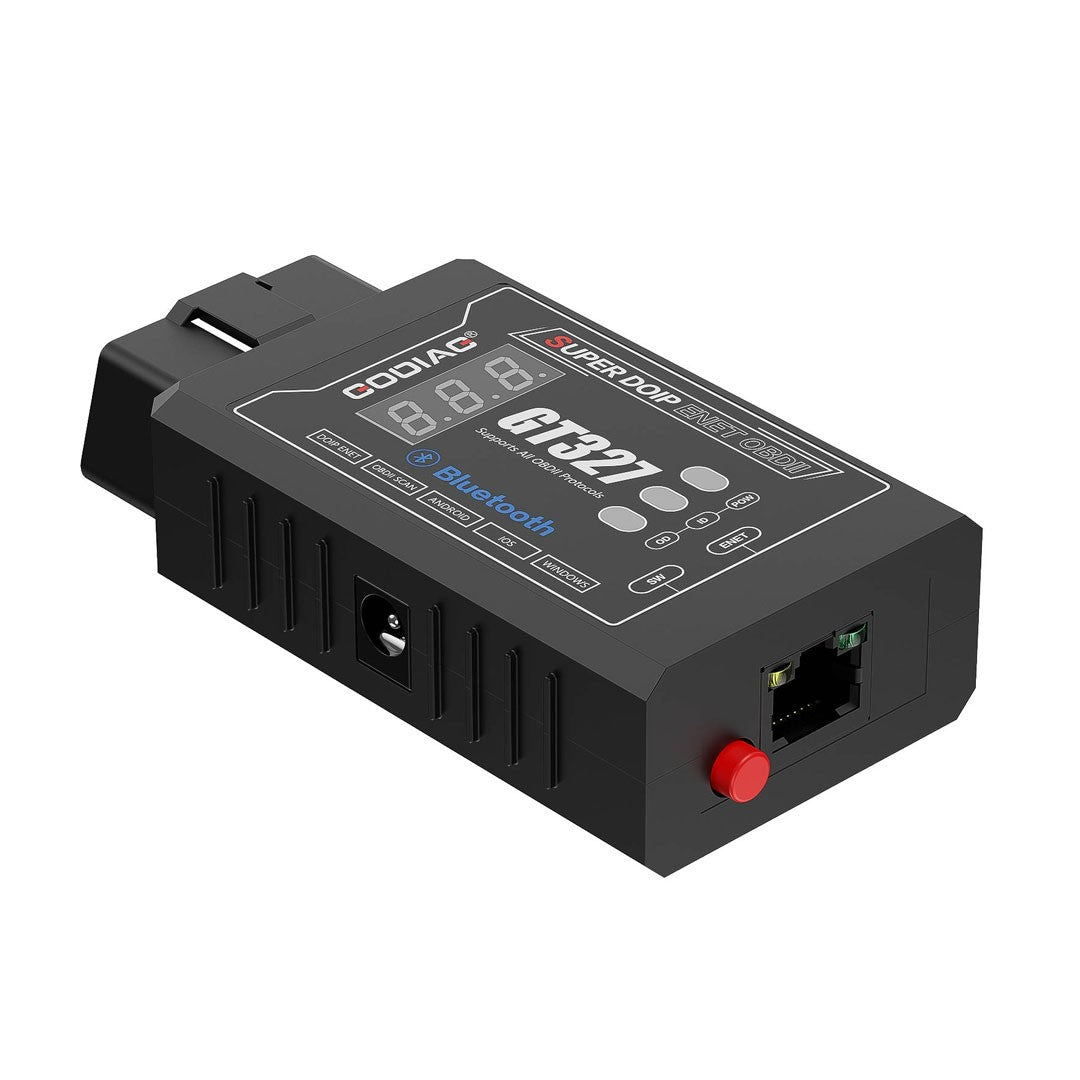

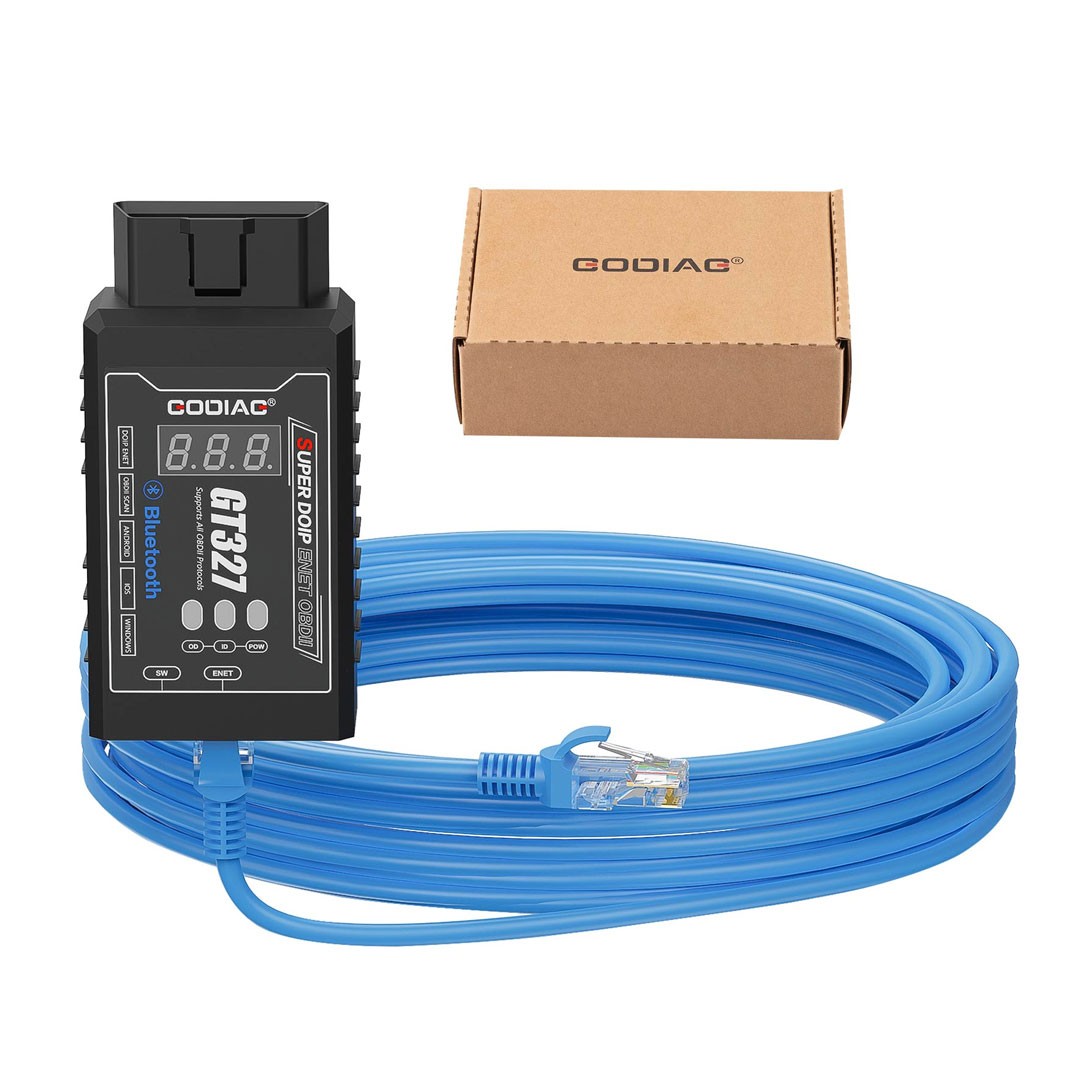

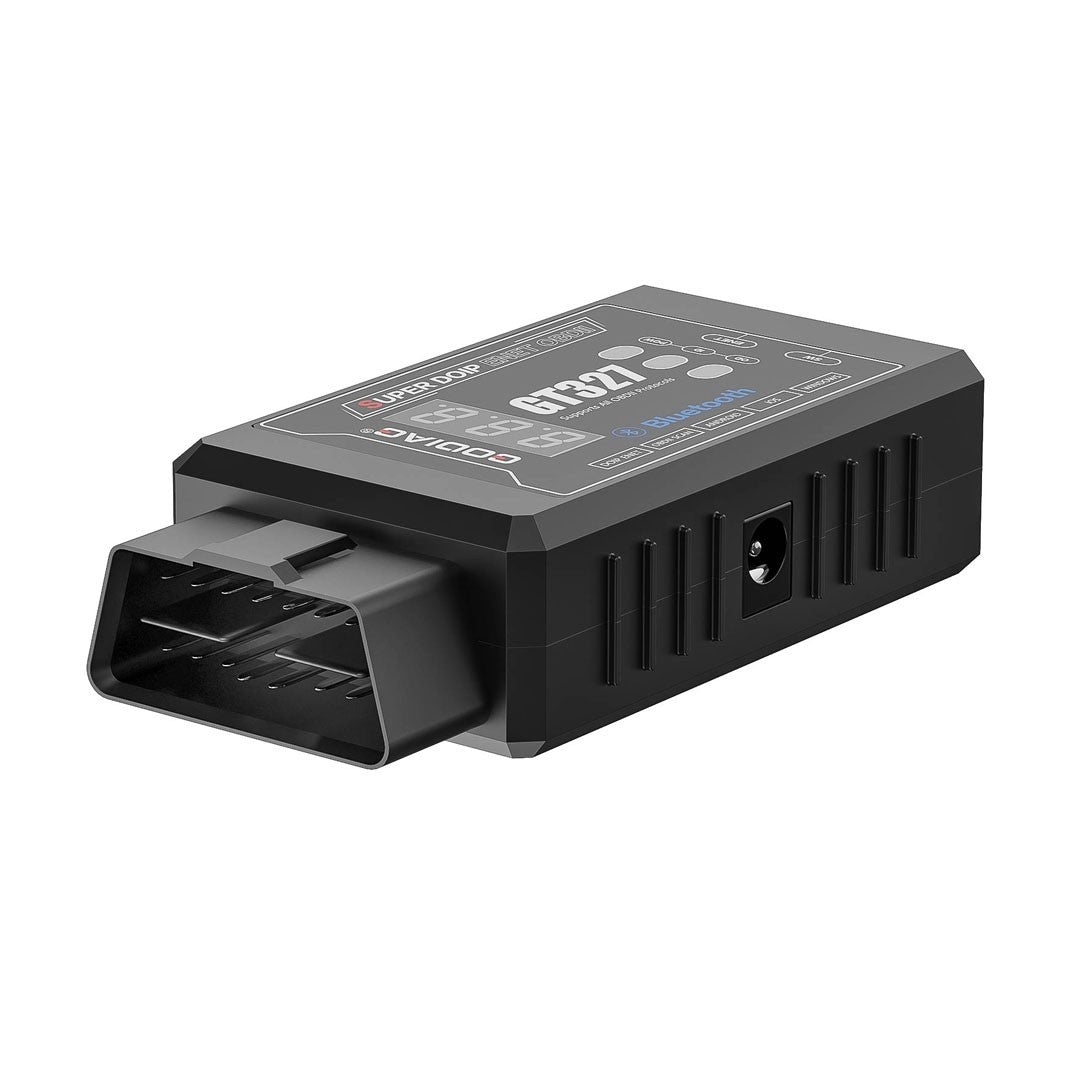

GODIAG GT327 SUPER DOIP ENET ELM327v1.5 Bluetooth 4.0 OBD II Scanner For iOS/Android/Windows Support Voltage Display

Description:

GODIAG GT327 SUPER DOIP ENET OBDII ELM327v1.5 full scanner is specially developed for car maintenance technicians, DIY maintenance personnel. The product supports Bluetooth and it adopts ARM core dual-mode Bluetooth communication. The product supports Android and iPhones to connect to the device via Bluetooth for car OBDII diagnosis. It can also be connected to a computer via an Ethernet cable, and used with DOIP and ENET vehicle-specific diagnostic software to perform diagnostic programming and coding operations.

Note: This product does not include software.

GODIAG GT327 SUPER DOIP ENET ELM327v1.5 Bluetooth 4.0 OBD II Scanner Product Features:

• Display the Current Vehicle Diagnostic Interface Voltage

• Alarm when the vehicle voltage is lower than 11V
  If the voltage is lower than 11V, the device will sound an alarm and the user needs to charge the car battery with a dedicated car battery charger. After hearing the alarm, users should not diagnose or program the vehicle, let alone try to start the vehicle to avoid damaging the battery due to excessive discharge.

• Support Android phones [Bluetooth name: OBD II]

• Support iPhones [Bluetooth name: OBD BLE]

• Support diagnostic programming coding for vehicles with DOIP ENET communication

• Supports 9-30v motorcycles, cars, trucks, commercial vehicles and SUVs.

GODIAG GT327 SUPER DOIP ENET ELM327v1.5 Bluetooth 4.0 OBD II Scanner Functions:

GODIAG GT327 SUPER DOIP ENET OBDII ELM327v1.5 Full Scanner Wireless Bluetooth communications support standard OBD II vehicle diagnostics.

Supported Protocols:

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850 VPW (10.4Kbaud)

• ISO9141-2 (5 baud init, 10.4 Kbaud)

• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

• ISO14230-4 KWP (fast init, 10.4 Kbaud)

• ISO15765-4 CAN (11bit ID, 500 Kbaud)

• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)

• ISO15765-4 CAN (29bit ID, 250 Kbaud)

• DOIP ENET (supported by Ethernet cable connection)

Android phone Bluetooth communication diagnostic function and usage steps:

Android phone supported software: Torque, inCarDoc, CarScanner, MotorData OBD, DashCommand
