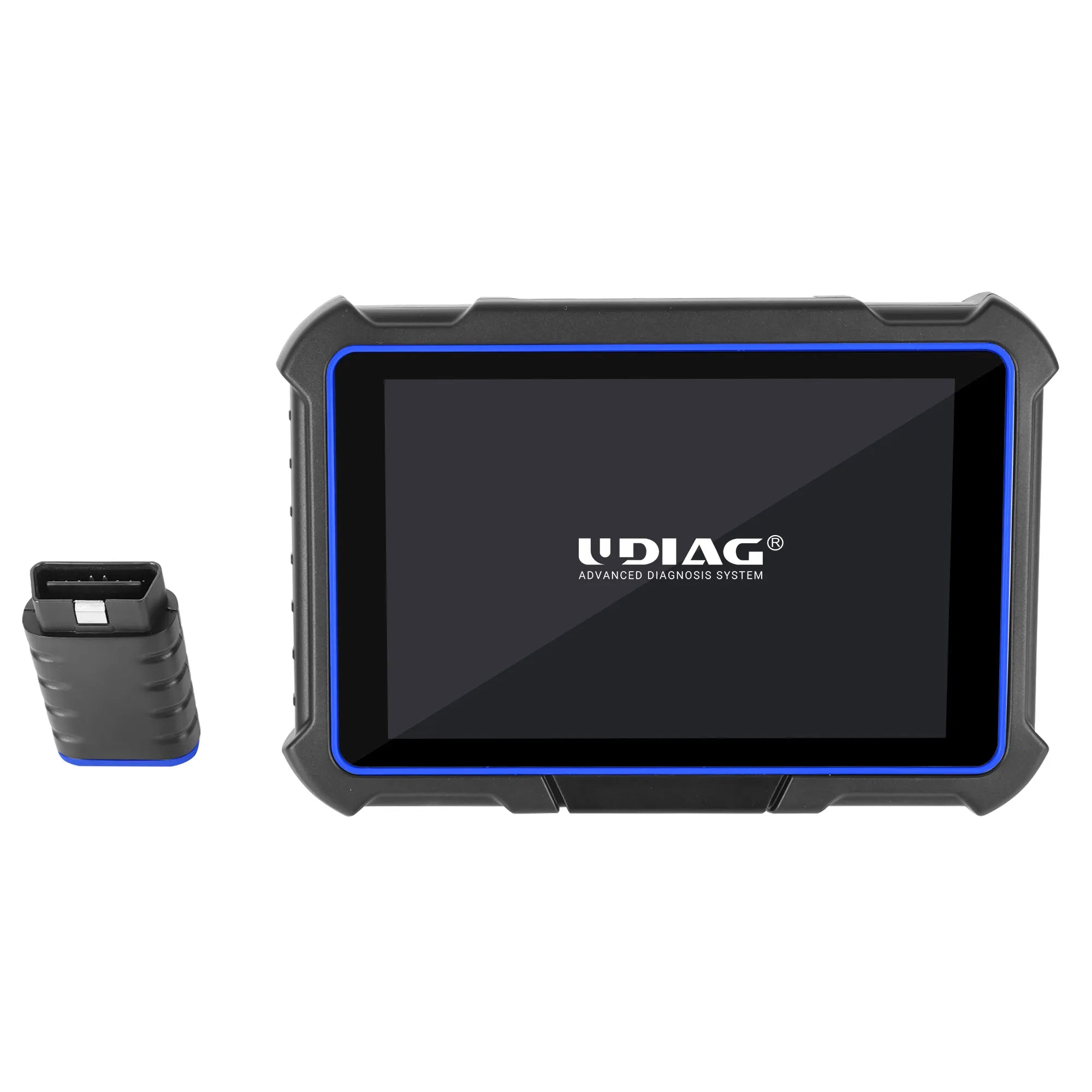

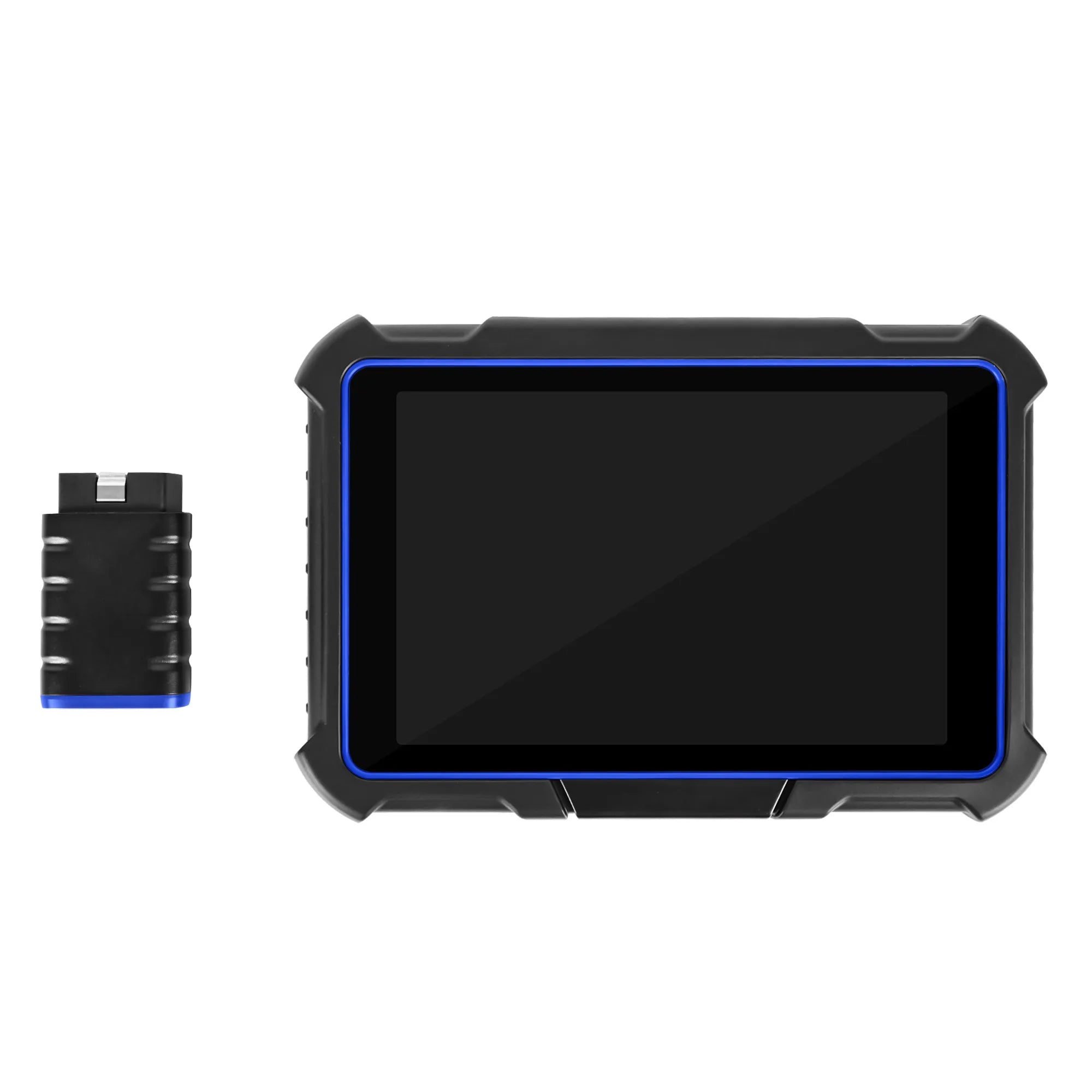

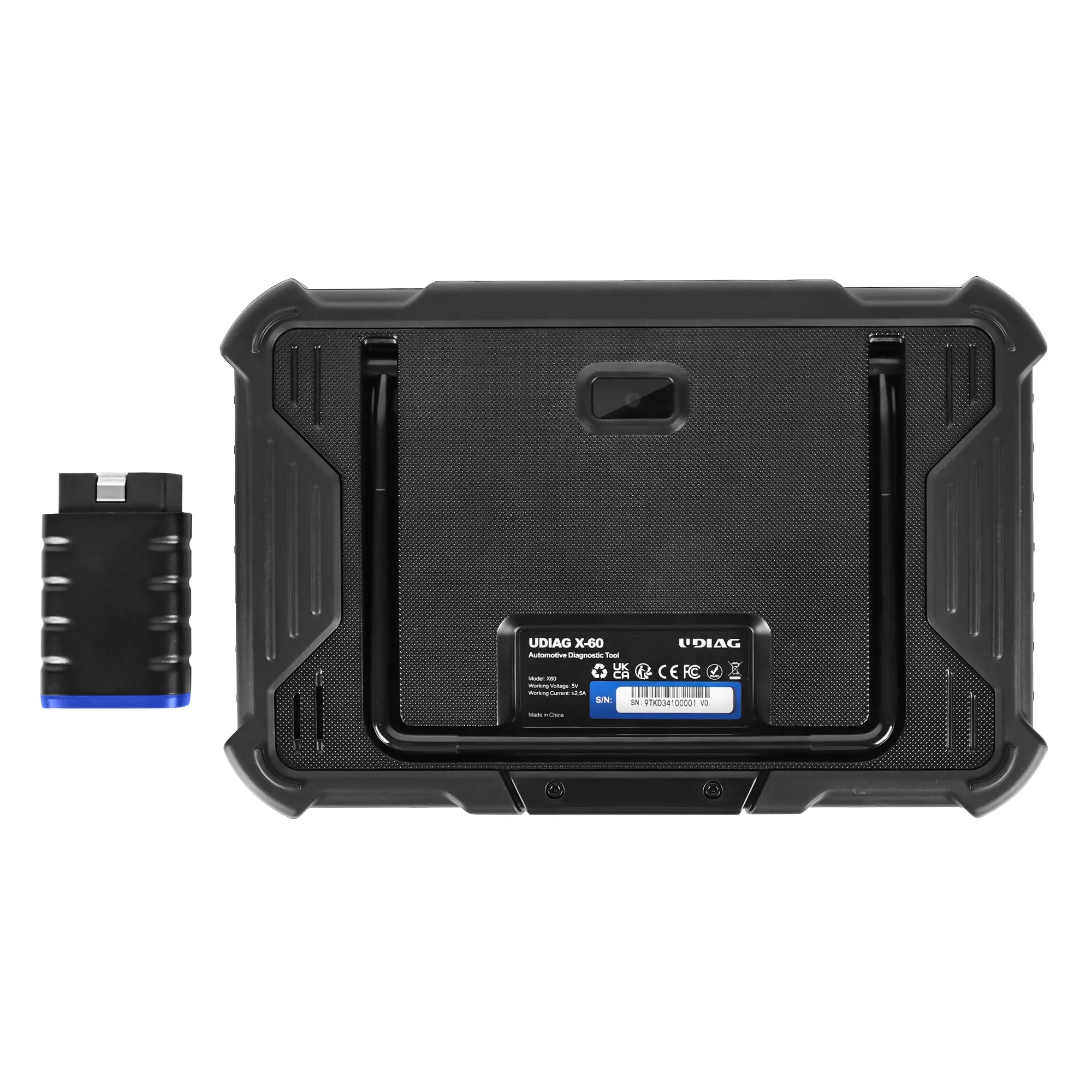

UDIAG X-60 OE-Level Full System Diagnostic Tool

X-60 OE-Level Full System Diagnostic Tool The UDIAG X-60 is a professional OE-level diagnostic tablet equipped with a high-speed processor and an 8-inch HD touchscreen. It supports the latest CAN FD and DoIP protocols, enabling faster and more in-depth vehicle diagnostics. The X-60 performs full-system scanning, read/clear codes, live data, actuation tests, advanced ECU coding, and 32+ special functions. With coverage for...

X-60 OE-Level Full System Diagnostic Tool

The UDIAG X-60 is a professional OE-level diagnostic tablet equipped with a high-speed processor and an 8-inch HD touchscreen. It supports the latest CAN FD and DoIP protocols, enabling faster and more in-depth vehicle diagnostics. The X-60 performs full-system scanningread/clear codeslive dataactuation testsadvanced ECU coding, and 32+ special functions. With coverage for 130+ vehicle makes and compatibility with expansion modules such as oscilloscopevideoscopeTPMS, and battery tester, it is an ideal solution for workshops and technicians seeking efficiency and precision.

Features

  • High-performance processor running on Android for fast boot-up and smooth multitasking.
  • Offers full-system diagnostics: read/clear codes, live data, freeze frames, actuation tests, and ECU coding.
  • Supports CAN FD, DoIP, and multiple Security Gateway (SGW) unlocks.
  • Built-in AutoVIN recognition and 8MP rear camera for VIN scanning.
  • Dual-band Wi-Fi (2.4G / 5G) provides fast and stable connectivity.
  • Supports high-speed Bluetooth VCI.
  • Compatible with oscilloscope, videoscope, TPMS, and battery tester modules.
  • High-capacity lithium battery ensures long diagnostic sessions.



Specifications

  • Operating system: Android 8.1
  • Display: 8.0 inch HD Touch Screen
  • Processor: 2.0GHz Quad-Core
  • Memory: 4GB RAM + 64GB ROM
  • Camera: 8MP (Rear)
  • Operating Temperature: -10°C to 50°C
  • Bluetooth: BT5.0
  • Battery: 9450mAh



Availability: Out of stock
