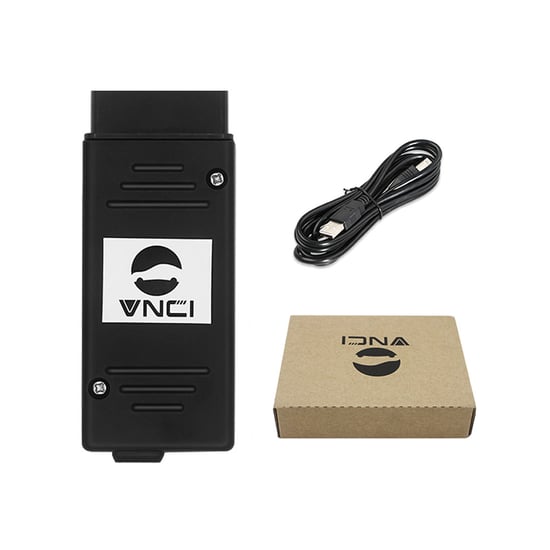

VNCI MDI2 Cadillac, Chevrolet, Buick, GM Diagnostic Interface Series Of Original Factory Mode Diagnostic Tools

Product Description:
VNCI MDI2 diagnostic scanner for Cadillac, Chevrolet, Buick and GM vehicles compatible with the latest original software driver. Plug and play without installing any third-party patches and can replace the original GM MDI2 interface. Provides full original GM MDI2 interface functionality.

Overview
VNCI MDI2 offers original-level processing speed, security and programming performance. It works with General Motors Global A and Global B platform models and allows diagnosis and programming of automotive electronic systems through PC-based software communication.

Supported Diagnostic Systems

• GDS2
• RDS
• Tech2Win
• Data Bus Diagnostic Tool (CAN Bus analyzer)
• TIS2Web-SPS Pass-Thru offline programming
• Global DPS offline programming and Pan-Asian DPS programming
• GM Techline Connect (TLC)

Advantages

• 100% support CAN FD and DoIP communication
• No file modification or third-party software required
• Compatible with latest original drivers
• Simulates original hardware verification
• Supports B platform offline programming and security algorithms
• Free registration for GDS, DPS and Tech2Win software
• Faster and safer programming

Functions

• Vehicle diagnosis
• Read and clear fault codes
• Key matching
• Online and offline module programming
• CAN FD and DoIP module programming
• Pass-Thru programming for controllers (PCM, ABS, VTD, etc.)

Supported Protocols

• SAE J2534 Pass-Thru
• CAN FD
• DoIP
• UART
• Class2
• KWP2000
• GMLAN (CAN)

Vehicle Coverage

• GMC
• Chevrolet
• Buick
• Cadillac
• Opel
• Models from 1996 to present

Connection Modes

• USB connection
• AP (Access Point) direct WiFi connection
• WLAN station connection
