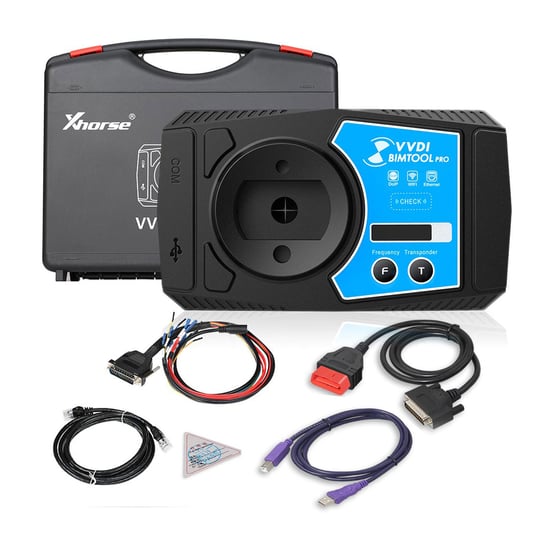

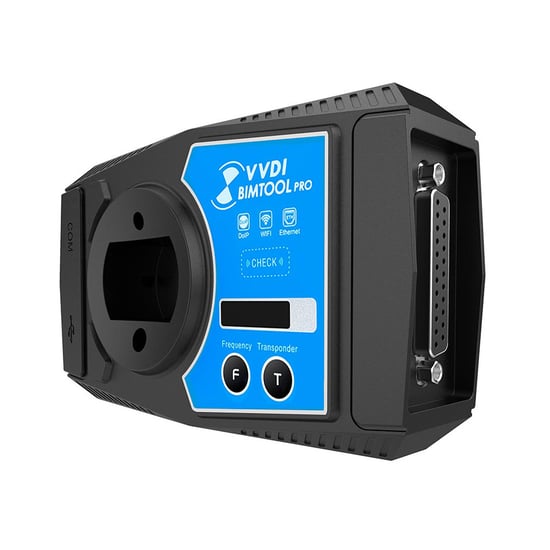

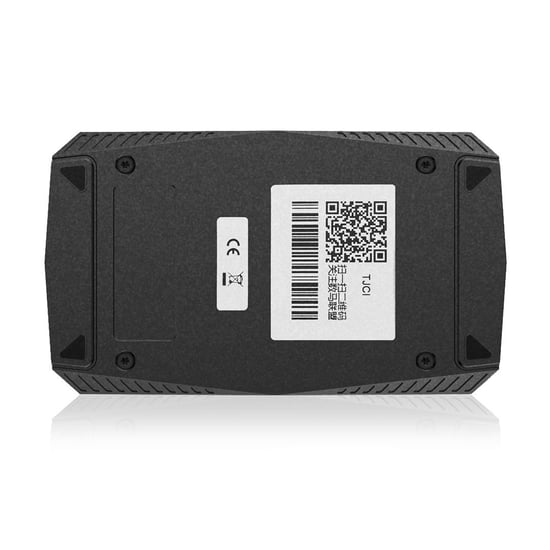

Xhorse VVDI BIMTool BIM BMW Tool Pro Enhanced Updated Edition Device

Product Description:
Support BMW E-sys and Rheingold Diagnostic System. Able to replace the specialized devices. Support directly read ISN data without disassembling the ECU

VVDI BIMTool Pro New Features:

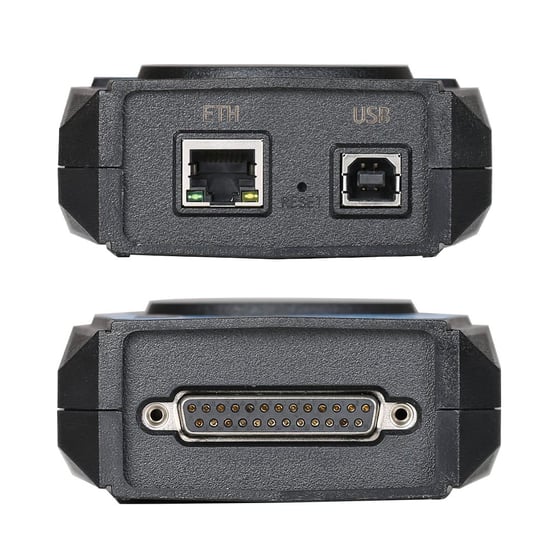

• Add Ethernet port, support 10/100M programming via Ethernet
• Support WIFI 802.11 b/g, 150Mbps high-speed connection and WIFI OTA upgrade
• Support DoIP vehicle/module programming
• Support BMW ECU programming (NBT/CIC) via network cable
• Greatly speeds up F/G chassis programming via network cable
• Support BMW E-sys and Rheingold diagnostic system (can replace specialized devices)
• Directly read ISN data without disassembling ECU (N13 / N20 / N55 / N63)
• Compatible with Windows computers (Win7 / Win8 / Win10)

Note:

• Do not use Ethernet cable and USB cable at the same time. Use USB for key programming and Ethernet for coding.
• After connecting VVDI BIM device to PC it will show "Booting", then "BMW" after about 20 seconds indicating successful connection.
• VVDI BIMTool Pro and VVDI BMW Tool use the same software and some functions require BIMTool.

VVDI BIM Tool Pro Functions:

• OBD key learning: CAS1, CAS2, CAS3, CAS3+, CAS3+ ISTAP, CAS4, CAS4+
• File key making and EEPROM synchronization
• FEM/BDC key generation, control unit replacement, mileage reset
• Mileage correction for CAS systems

E-Series Programming, Coding & DTC:

• Auto detect chassis
• Scan all vehicle units
• Calculate configuration units
• Read/write car configuration (FA)
• Input HW/ZB number for programming
• Calculate default coding
• Edit configuration and coding data
• Multi-language DTC code support

F-Series Programming, Coding & DTC:

• Auto detect chassis
• Read/write car configuration (FA)
• Calculate programming files from database
• Default coding calculation
• Detailed coding editing and special functions

CAS OBD Key Learning:

• Read/write key information
• Key learning
• Read/write EEPROM
• Synchronize ECU and CAS
• Synchronize CAS and ELV
• Read ISN via OBDII
• Enable/disable keys
• KM reset via OBDII

CAS4 / CAS4+ Key Learning:

• Read encrypted CAS key via OBDII
• Program key via programmer or ignition switch
• Backup/restore coding
• Erase key position
• Update original CAS4 file

FEM / BDC Key Learning:

• Read encrypted FEM/BDC key via OBDII
• Program keys and disable/enable keys
• Backup/restore coding
• Exchange used FEM/BDC
• Reset ECU lock and transport mode
• Switch ignition on without working key

Additional Functions:

• CAS EEPROM dump key learning (EWS1/EWS2/EWS3/EWS4)
• 8HP gearbox renew (clear ISN, reset adaptation)
• Read ECU synchronization code and ISN via OBDII
• ECU & CAS exchange (write ISN and VIN)
• CAS repair via OBD and EEPROM
• Restore ISN and VIN for CAS3+/CAS4+
• KM calibration for EWS, CAS and dashboards
• Unlock HITAG2 key via programmer
