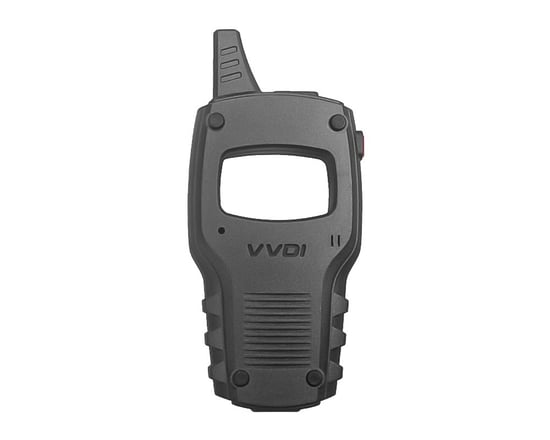

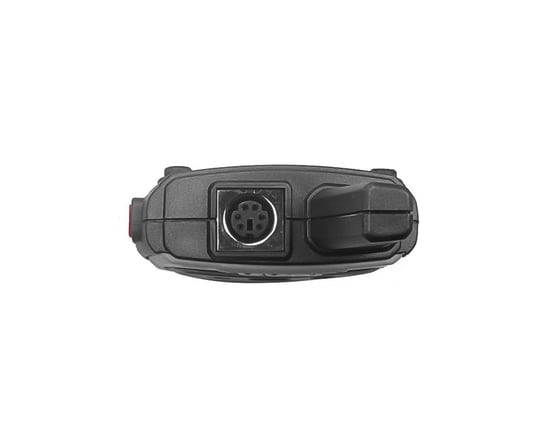

Xhorse VVDI Mini Key Tool Device

Product Description:

VVDI Mini Key Tool can generate and copy the remote & chip by working together with the mobile phone. Easy to use and perfectly replaces Xhorse VVDI Key Tool.

What’s New:

• Super fast power on
• Super fast chip reading
• Super fast frequency testing
• Frequency test distance: 30 cm
• Bluetooth connection with mobile App
• 3 colors available (Red / Green / Orange, sent randomly)
• Comprehensive remote and chip programming functions
• Integrated mainstream remote and chip database

Main Functions:

• Remote Clone
• Remote Generation
• Garage Remote Generation
• Transponder Clone
• Generate Transponder
• Frequency Test
• Remote Renew
• IC/ID Clone
• Special Functions

Remote & Transponder Capabilities:

• Clone ID4C / 4D / 46 / ID70 / ID72
• Supports future updates
• Generate remotes using VVDI Mobile App (Android & iOS)
• Supports 46 / 42 / 4D / 4E / 11 / 33 / 8C / 83 transponder cloning
• Generate TP transponder and special transponders
• Supports over 700 vehicle models

Remote Cloning & Generating:

• HCS fixed code cloning
• Non-HCS rolling code cloning
• PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing
• Supports 128 brands and more than 2000 vehicle models

Frequency & Garage Remote:

• Frequency testing range: 300-450 MHz
• Garage remote generation supports more than 100 types

Special Functions:

• Remote renew
• Ignition switch coil signal detection
• Unlock Toyota smart key
• VVDI smart key clone
• VVDI super transponder
• Honda cycle key renew
• ID/IC clone

Full Authorization (Activated):

• AI car remote type
• AI key blade type
• AI PIN code
• Vehicle remote & garage remote generation
• Proximity remote support
• Generate transponder 7935 / 46 / 4D / 48 / 8C
• Toyota H (8A) transponder generation
• Transponder clone ID46 / ID4D / ID4E / ID70 / ID83
• Transponder edit 11 / 12 / 13 / 4C / 46 / 47 / 48 / 4D / 4E
• Remote clone fixed & rolling code
• Detect remote frequency
• Hyundai / Kia PIN code
• Copy BYD smart key
• Online technical support

Update Method:

• Connect device to PC via USB cable
• Run Xhorse update kit software
• Select VVDI Lark and find device
• Click upgrade
• Update database via mobile app Bluetooth connection

Parameters:

• LCD Size: 2.4 inch
• Resolution: 320 × 240
• Extra Power: 5V / 1A
• Usage Time: ≥ 10 hours
• Product Size: 108 × 194 × 28 mm
• Weight: 229 g
• Charge Current: 1A
• Battery Capacity: 150 mAh
• Power: 600 mW
• Battery Voltage: 3.6 – 4.2V
