Xtool H6Pro 3 Diagnostic Tool Device

Product Description:
Xtool H6Pro 3 is an automotive smart diagnostic system designed for mechanics, electricians, and auto repair stores. It supports full system diagnostics including reading ECU version information, reading/clearing fault codes, live data and freeze frames. It also supports special functions, ADAS calibration, programmable module installation, ECU coding and online ECU programming. The system scan supports both topology mapping and list modes, and offers 42 common special functions such as throttle matching, ABS bleed, service light reset, EPB test, SAS, BMS, injector coding, DPF regeneration and TPMS reset. Coverage includes over 85 brands and more than 10,000 vehicles.

Highlights

• 10.1" Touchscreen (1920 × 1200) / Android 10.0
• 2.2GHz + 1.8GHz Octa-core Processor / 8GB + 128GB Memory
• Dual Wi-Fi connection
• 6400mAh battery with approx. 6 hours continuous use
• 8MP rear camera
• New VCI protocols: DoIP and CAN FD
• Topology module mapping with color coded system status
• ADAS camera and radar calibration support
• Offline programming for Ford, Lincoln and Mazda
• Online coding and programming for VAG, BMW and Mercedes-Benz

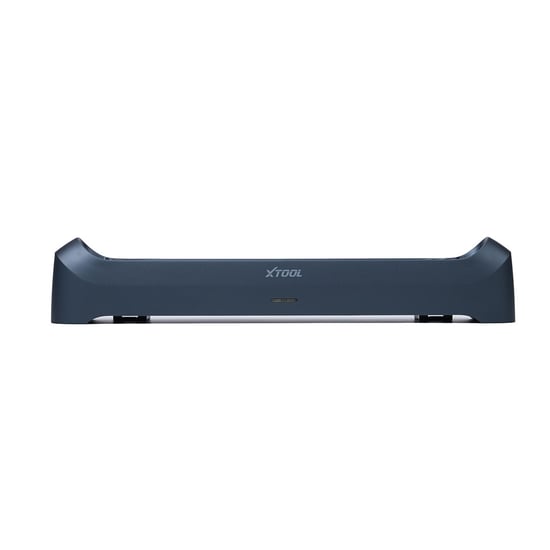

• Includes OBDI connectors and charging dock
• 2-Year warranty and 3-Year software subscription

Vehicle Coverage

• U.S., European, Asian and Chinese vehicles
• Gasoline, diesel, hybrid and electric vehicles
• Provides fault code guidance for VAG and BMW

Specifications

• Operating System: Android 10.0
• Processor: 2.2GHz + 1.8GHz Octa-core
• Memory: 8GB RAM + 128GB ROM
• Display: 10.1-inch, 1920×1200P
• Camera: 8MP AF with flashlight
• Communication: Wi-Fi, USB
• Connectivity: Type-C
• Working Voltage: 9-32V
• Battery: 6400mAh, 7.3V
• Working Temperature: 0-40℃
• Storage Temperature: -10-50℃
• Protocols: CAN FD, DoIP
• Dimensions: 309.2 × 188.9 × 34.9 mm

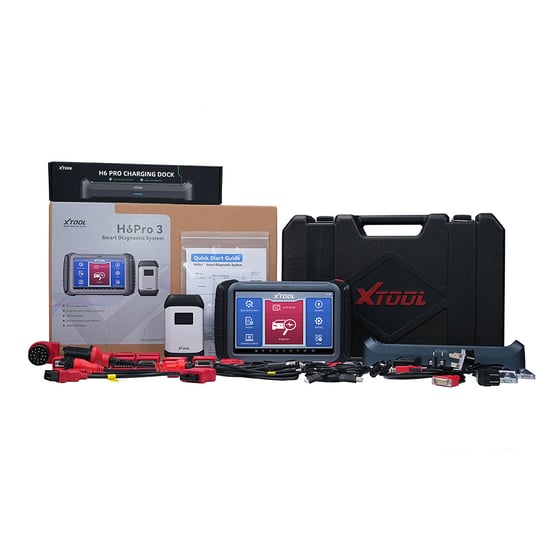

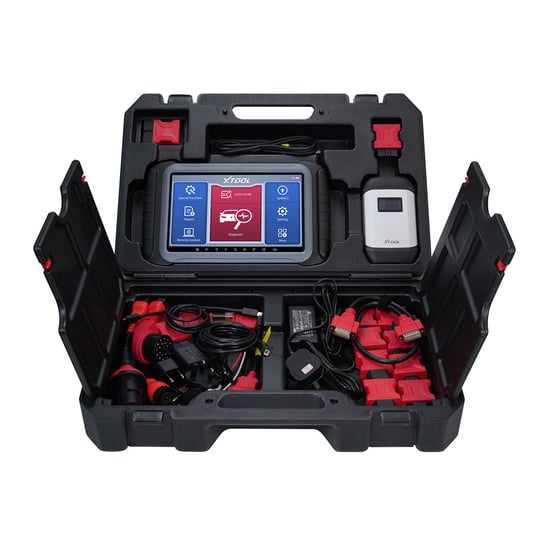

Packing List

Accessories

• Color Carton
• Certificate of Quality
• Quick Start Guide
• Packing List

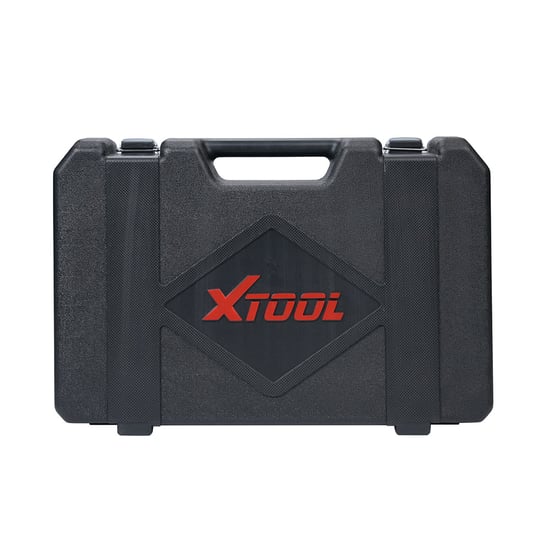

• Tool Case

Main Units

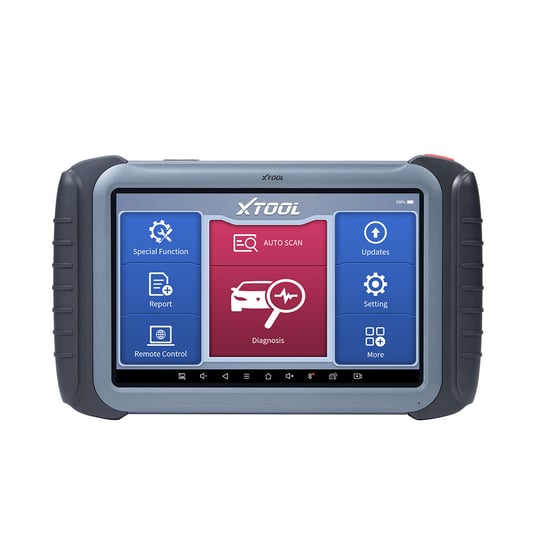

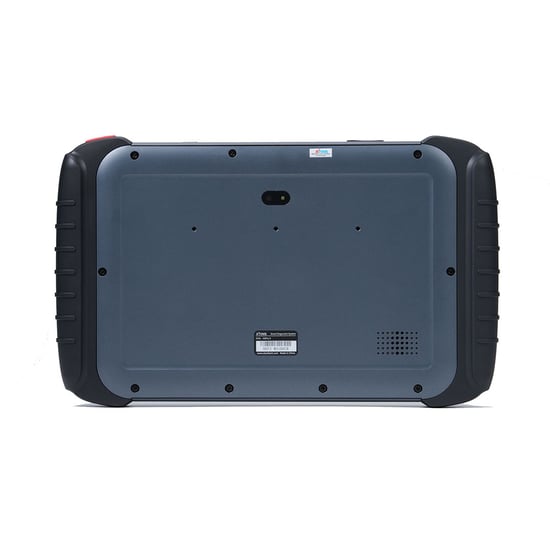

• Tablet

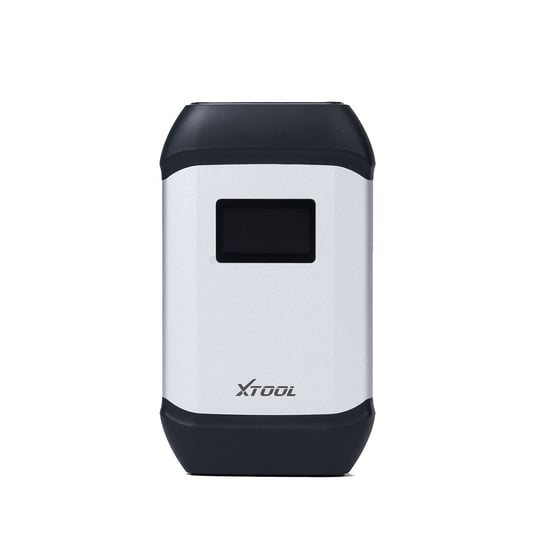

• VCI Box
• Type-C to Type-A Data Cable
• Type-C to Type-B Data Cable
• Type-C to Type-C Charger Cable
• PD Supply Charging Adapter US
• Charging Adapter EU
• Charging Adapter UK
• Cigar Lighter Power Plug

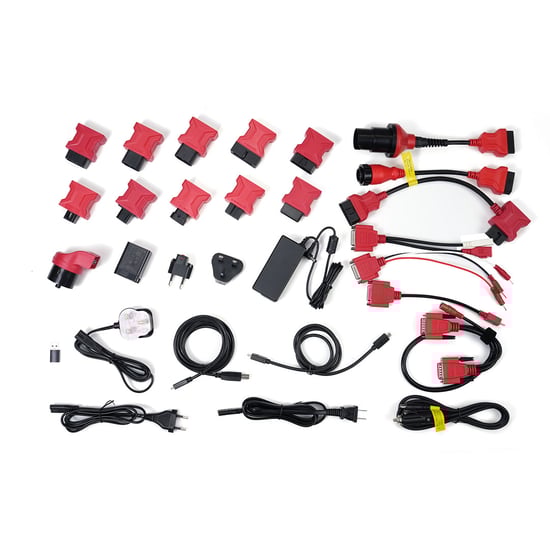

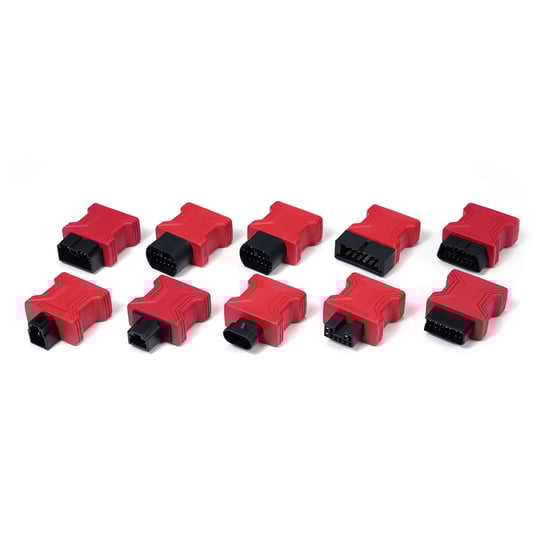

Test Connectors

• DB15 Main Cable
• OBD II-16
• HONDA-3
• BMW-20
• BENZ-14
• BENZ-38
• TOYOTA-17
• MAZDA-17R
• KIA-20
• HYUNDAI/KIA-10
• NISSAN-14
• GM/DAEWOO-12
• UNIVERSAL-3
• SUZUKI-3
• FIAT-3
• CITROEN-2
• AUDI-4
• MITSUBISHI-12+16
