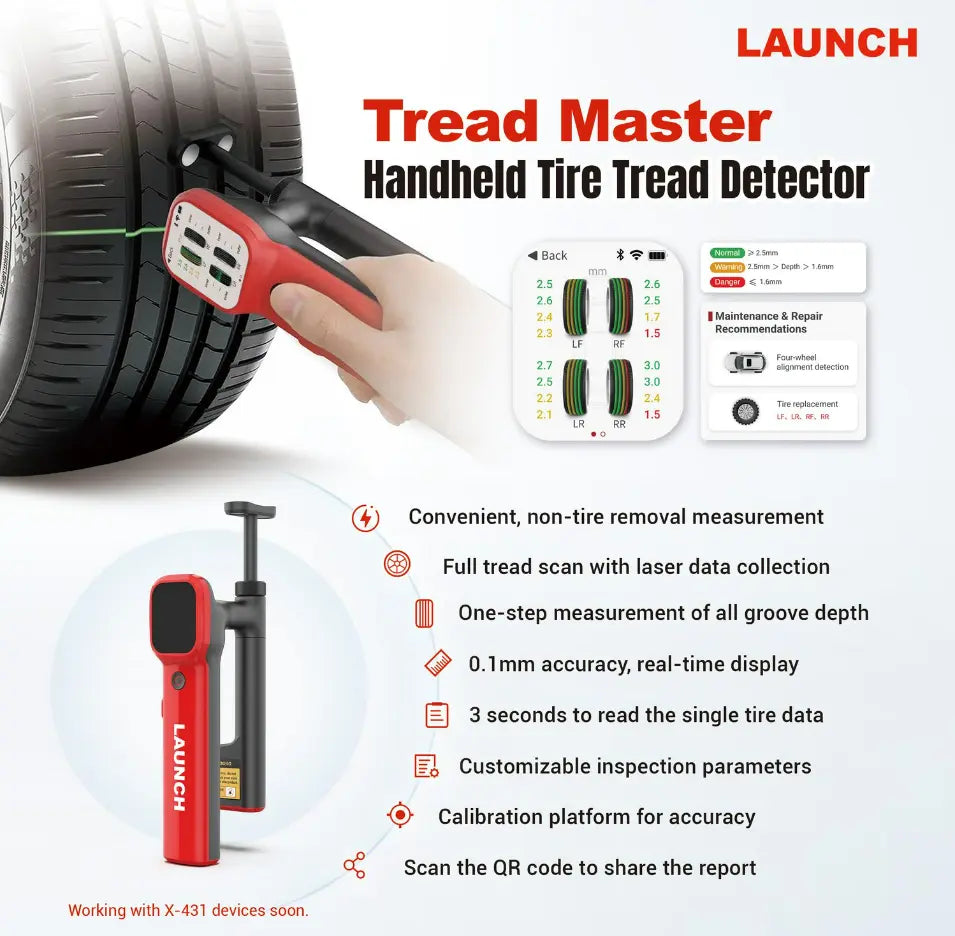

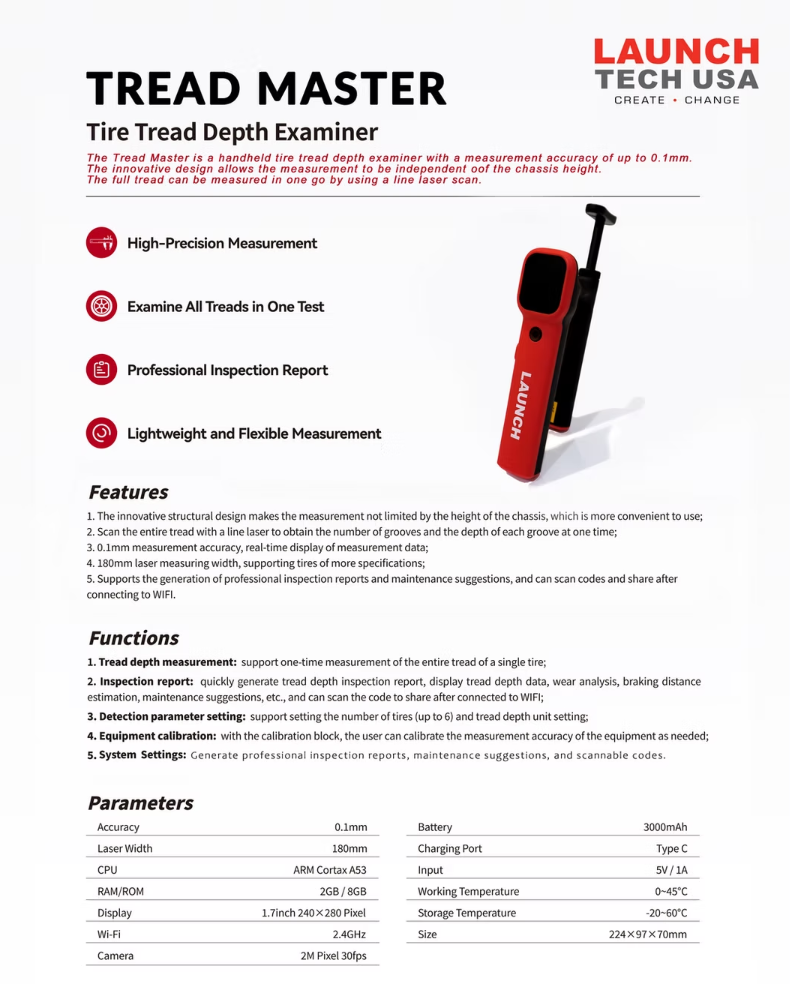

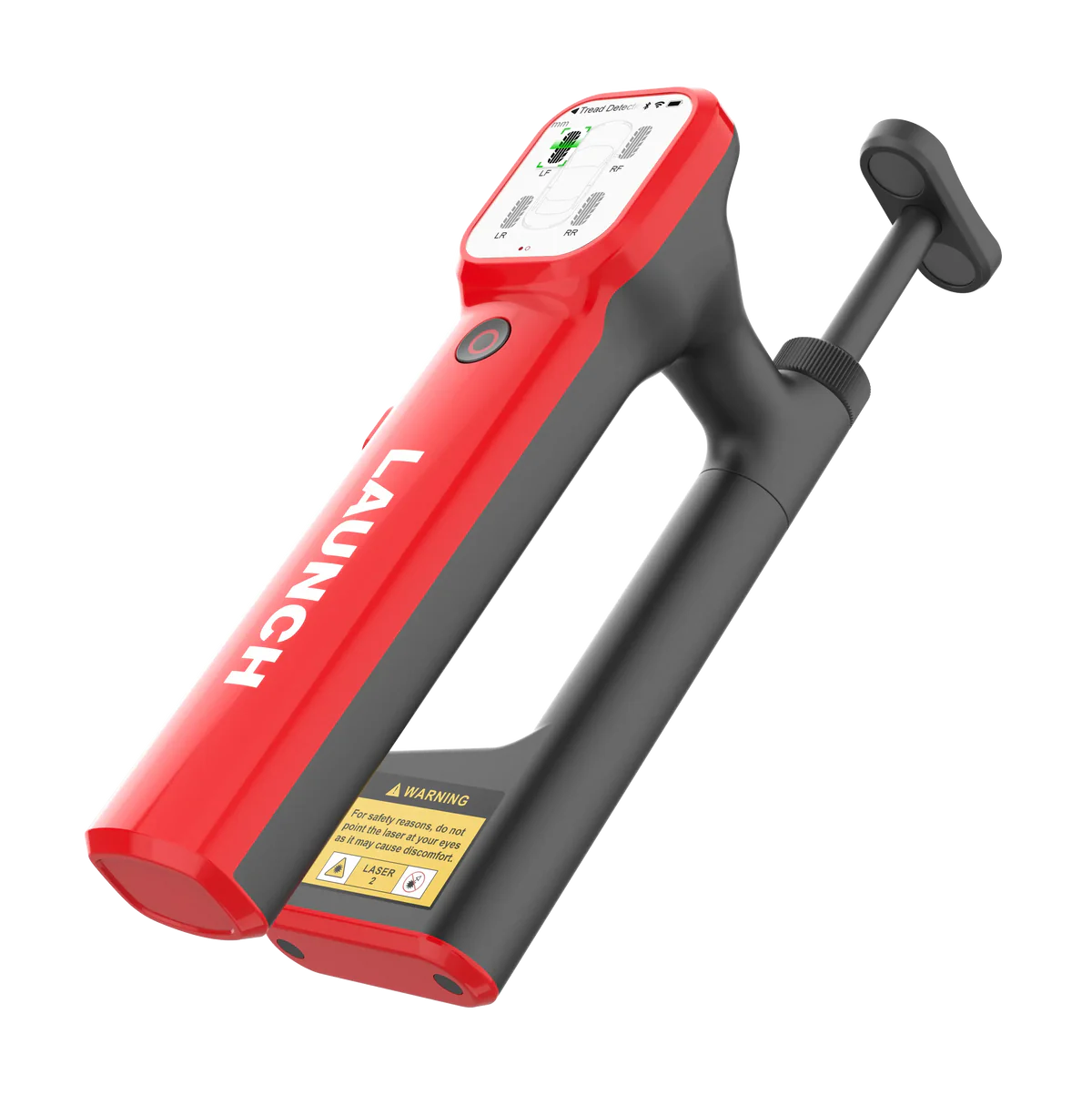

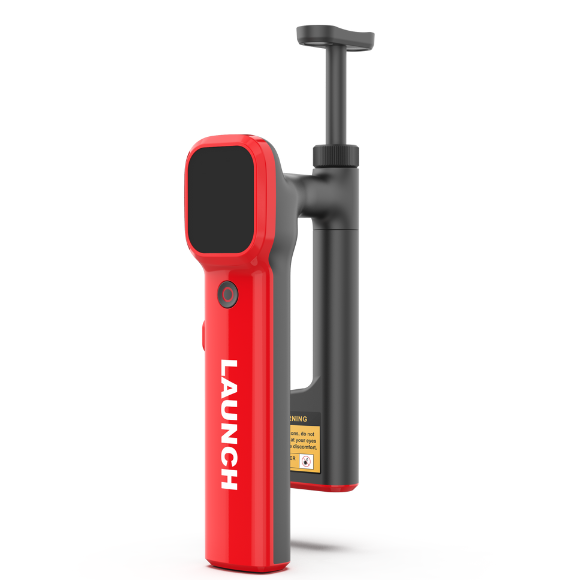

Tread Master is a handheld tire tread depth examiner with a measurement accuracy of up to 0.1 mm. The innovative structural design allows the measurement to be independent of the chassis height. The full tread can be measured in one go by using a line laser scan.

Features

1. The innovative structural design makes the measurement not limited by the height of the chassis, which is more convenient to use.

2. Scan the entire tread with a line laser to obtain the number of grooves and the depth of each groove at one time.

3. 0.1 mm measurement accuracy, real-time display of measurement data.

4. 180 mm laser measuring width, supporting tires of more specifications.

5. Supports the generation of professional inspection reports and maintenance suggestions, and can scan codes and share after connecting to WIFI.

6. Supports Wi-Fi connection, language switching, screen brightness adjustment, automatic sleep, software updates, and more.

7. Supports single groove depth detection for special patterns of tire.

Specifications

Accuracy: 0.1 mm
Laser Width: 7.09 inches (180 mm)
CPU: ARM Cortex-A53
RAM/ROM: 2 GB / 8 GB
Display: 1.7 inches, 240 × 280 pixels
Wi-Fi: 2.4 GHz
Camera: 2 MP, 30 fps
Battery: 3000 mAh
Charging Port: Type C
Input: 5V / 1A
Working Temperature: 32°F to 113°F (0°C to 45°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Size: 8.82 × 3.82 × 2.76 inches (224 × 97 × 70 mm)
