Launch X431 SmartLink C V2.0 – Remote Diagnostic Device (Vehicle Data Link Connector)

Description: The SmartLink Remote Diagnostics System is a powerful service system dedicated to remote vehicle diagnosis and service. SmartLink C users can submit remote repair orders to vehicle repair companies through the SmartLink Service Platform. It supports vehicles compliant with CAN, DoIP, CAN FD, and J2534 diagnostic protocol standards.

Product Details: Diagnostic Tools from Launch, Product Number MK23272, Product Weight 4100g

Note: Activation Card Required

IP Restriction: Works only in Middle East and Africa except South Africa

System Overview: The SmartLink Remote Diagnostics System allows SmartLink C users to connect vehicles while SmartLink B service providers perform diagnostics remotely. This enables efficient remote troubleshooting without limitations on diagnostic functions.

SmartLink System Components:

• SmartLink Service Platform for binding devices and managing remote repair orders
• SmartLink B dongle used with diagnostic tools to diagnose vehicles connected via SmartLink C

Launch X431 SmartLink C V2.0 Features:

• Compatible with LAUNCH tools, OE tools, and third-party diagnostic tools
• Supports both remote diagnosis and local diagnosis
• Supports advanced protocols including J2534, DoIP, CAN FD, CAN 2.0, RP1210, and D-PDU
• Allows publishing requests and accepting offers through the Launch Super Remote Diagnosis Platform

SRDs SmartLink Super Remote Diagnosis Solution:

• Consists of SmartLink C, SmartLink B, and Cloud Platform
• SmartLink C connects to the vehicle
• SmartLink B connects to any diagnostic device
• Remote diagnosis is carried out through the SmartLink platform

Technical Specifications:

Display: 3.97-inch single-touch screen, 320 × 480

Working Voltage: DC 9V to 36V

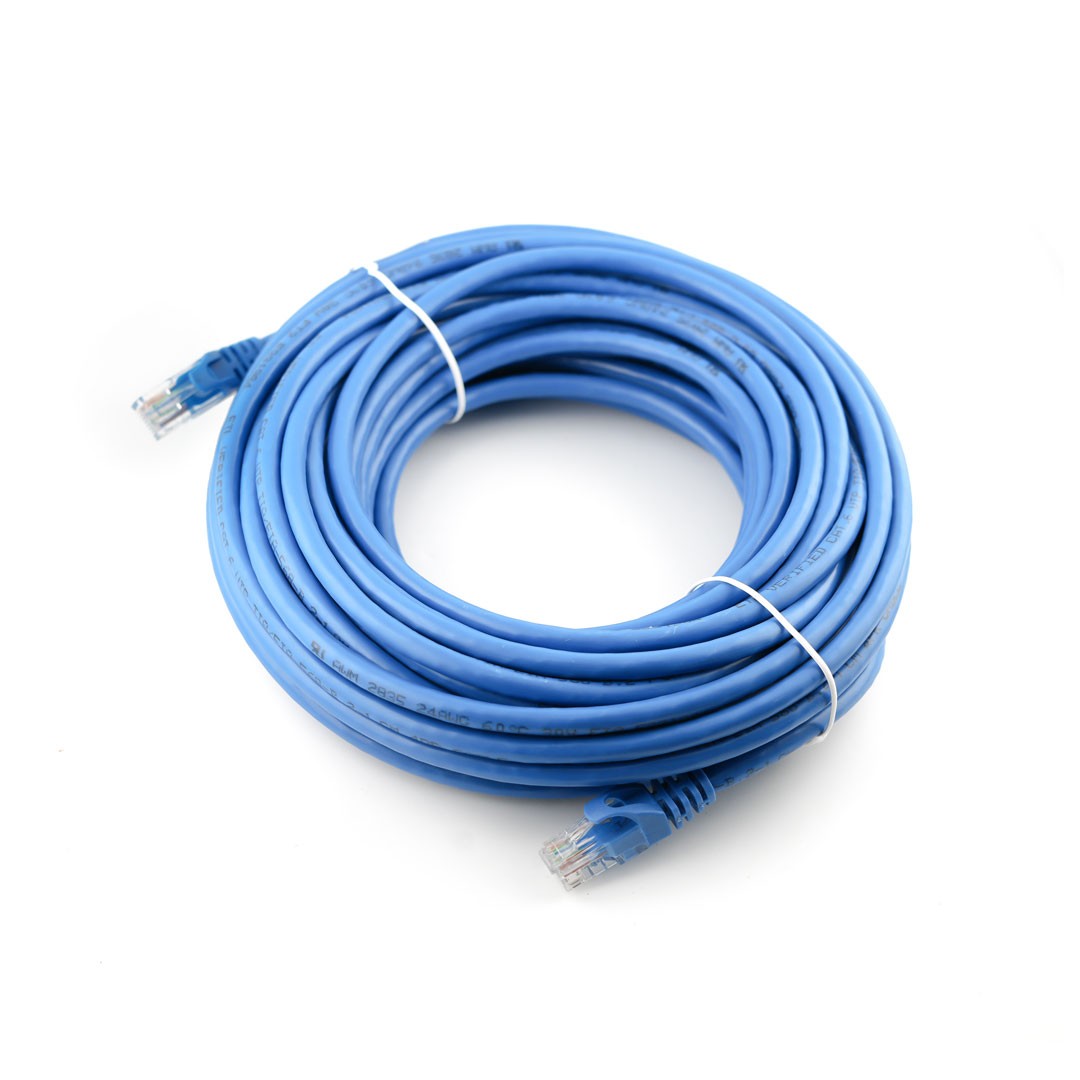

Communication Method: Ethernet

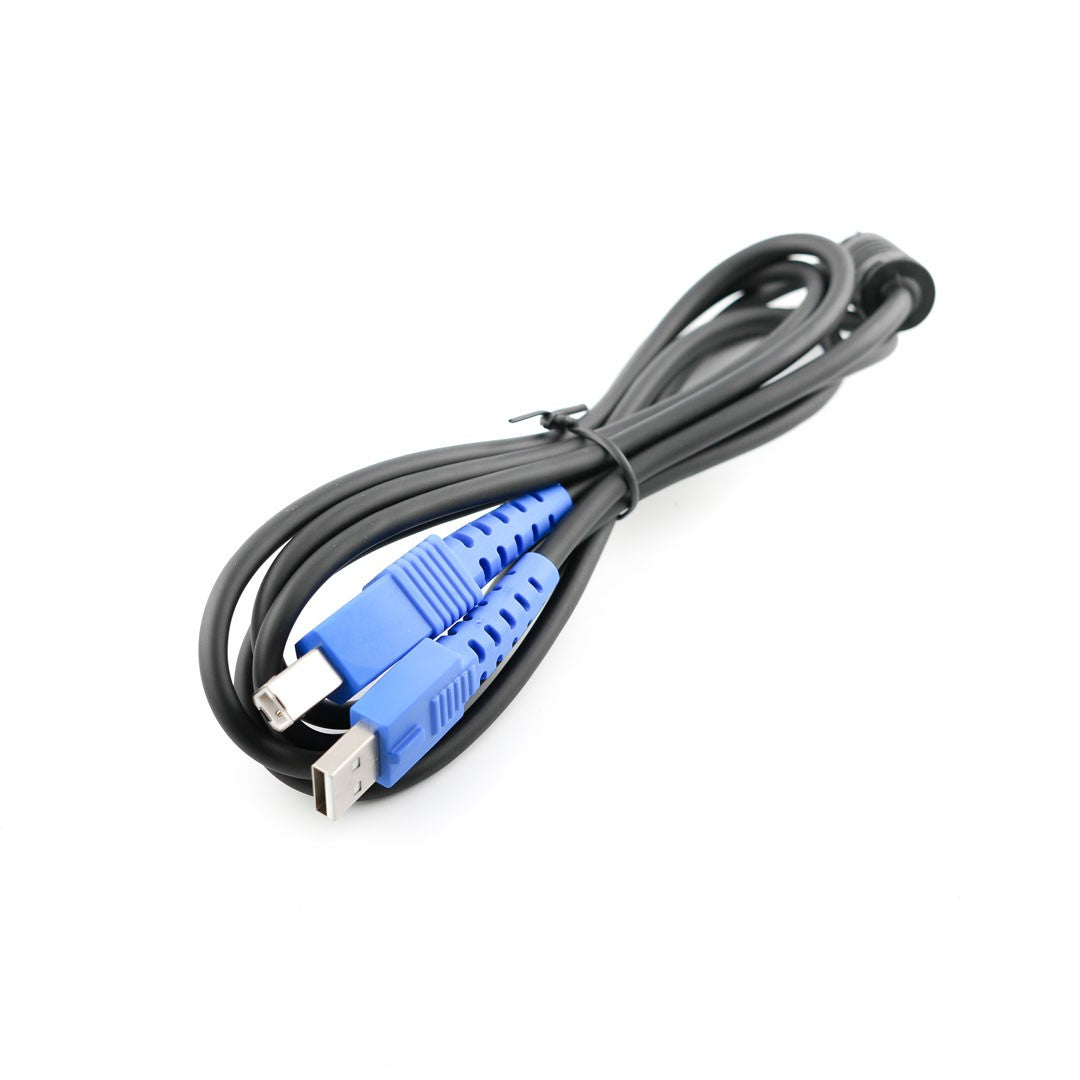

USB Interface: Type B USB 2.0

Storage: 8GB

Memory: 256MB

Power Consumption: Less than 6W

Working Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

Storage Humidity: 10% to 90%

Dimensions: 204 × 110 × 45 mm

Service Platform Description: The SmartLink Service Platform pairs SmartLink C and SmartLink B devices through a web browser. SmartLink C users can submit remote diagnostic requests, while SmartLink B service providers can view and accept those requests to perform remote diagnostics.
