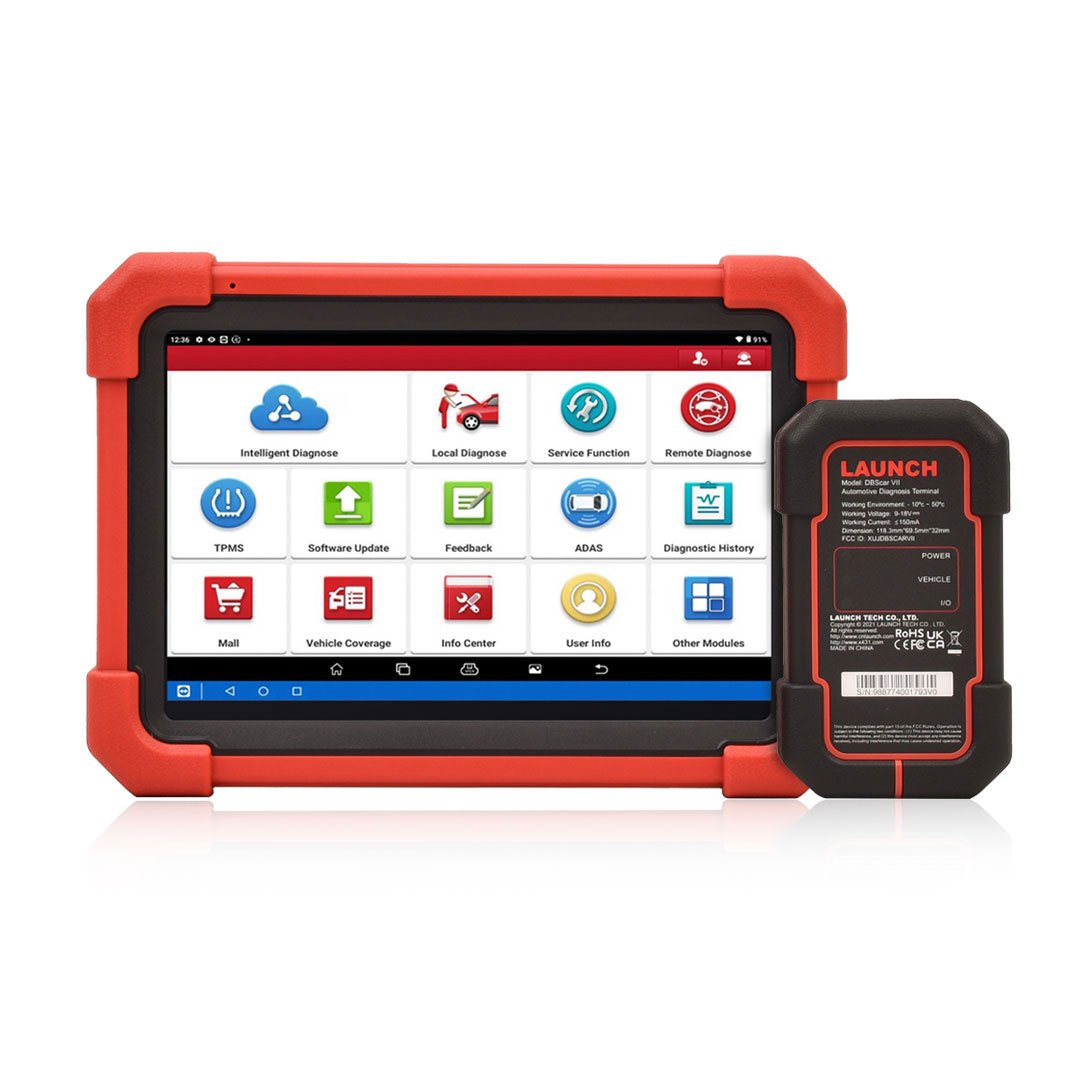

Launch X-431 PRO SE ( PRO V5.0 ) Diagnostic Device

Launch X-431 PRO SE Description:
Launch X-431 PRO SE ( PRO V5.0 ) Diagnostic Device New Design with DoIP/CAN FD Functions Will Be The Best Choice For Entry-level Technicians
Diagnostic Tools From Launch with Product Number: MK22399
This Weight Product: 5700g
Ip Restriction (works only in Middle East and Africa Except South Africa )



Launch X-431 PRO SE Features:

 Upgraded Android 10.0 operation system, 4GB memory and 64GB storage ensure faster and smooth diagnosis.

 Brand new designed VCI supports even more communication protocols, e.g. CAN, CAN FD, DoIP*, etc. (*Need an extra DoIP cable)

 Wireless communication offers flexible and easy connections for diagnostics, while a cabled connection offers a fast and stable connection for advanced work like coding.

 Full system OE-Level diagnostics on 1996 and newer U.S., European and Asian vehicles

 Full diagnostic functionality includes comprehensive OBD II diagnostics, read/clear DTCs, bi-directional control, remote diagnosis, live data streaming, coding, etc.

 Optional ADAS calibration capability for calibrating LDW, RCW, AVM, NV, BSD and ACC system with the X-431 ADAS calibration tools.

 Expand diagnostic coverage via “Mall”.

 One-stop Info Center includes vehicle repair information and latest updates.

 Review the previous diagnostic report via the Diagnostic History.

Launch X-431 PRO SE Specification:

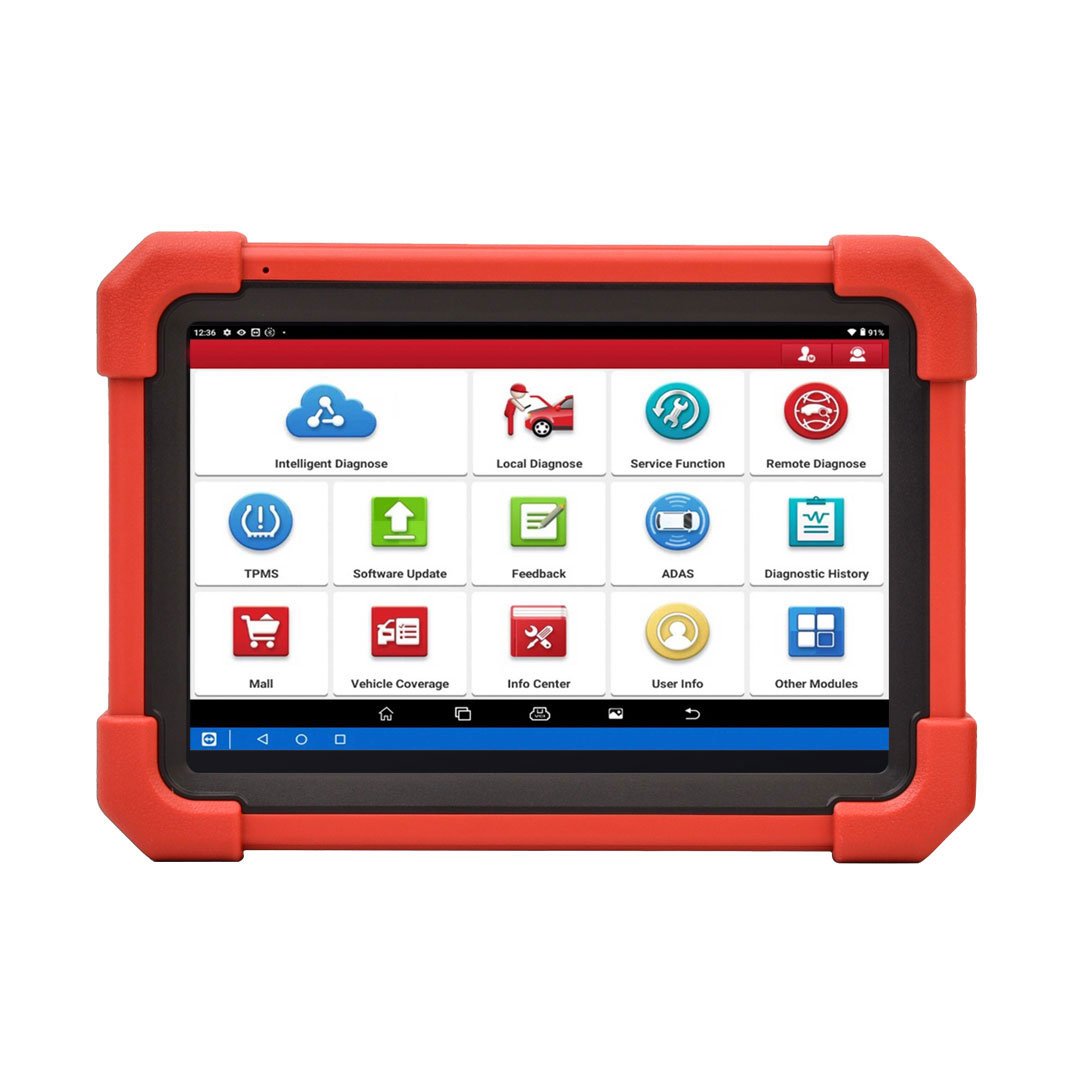

Launch X-431 PRO SE

Operation System

Android 10.0

Display

8", 1280*800

CPU

2.0GHz, Quad-Core

RAM

4GB

Storage

64GB

Battery

47.88Wh (7.6V, 6300mAh)

Camera

Rear 8MP

WiFi

Bluetooth/USB

Dimension

234*166*39.5 mm

Interface

TYPE A*1 & TYPE C*1

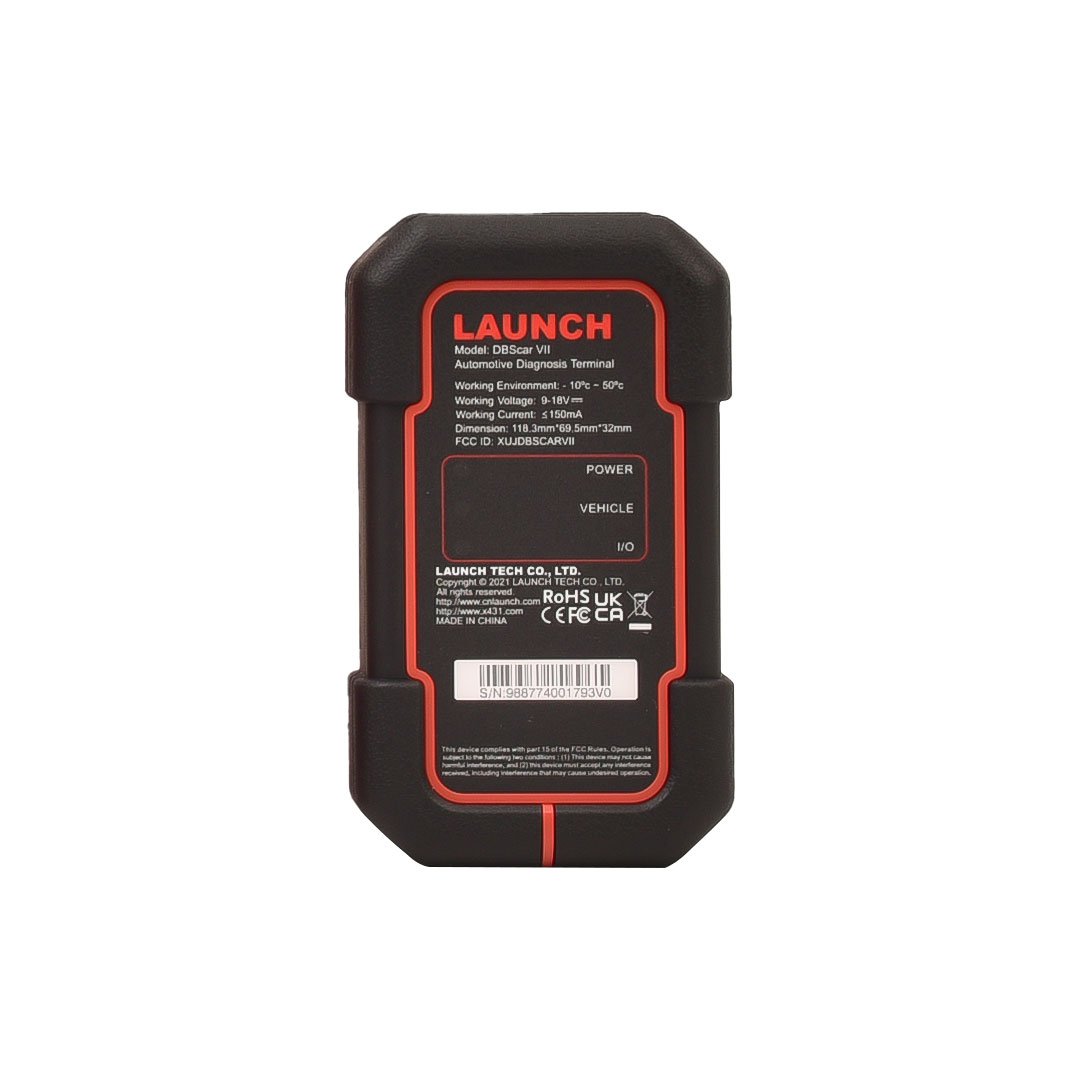

Launch DBScar VII

Working Voltage
9V DC∼18V DC

Communicaiton Type
Bluetooth

Interface
DB15 Diagnostic

Working Temperature
-10∼15°C

Dimension
118.3*69.5*32 mm


Comparison chart for X-431 PRO series

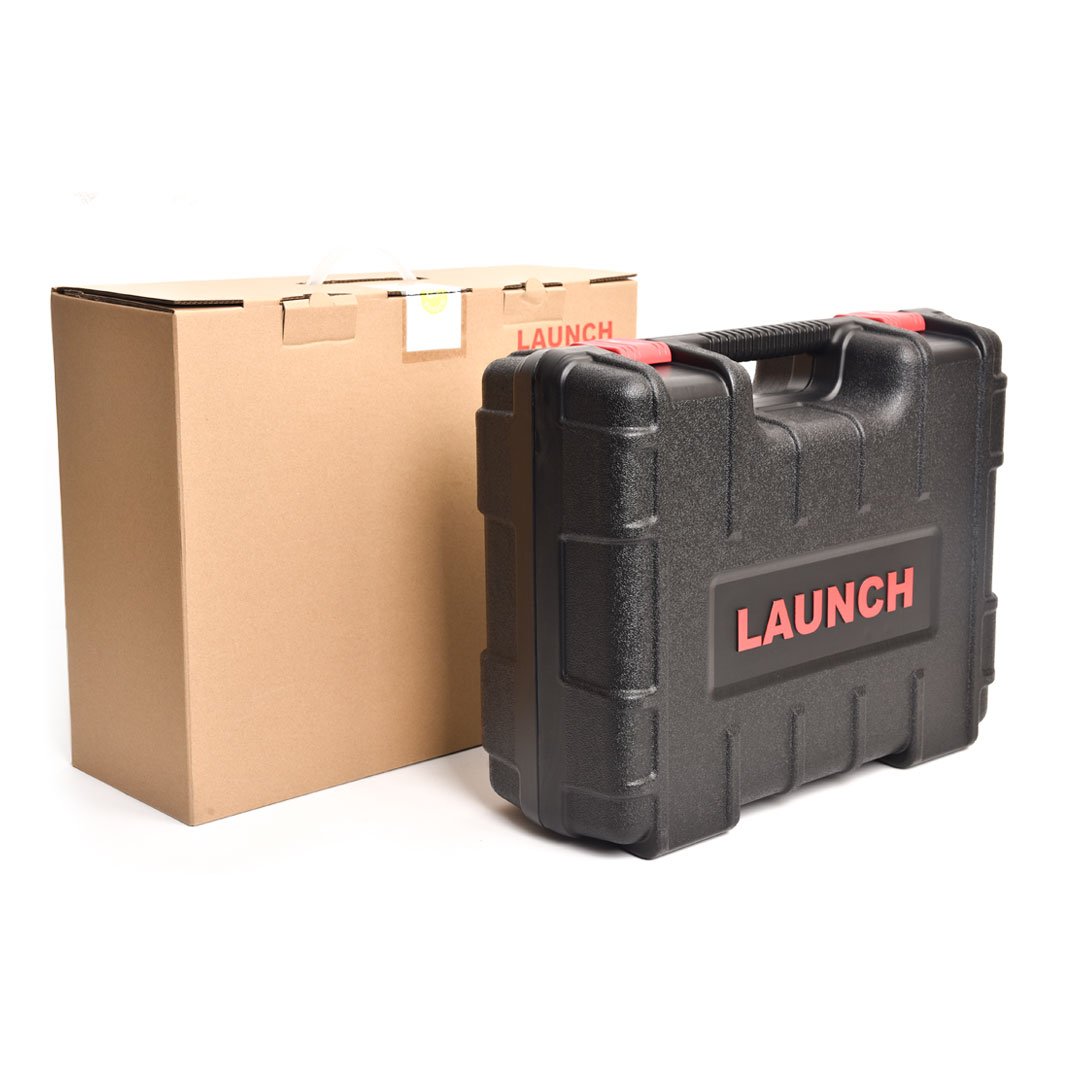

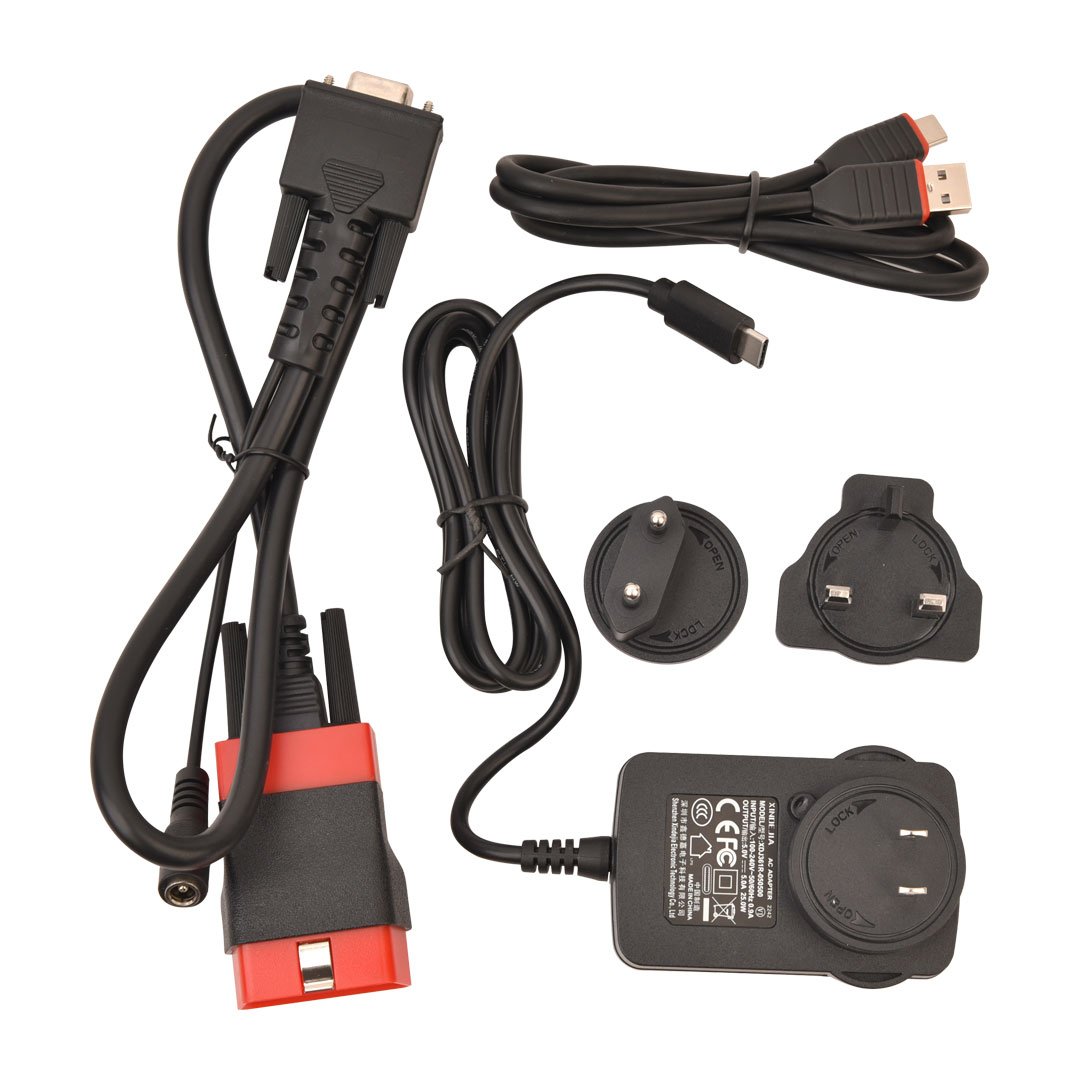

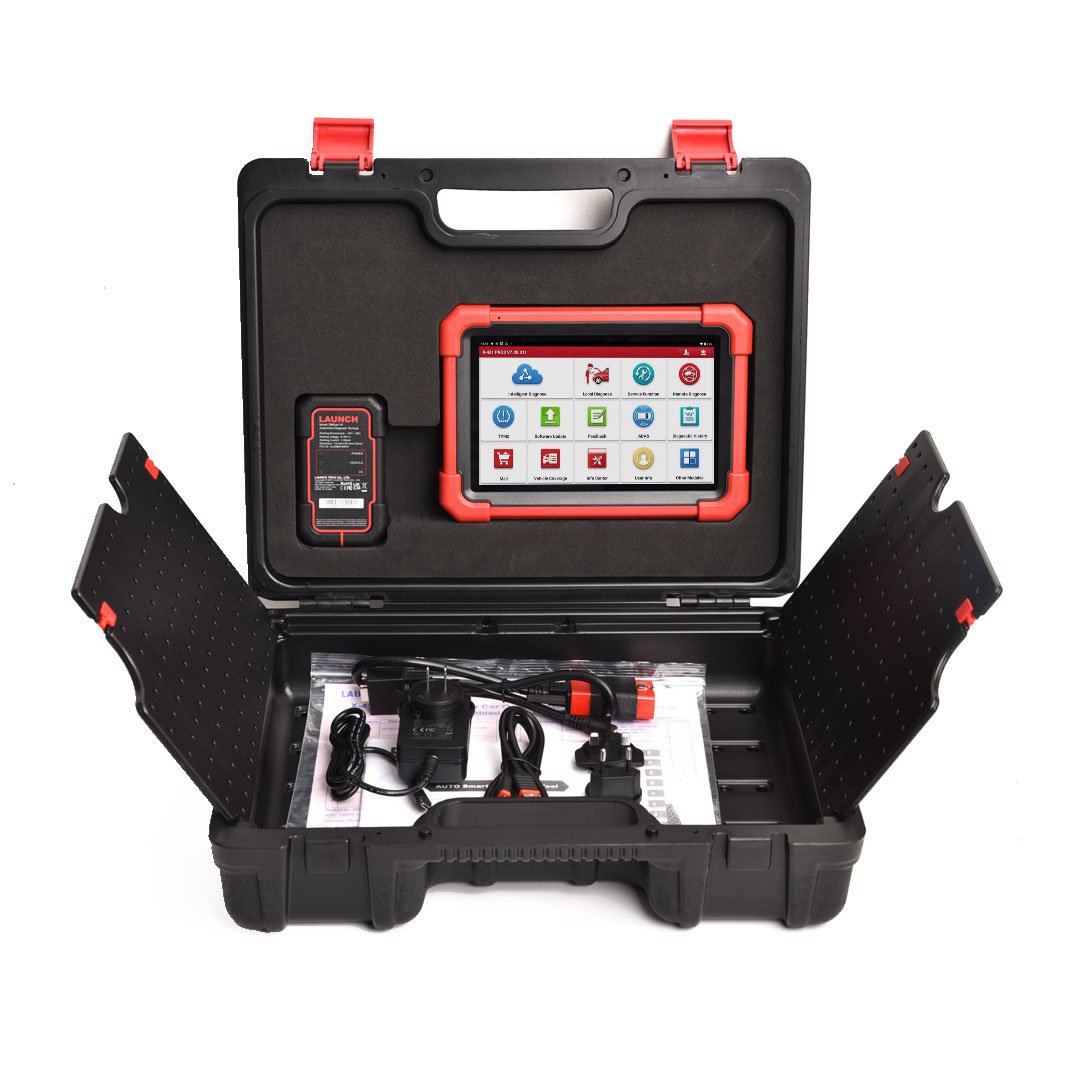

Launch X-431 PRO SE Package:
