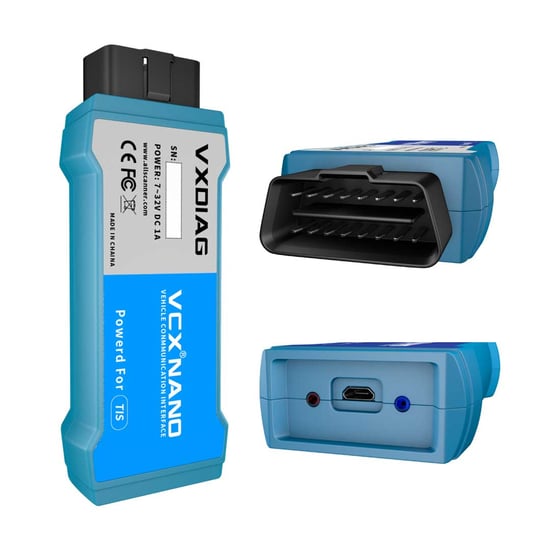

New ALLScanner VCX NANO for Toyota USB / WIFI / PW880 / TIS Diagnostic Tool WIFI Version

VCX NANO is a standardized VCI vehicle diagnostic interface based on SAE-J2534 and ISO-22900 PDU international standard design. It is compatible with most vehicle communication protocols and features a compact design with ultra-high cost performance.

VCX NANO is widely used for ECU online diagnosis and programming by vehicle manufacturers. It also supports third-party and original diagnostic software.

Original Diagnostic Functions:

• Original factory-level diagnostic functions for supported brand models
• Can replace expensive OEM diagnostic equipment
• Advanced diagnostic functions consistent with original factory tools
• One-click installation with official drivers and online upgrades

Automotive Industry Standard Design:

• SAE-J2534-1 / J2534-2 Pass-Thru with EURO 5
• ISO-22900 MVCI & D-PDU
• Original factory-level ECU programming functions

PC Communication Interface:

• USB 2.0 high-speed wired connection
• 802.11b/g/n WIFI wireless connection
• Automatic firmware detection and upgrade via PC management tool

High Performance Vehicle Diagnostic Interface:

• High-speed processor for stable and fast communication
• Supports standardized and private vehicle bus protocols
• Supports up to 4 CAN channels (3 high-speed CAN + 1 single-line CAN)
• Supports simultaneous multi-channel operation
• Programming voltage output: 5V ~ 20V FEPS
• Compact integrated OBD-II interface for direct vehicle connection

Hardware Specifications:

• Protocol Processor: 32-bit 180MHz ARM, 1MB FLASH
• Diagnostic Interface: SAE-J1962 OBD-II
• Wired Interface (PC): USB Micro-B
• Wireless Interface (PC): WLAN 802.11 b/g/n
• Indicator Lights: 2 LEDs (Red: Device Status, Blue: Communication)
• Power Supply: DC 9V–36V (12V / 24V compatible)
• Power Consumption: 1W
• Size: 140 × 50 × 25 mm
• Weight: Device 0.3 kg, Package 0.8 kg
• Shell: Reinforced plastic
• Working Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Certification: CE (EU), FCC (US)

Supported Vehicle Bus Protocols:

• ISO-9141 K-Line
• ISO-14230 K-Line
• ISO-15765 CAN
• SAE-J1850 VPW (GM Class 2)
• SAE-J1850 PWM (Ford SCP)
• SAE-J2411 SWCAN (GMLAN)
• VAG TP20 CAN (SAE-J2819)
• VAG TP16 CAN
• VAG KW81 (SAE-J2818)

Vehicle Coverage:

Supports Toyota vehicles using TIS diagnostic software, compatible with SAE J2534.

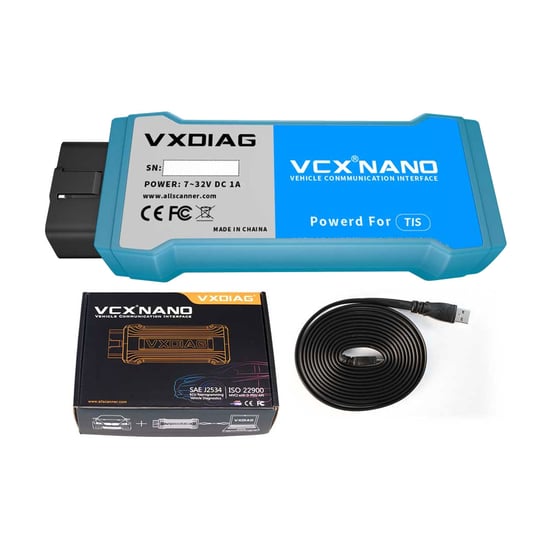

Package List:

• 1 × ALLScanner VCX NANO Diagnostic Interface for Toyota
• 1 × USB Cable
