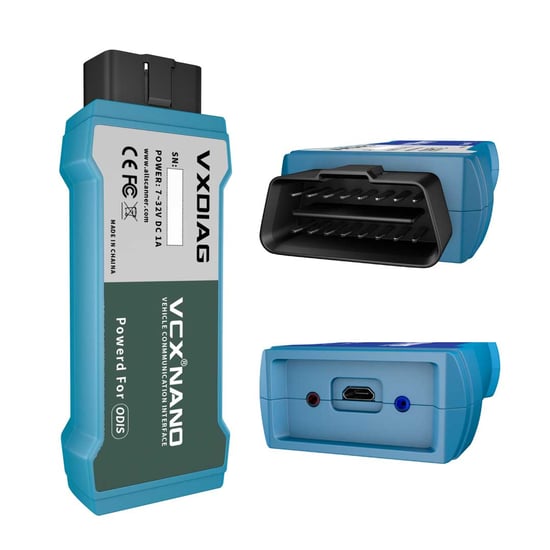

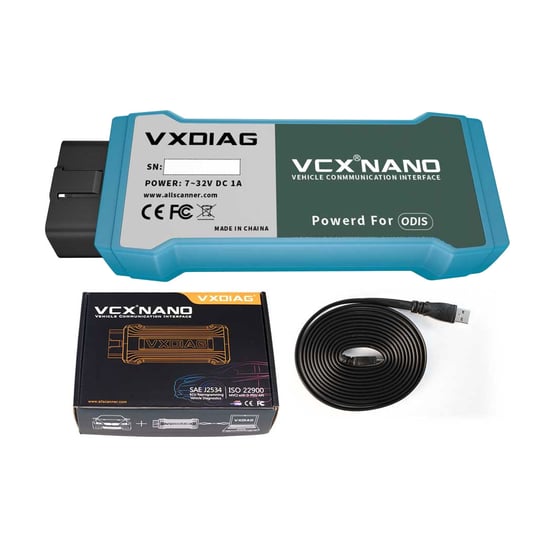

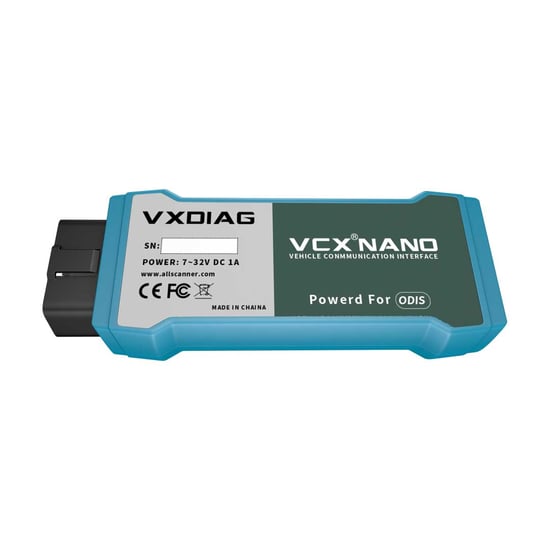

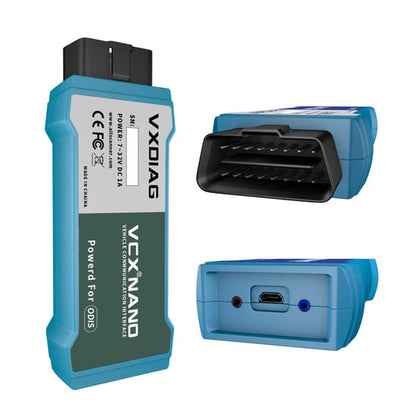

ALLScanner VCX NANO for Volkswagen USB / WIFI PW890 ODIS Diagnostic Tool

Product Description:
New ALLScanner VCX NANO for Volkswagen USB / WIFI PW890 ODIS Diagnostic Tool Support UDS Protocol
Diagnostic Tools From ALLScanner with Product Number: MK17805
This Weight Product: 250g
Specs:
Manufacturer: ALLScanner
Condition: New

Vcx-nano is a standardized VCI vehicle diagnostic interface, based on sae-j2534 and iso-22900 PDU international standard design, compatible with most of the vehicle communication protocols, compact design, is an ultra-high cost performance of the original diagnostic interface. VCX nano is widely used in ECU online diagnosis and programming by vehicle manufacturers. It also supports third-party and original diagnostic software.


Original diagnostic functions

The original factory level diagnostic function for various brand models supported, can replace expensive OEM equipment.
All kinds of advanced diagnostic functions are completely consistent with the original factory, and the performance even exceeds the original factory.
One click installation, original support driver and online upgrade, easy to use.

Meet the automotive industry standard design

SAE-J2534-1/2 Pass-Thru with EURO 5
ISO-22900 MVCI & D-PDU
J2534 original factory level ECU programming functions.

PC communication interface

Support USB2.0 high speed connection
Support 802.11b Wi Fi wireless connection
The PC configuration management tool provided automatically detects connections and updates firmware.

High performance vehicle diagnostic interface

Vcx-nano with high speed processor is a high performance vehicle network interface.
It can support most standardized and original private vehicle bus protocols.
It can support up to 4-way can: 3-way high-speed can and single line can.
Support multi-channel work at the same time, for example: support 2-wire can or K-wire work at the same time.
Support programming voltage output: 5V ~ 20V FEPS output (Ford)
Compact design of integrated OBD-II interface can be connected directly with vehicle.

Hardware specifications

Protocol processor   32bit 180MHz ARM
                                  1MB FLASH

Diagnostic interface   SAE-J1962 standard, OBD-II diagnostic interface

Wired interface (PC)    USB Micro-B interface

Wireless interface (PC)   WLAN 802.11 b/g/n wireless network (Optional)

Indicator lights   2 LEDs, Red: device status, Blue: communication status.

Power supply   Vehicle power supply: DC 9v-36v (compatible with 12V and 24V)

Power   1W

Size   L x W x H = 140 x 50 x 25 (mm)

Weight   Equipment weight: 0.3KG, Product + package weight: 0.8kg

Shell   Reinforced plastic shell

Working temperature   -20～+70 °C

Storage temperature   -40～+85 °C

Standard certification   Comply with EU CE and US FCC

Supported vehicle bus protocols

ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
SAE-J1850-VPW (GM Class2)
SAE-J1850-PWM (FORD SCP)
SAE-J2411 SWCAN (GMLAN)
VAG TP20 CAN (SAE-J2819)
VAG TP16 CAN
VAG KW81 (SAE J2818)
