Product Description:

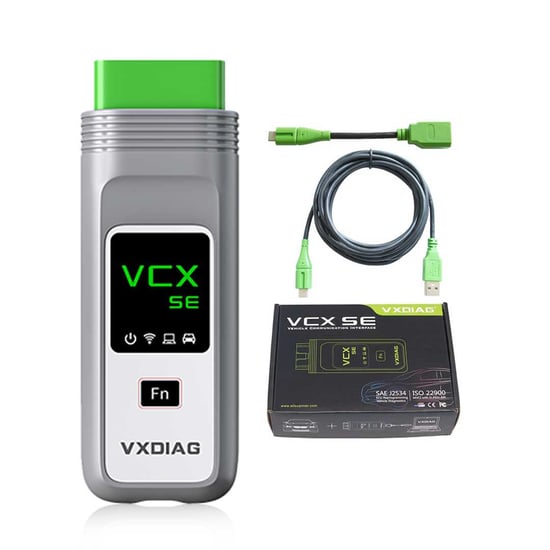

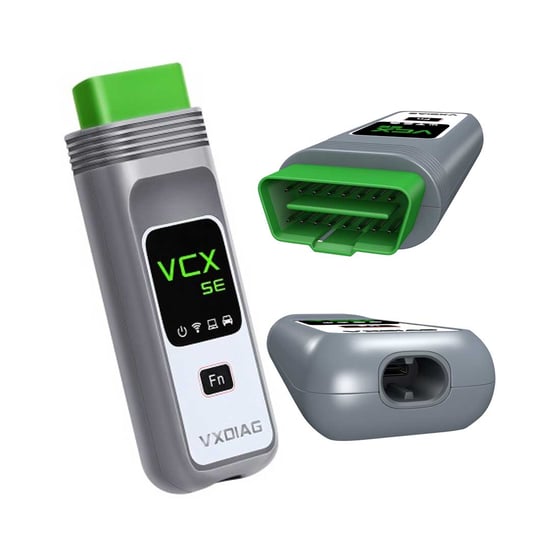

New ALLScanner VCX SE Without Licenses Diagnostic Tool Full Brands Diagnosis JLR Honda GM VW Ford Mazda Toyota Subaru Volvo BMW Benz

Vcx-se is the latest generation of diagnostic equipment launched by Allscanner for remote diagnosis platform. The ultra-high integrated hardware design can fully adapt to a variety of original diagnostic software, not only support local diagnosis, but also realize super remote diagnosis.

Dual mode intelligent remote diagnosis

• Super remote diagnosis only needs equipment networking to realize on-line diagnosis of the original factory
• Compatible with remote diagnosis, it can support remote diagnosis of various special function equipment
• The equipment can quickly access to the remote diagnosis platform with one key

One device supports many original vehicle diagnostic softwares

• The hardware is updated synchronously with the VCI of the major original factories, and it fully supports the new models and new original software based on doip Ethernet diagnosis
• Realize the original factory level diagnosis function of the world’s major brands, one equipment can replace many expensive OEM equipments
• All kinds of advanced diagnosis and programming functions are completely consistent with the original factories, and the performance even exceeds the original factories
• One click installation, original support driver and online upgrade, easy to use

Highly integrated vehicle diagnostic interface

• High performance dual core processor: a doip network processor and a vehicle bus processor
• Support 4-way can bus, 2-way K-line / L-line, realize multi protocol high-speed concurrent communication
• Innovative OBD-II multi-channel communication hardware supports intelligent switching between traditional bus and doip network
• It supports mapping vehicle doip Ethernet to WLAN to realize wireless Ethernet diagnosis
• Host communication interface supports USB / RJ45 / WLAN and other interfaces, which is flexible and easy to use
• Portable design with integrated OBD-II interface, plug and play
• The usb-type-c interface with reinforcement design can be plugged in and out stably

Meet the automotive industry standard design

• SAE-J2534-1/2 Pass-Thru with EURO 5
• ISO-22900 MVCI & D-PDU
• ISO-13400 DoIP

J2534 original factory level ECU programming functions

• ECU software upgrade and calibration
• ECU replacement, flashing and programming

Hardware specifications

Supported vehicle bus protocols

• ISO-13400 DoIP
• ISO-9141 K-Line
• ISO-14230 K-Line
• ISO-17987 LIN BUS
• ISO-15765 CAN
• SAE-J1850-VPW (GM Class2)
• SAE-J1850-PWM (FORD SCP)
• ISO-11898-2 DWCAN
• ISO-11898-3 DWFTCAN
• SAE-J2411 SWCAN (GMLAN)
• VAG TP20 CAN (SAE-J2819)
• VAG TP16 CAN
• VAG KW81 (SAE J2818)
• SAE-J2610 SCI (Chrysler)
• SAE-J1567 CCD BUS (Chrysler)
• SAE-J2740 GM ALDL
• SAE-J2809 HONDA DIAG-H
• NISSAN DDL UART with CLOCK
• BMW DS2
• FORD UBP
• BENZ KWFB
• BENZ MB-ISO
