Autel MaxiSys MS908S Pro Diagnostic Tool & MaxiVideo MV480 Videoscope Device
Product Description:

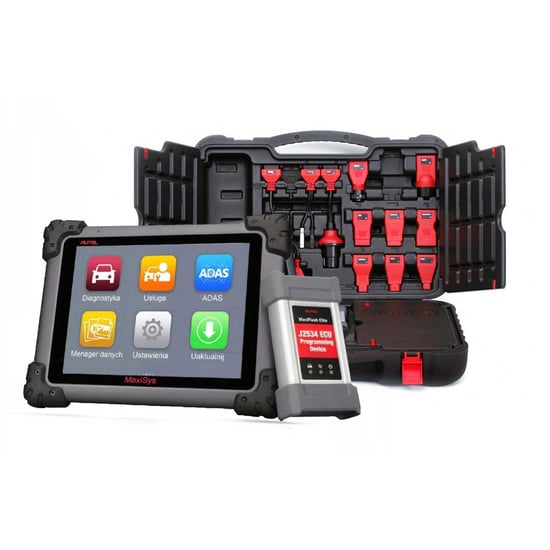

This bundle includes the Autel MaxiSys MS908S Pro professional diagnostic tablet and the Autel MaxiVideo MV480 digital inspection videoscope. The MS908S Pro provides advanced ECU diagnostics, coding and J2534 ECU programming, while the MV480 allows visual inspection of hard-to-reach areas such as engine cylinders, wiring, and internal mechanical components.
General Information:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
Autel MaxiSys MS908S Pro Key Features:
- All-system diagnostics and active tests
- 30+ service functions
- Advanced ECU Coding
- J2534 ECU Programming for BMW & Mercedes-Benz
- Bi-directional control
- 80+ vehicle brand coverage
- Wireless VCI communication
- Cloud Data Manager and Remote Support
- Key programming capability (limited compatibility)
Service Functions:
- Oil Reset
- EPB Reset
- DPF Regeneration
- Battery Registration
- Injector Coding
- Steering Angle Calibration
- ABS/SRS Reset
- Throttle Matching
- Suspension Calibration
- Key Programming (select vehicles)
Supported Protocols:
- ISO9141-2
- ISO14230-2
- ISO15765-4 CAN
- SAE-J1850 PWM/VPW
- SAE J1939 / J1708
- K-Line / L-Line
Autel MS908S Pro Specifications:
| Operating System |
Android 4.4.2 KitKat |
| Processor |
Samsung Exynos Six-core (1.3GHz Cortex-A7 + 1.7GHz Cortex-A15) |
| Memory |
2GB RAM & 64GB Storage |
| Display |
9.7 inch LED Touchscreen |
| Connectivity |
WiFi 802.11 a/b/g/n/ac USB 2.0 Bluetooth 2.1 + EDR SD Card up to 32GB HDMI |
| Camera |
8MP Rear Camera |
| Battery |
11000 mAh Lithium-Polymer |
| Input Voltage |
12V (9-24V) |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Dimensions |
300 × 220 × 50 mm |

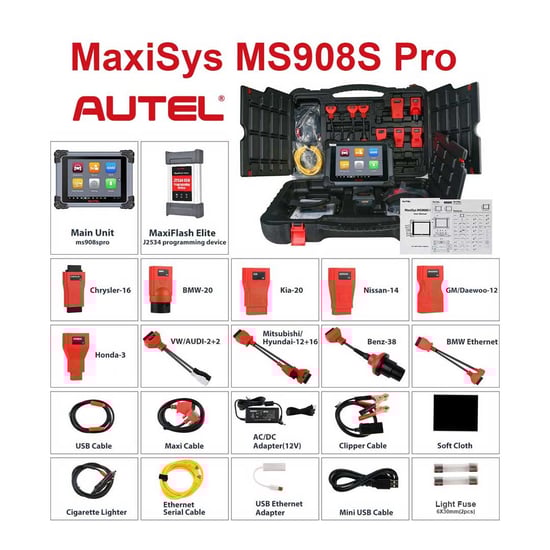

MS908S Pro Package Includes:
- MaxiSys MS908S Pro Tablet
- J2534 ECU Programming Device
- BMW Ethernet Cable
- Main Cable
- USB Cable
- AC/DC Power Adapter
- OBD Adapter Kit
- Carrying Case

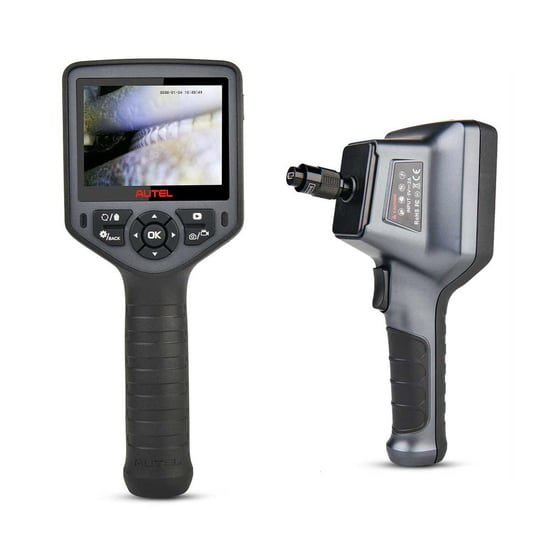

Autel MaxiVideo MV480 Digital Inspection Videoscope
Description:
The Autel MaxiVideo MV480 is a professional inspection camera designed for viewing difficult-to-reach areas. It features dual cameras, high-resolution 1080P recording, adjustable LED lighting and a flexible waterproof cable, making it ideal for automotive, mechanical and industrial inspections.
Key Features:
- Dual front and side cameras
- 1920×1080 HD recording
- 4.1" full-color LCD display
- Adjustable LED illumination
- 1m waterproof flexible cable
- 7x digital zoom
- Micro SD storage support
- 4-hour battery operation
Autel MaxiVideo MV480 Specifications:
| Display |
4.1" TFT LCD (1200×720) |
| Camera Resolution |
1920×1080 |
| Probe Diameter |
8.5 mm |
| Cable Length |
1 meter waterproof cable |
| Battery |
2600 mAh rechargeable lithium-ion |
| Battery Life |
Up to 4 hours |
| Storage |
Micro SD card (up to 128GB) |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Weight |
0.422 kg |

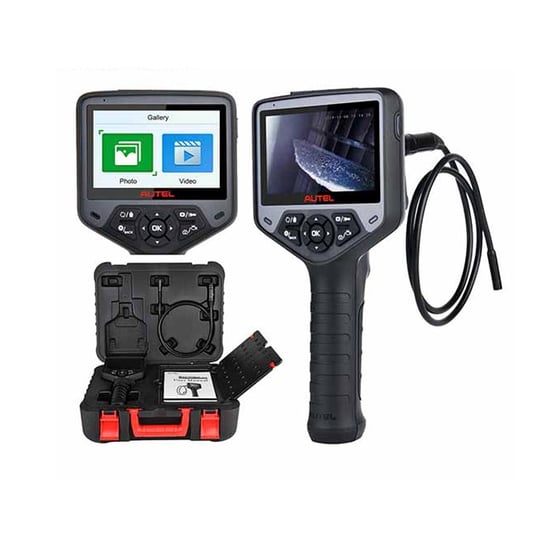

MV480 Package Content:
- MV480 Main Unit
- 8.5mm Camera Probe & Cable
- Magnet & Hook Accessories
- Micro SD Card
- Charger
- Mini USB Cable
- RS232 Serial Cable
- User Manual
- Carrying Case
