Autel MS908S PRO II Auto Diagnostic Tool with J2534 ECU Programming Coding
Product Description:

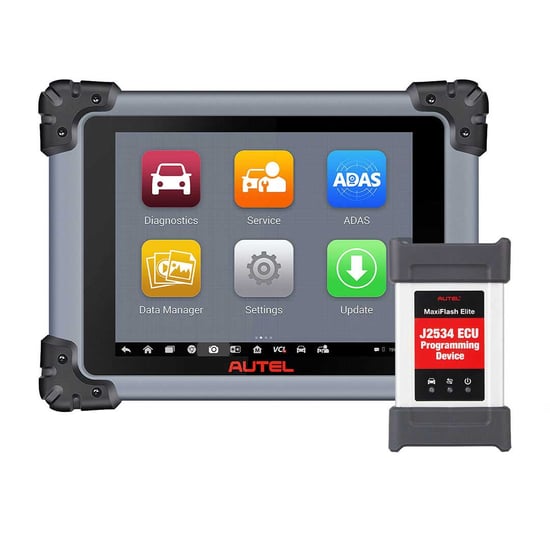

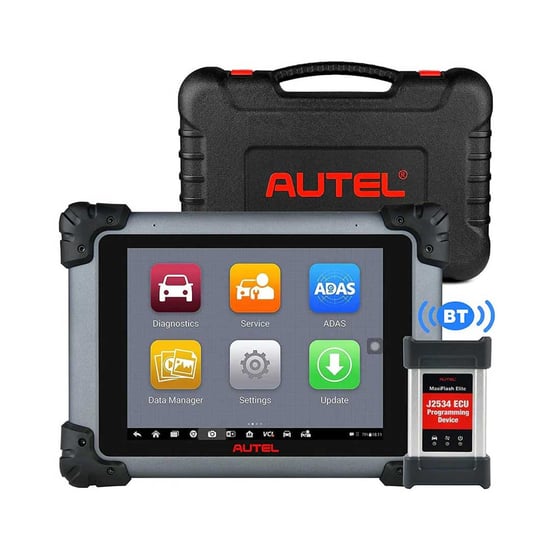

The Autel MaxiSYS MS908S Pro II is an advanced professional automotive diagnostic tablet powered by a Qualcomm 660 octa-core processor and Android 10 operating system. It includes the Bluetooth-enabled MaxiFlash VCI/J2534 pass-thru programming device and provides complete system diagnostics, ECU coding, bi-directional active tests, adaptations and live data graphing for US, Asian and European vehicles (1996 and newer).
General Information:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
Main Features:
- Qualcomm 660 Octa-core processor
- 9.7-inch Wi-Fi touchscreen tablet
- Android 10 operating system

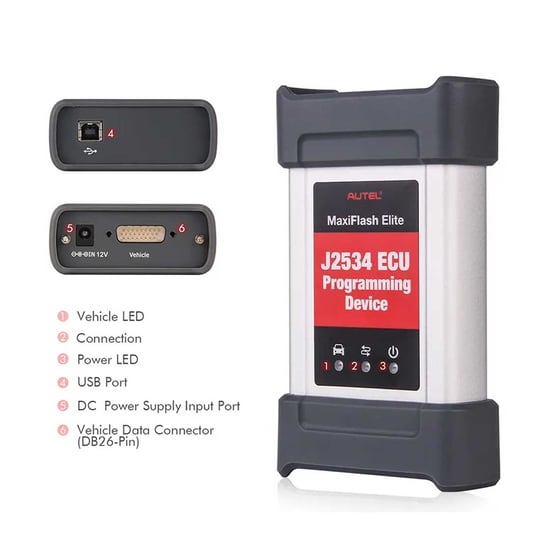

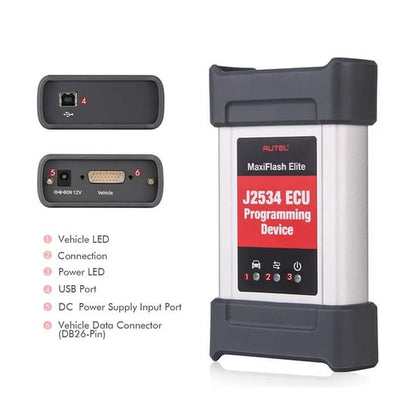

- Bluetooth MaxiFlash J2534 pass-thru VCI (wireless range up to 70m)
- Bi-directional active tests
- ECU Coding and Adaptations
- Read & erase codes on all systems
- Live data graphing & freeze frame data
- 128GB storage memory
- Rechargeable lithium battery (up to 7.5 hours)
- Extensive vehicle coverage
Service Capabilities:
- All System Diagnostics
- ECU Coding
- J2534 ECU Programming
- Active Tests
- Adaptation & Matching
- Live Data Monitoring
- Freeze Frame Data
Autel MaxiSYS MS908S Pro II Specifications:
| Operating System | Android 7.0 / Android 10 Platform |
| Processor | Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Storage |
| Display | 9.7 inch LED capacitive touchscreen (2048 × 1536) |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) USB 2.0 (2 Type-A ports + Mini USB) Bluetooth V5.0 + BR/EDR SD Card (up to 64GB) HDMI |
| Camera | 16MP Rear Camera with Autofocus & Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Audio | Microphone, Dual Speakers, 3.5mm Headset Jack |
| Battery | 11000 mAh 3.7V Lithium-Polymer |
| Charging | 12V AC/DC Power Supply (0°C – 45°C) |
| Input Voltage | 12V (9-24V) |
| Power Consumption | 6.5W |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 300 × 220 × 50 mm |
| Weight | NW: 1.42 kg |
| Protocols | ISO9141-2, ISO14230-2, ISO15765-4, K/L Line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO11898 (HS/MS/LS/Single-Wire), GM UART, Honda Diag-H, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
Vehicle Coverage:
- US, Asian and European vehicles
- 80+ brands including BMW, Mercedes-Benz, Audi, VW, Toyota, Honda, Nissan, Hyundai, Kia, Ford, GM, Chrysler and more
- Full OE-level system diagnostics
Additional Functions:
- Remote Desk Support
- MaxiFix Cloud Repair Database
- Shop Manager
- Digital Inspection Camera Support (MV105/MV108)
- Oscilloscope Support (MP408)

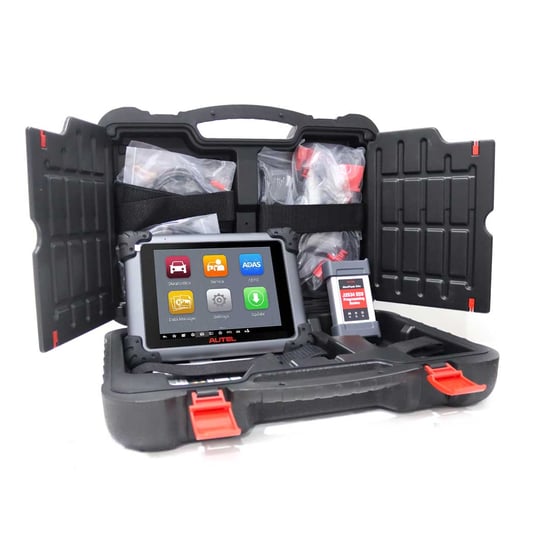

Package Includes:
- MaxiSYS MS908S Pro II Tablet
- MaxiFlash J2534 VCI
- Main Diagnostic Cable
- OBD Adapter Set
- USB Cable
- AC/DC Power Adapter
- Carrying Case
- User Manual
