OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle & MP001 Multi-Function Programmer

OBDSTAR DC706 ECU Tool Description:
New Bundle OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle & OBDSTAR MP001 Multi-Function Programmer

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU (Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy.

OBDSTAR DC706 ECU Tool Functions

• ECU Clone/ All by OBD or Bench
• ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
• ECM clone for motorcycles (Bosch, Delphi, EFI...)
• TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
• Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)

OBDSTAR DC706 ECU Tool Supported ECU Manufacturers

• ALPS
• Autoliv
• Bosch
• Continental
• Delphi
• Denso
• Johnson Controls
• Lear
• Magneti Marelli
• Siemens
• Temic
• Valeo

OBDSTAR DC706 ECU Tool Supported Brands

Car:

• ASTON MARTIN
• BMW
• FAW
• FCA (ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
• FORD/LINCOLN
• GM/OPEL
• HYUNDAI/KIA
• LAND ROVER/JAGUAR
• LUXGEN
• MASERATI
• MAZDA
• MITSUBISHI
• NISSAN
• OPEL
• PSA
• SMART
• SUBARU
• SUZUKI
• VOLVO
• VW/AUDI/SEAT/SKODA

Motorcycle:

• APRILIA
• BRP
• CFMOTO
• DERBI
• GILERA
• GUZZI
• PEUGEOT
• PIAGGIO
• QJBENELLI
• VESPA

OBDSTAR DC706 ECU Tool Advanced Functions

• R/W eeprom/dflash/pflash/Map, reset ECU (Virgin), calibrate mileage, read IMMO pincode, ECU recovery
• Support 200+ ECM types (Partial functions require P003 adapter)
• Support dozens of TCM types
• Support 100+ body/other ECU types (AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess (RFHUB/RFHM), KVM, RFA, SAM...)
• Support VW DQXXX (TCM) calibrate mileage
• Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
• Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
• Support Piaggio series engine ECU clone (such as MIU G4 (M4G1))
• Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
• Support automatic identification
• Strong help data files
• All by OBD or Bench mode

OBDSTAR DC706 ECU Tool Different Configurations

• DC706_EN_A – ECM
• DC706_EN_B – TCM
• DC706_EN_C – BODY
• DC706_EN_D – ECM + TCM
• DC706_EN_E – ECM + BODY
• DC706_EN_F – TCM + BODY
• DC706_EN_FULL – ECM + TCM + BODY

OBDSTAR DC706 ECU Tool Specifications:

• Operation system: Android 5.1.1
• CPU: RK3128 quad-core ARM cortex A7
• Battery: 3700mA, rechargeable polymer lithium battery
• Extension memory card: 32G micro SD (TF) card supported
• Storage capacity: 16GB
• LCD: 7.0 inch
• LCD resolution: 1024*600
• Touch screen: Capacitive touch screen
• Wifi: Supported
• Working temperature: -20℃~55℃ (14℉~131℉)
• Storage temperature: -20℃~70℃ (-4℉~158℉)
• Weight: About 1.3kg
• Dimension: 243mm*148mm*36mm

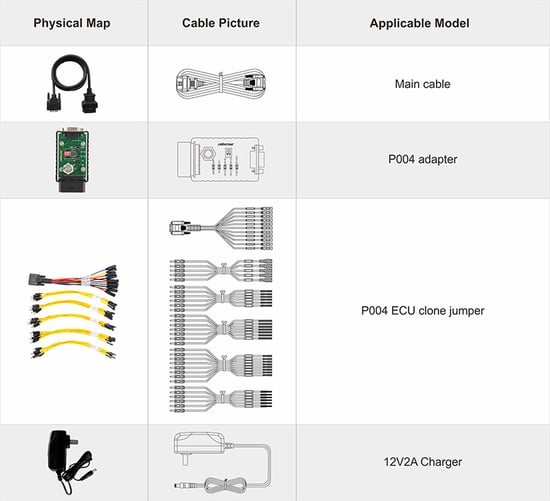

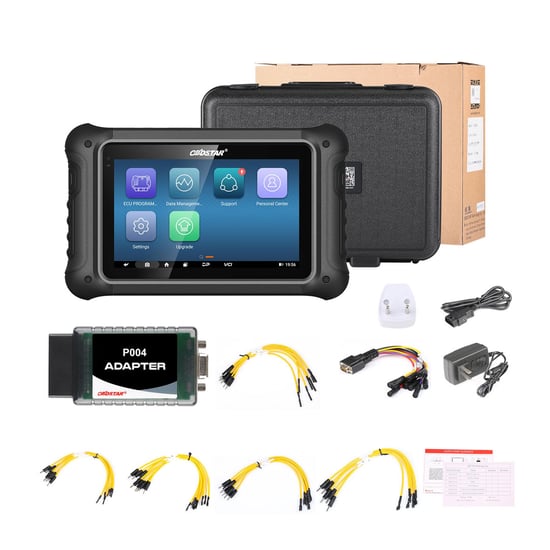

OBDSTAR DC706 ECU Tool Package Includes:

• 1pc x DC706 Main Unit
• 1pc x main cable
• 1pc x P004 adapter
• 1pc x P004 ECU clone jumper
• 1pc x 12V2A charger

OBDSTAR MP001 Multi-Function Programmer Software Functions

• EEPROM/MCU reading and writing
• Key flashing
• Steering angle repair
• Body computer data processing
• Immo off
• Pincode reading
• Battery module repair
• Instrument repair

OBDSTAR MP001 Multi-Function Programmer Features

• MP001 covers P003+ and has more SIMOS18 support
• MP001 can replace P003, P002 and P001 adapter
• Up to 12 IO ports for future ECM requirements

MP001 Specifications

• CPU: STM32F407VET6
• Connector: DC, OBD female, OBD male, DB9, DB25
• Input voltage: DC 12V/24V
• Output voltage: 500mA
• Weight: 260g
• Working temperature: -10℃~55℃
• Device Size: 165*110*35mm

MP001 Package List:

• 1pc x OBDSTAR MP001 Programmer
• 1pc x OBDSTAR C4-01 Host
• 1pc x W004 EEPROM and MCU Adapter
• 1pc x W005 EEPROM and MCU Adapter
• 1pc x W006 EEPROM and MCU Adapter
