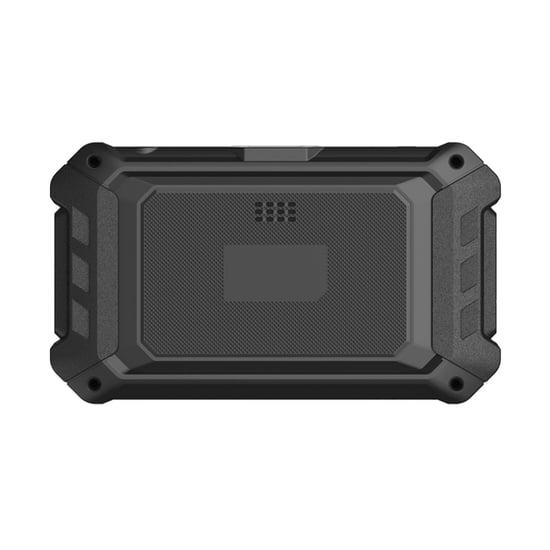

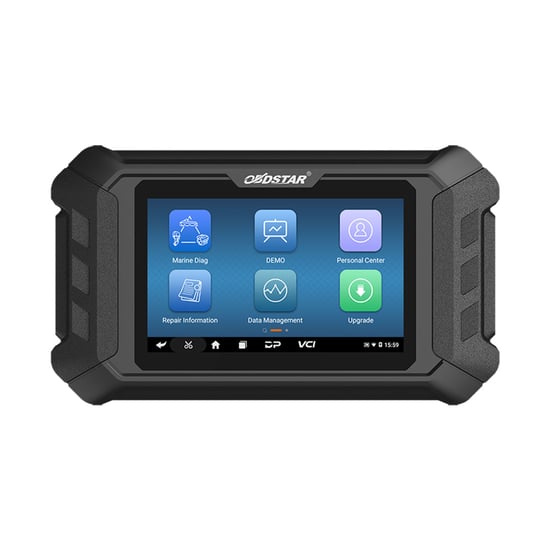

OBDSTAR MS70 Motorcycle Diagnostic Scanner
OBDSTAR MS70 Motorcycle Diagnostic Scanner Description:
OBDSTAR MS70 Motorcycle Diagnostic Scanner is a new generation intelligent motorcycle diagnostic device. It provides complete diagnostic functions including fault code reading and clearing, data stream reading, action tests, settings and coding for various motorcycle models.
OBDSTAR MS70 is based on an RK3128 Quad-Core processor which provides fast and smooth performance. It is equipped with a 7-inch capacitive touch screen for sensitive and accurate touch operation. Working with the Moto Special Kit, it supports Moto IMMO, Odometer recalibration and ECU programming. ECU tuning and remap functions will be available in future updates.
OBDSTAR MS70 Motorcycle Diagnostic Scanner Functions:
- Android 5.1.1 operating system
- Simple and intuitive menu guidance for easy operation
- Complete diagnostic functions including code reading, code clearing, data flow, action test, settings and coding
- Flexible menu selection for faster operation
- Record and playback real-time data streams to quickly locate sensor and component faults
- Wi-Fi connection for one-click software updates
- One-click remote assistance from OBDSTAR technical staff
- Supports diagnosis for most luxury motorcycles and thousands of models worldwide
OBDSTAR MS70 Motorcycle Diagnostic Scanner Advanced Functions:
- First fault guidance, help data and technical bulletins
- Diagnostic socket location and service assistance
- Multiple data stream display modes including text, waveform and instrument diagram
- Automatic scanning and automatic VIN recognition
- Control module programming and coding
- ECU settings and instrument coding
- Tire pressure monitoring system configuration
- Maintenance light reset
- CO adjustment and idle speed adjustment
- A/F value reset
- ABS control unit setting
- EOL mode
- Transmission memory reset
- Clear computer memory
Motorcycle / Snowmobile / ATV / UTV Supported Brands:
Asia:
- AEON
- BAJAJ
- HARTFORD
- HERO
- HONDA
- HYOSUNG
- KAWASAKI
- KYMCO
- PGO
- ROYAL ENFIELD
- SUZUKI
- SYM
- TVS
- YAMAHA
Europe:
- APRILIA
- BENELLI
- BMW
- DERBI
- DUCATI
- GILERA
- HM
- HUSQVARNA
- KTM
- MOTO GUZZI
- PEUGEOT
- PIAGGIO
- ROYAL ALLOY
- TRIUMPH
- VESPA
Americas:
- ACELLERA
- BRP
- HARLEY-DAVIDSON
- INDIAN
China:
- CFMOTO
- CHINA ABS
- CHINA ENGINE
- HAOJUE
- QJBENELLI
- SHINERAY
- ZONTES
OBDSTAR MS70 Motorcycle Diagnostic Scanner Specifications:
| Operation System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex A7 |
| Battery | 3700mA Rechargeable Polymer Lithium Battery |
| Extension Memory Card | 32GB Micro SD (TF) Card Supported |
| Storage Capacity | 16GB |
| LCD | 7.0 Inch |
| LCD Resolution | 1024 × 600 |
| Touch Screen | Capacitive Touch Screen |
| WiFi | Supported |
| Working Temperature | -20°C ~ 55°C (14°F ~ 131°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Weight | About 1.3kg |
| Dimension | 243mm × 148mm × 36mm |
Latest Update:
- V31.50 DUCATI Diagnostic Upgrade – 2023-06-25

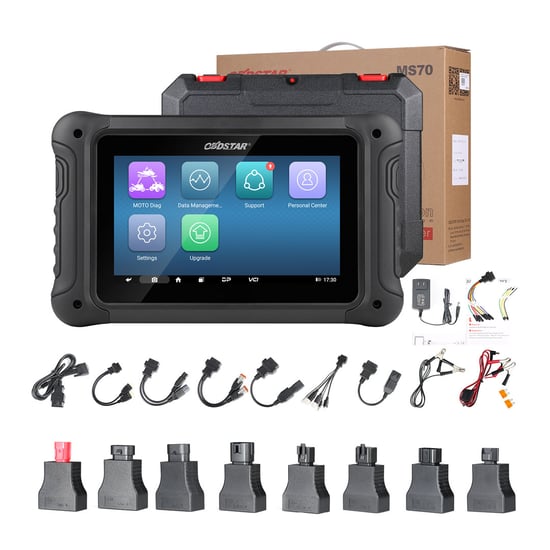

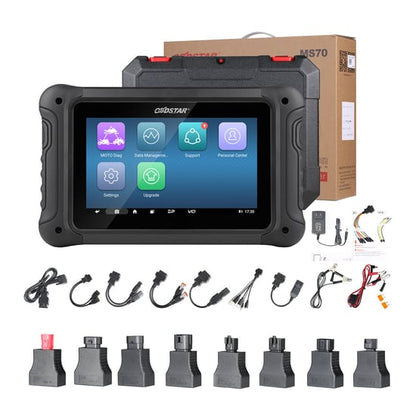

OBDSTAR MS70 Motorcycle Diagnostic Scanner Accessories:
- MS70 Main Unit
- Main Diagnostic Cable
- Motorcycle Adapters
- Power Adapter
- User Manual
