Product Specifications

Manufacturer

ABRITES

Condition

New

Weight

800 g

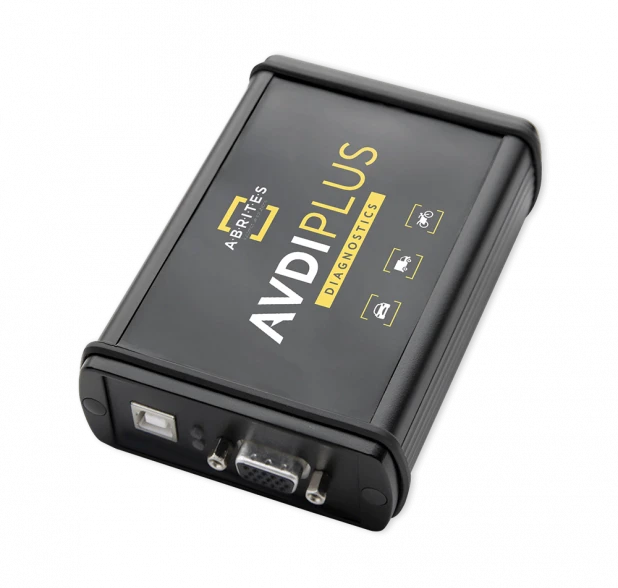

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus )

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus ) Product Description:

Abrites AVDI Plus is an updated hardware version of the well-known Abrites main interface for vehicle diagnostics and programming. It enables faster operation and interfaces like CAN-FD and Ethernet to keep up with changing automotive market, while keeping the legacy interfaces and supporting most of the existing Abrites hardware peripherals.

Key Programming Tools Diagnostic Tools Truck From Abrites with Product Number: MKON528

This Weight Product: 800g

What’s new in the AVDI Plus version of the hardware?

AVDI Plus is the next generation Abrites Vehicle Diagnostics Interface, which is enhanced with more connectivity options: CAN-FD and ENET. This allows for communication with newer vehicles, manufactured after 2018. Apart from that, the device is more durable and with improved design. Your new AVDI contains the essential functionalities the previous version also has, but Plus works smoother and faster.

One of the big improvements is that you can now work on multiple communication channels simultaneously (CAN, K-Line, CAN-FD, Ethernet), which makes your tasks even easier.

AVDI is your all-in-one diagnostic solution—powerful, reliable, and ready for any challenge.

The ABRITES Vehicle Diagnostic Interface (AVDI) is the latest-generation diagnostic tool developed by Abrites Ltd. It serves as the core platform for the entire ABRITES ecosystem and supports a wide range of vehicles—including cars, motorcycles, vans, trucks, ATVs, watercraft, and heavy-duty machinery (agricultural, marine, and more).

AVDI is exceptionally versatile, offering diagnostic capabilities for nearly all vehicle brands on the market. It supports both standard and advanced diagnostics, along with complex procedures such as key programming, ECU programming, module replacement, and instrument cluster calibration.

One of AVDI’s most powerful features is its integrated PassThru driver (J2534), which allows seamless use with third-party software when required. Fully compliant with SAE international standards, it enables access to third-party software by emulating various interface units—eliminating the need for additional tools and reducing both time and cost.

AVDI offers compatibility with major automotive manufacturers including Volkswagen, Audi, Skoda, Porsche, Lamborghini (VAG group), Mercedes-Benz (cars, trucks, and buses), Smart, BMW, Mini, Rolls-Royce, Toyota, Lexus, Peugeot, Citroën, Renault, Dacia, and many more. It also supports heavy-duty, agricultural, marine, and recreational vehicles through J1939 protocol compliance.

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus ) Standard diagnostics:

Full vehicle scan – scan cars, vans, trucks, and heavy-duty vehicles with one click

Module identification – AVDI reads and identifies all available modules in the vehicle and the data they store, e.g. VIN and part numbers (where applicable)

Reading and clearing diagnostic trouble codes (DTCs), a.k.a. faults

Live values display – get live data information from the sensors in the vehicle in real time, e.g. temperature, RPMs, and more

Actuator testing – identify any possible issues in the car by performing actuator tests

Coding operations

More functionalities in the essential software:

(where applicable)

Module adaptation

Reset/renewal of second-hand modules

Key and transponder programming

Instrument cluster calibration

Airbag renewal

Change software version of modules (updates)

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus ) Advanced diagnostics:

(brand-specific)

Calibrations

Configuration settings

Coding options

Diagnostic channel adaptations

Guided functions

Hundreds more

AVDI is your gateway to professional vehicle diagnostics. It is compatible with more than 40 automotive brands, offering your workshop a wide range of opportunities.

Key and transponder programming: in ALL KEYS LOST situations and spare key addition

Cluster calibration: dashboard calibration for replacement and retrofitting purposes

Module reset: renew second-hand units to use as replacement of faulty ones

Module adaptation: adapting new and used modules in various types of vehicles

ECU-related procedures: working with a vast array of Engine Control Units (reading and writing data)

In some cases AVDI may require additional hardware, such as cables, adapters and programmers in order to complete a task. Find the most needed hardware below:

PROTAG Key and Transponder Programmer (ZN003)

ABPROG (ZN030)

RH850/V850 Programmer (ZN085)

Distribution Box Set (ZN151)

Basic User Diagnostic Software

BR002 - VCINPL B.U.D.S

BIKES

BK002 Advanced bike diagnostics, BMW bikes key programming

BMW

BN007 - EBridge tool

CHRYSLER

CR007 - Engine Control Unit Flash Manager

Read/write Data Flash and Program Flash for EDC15C2 and EDC16CP31 ECUs

DAF

DF002 - Key Programming

ECUPROG

EP001 - Bosch EDC17/MED17, Delphi, SIMxx

EP003 - ECU and TCU Manager

FIAT/LANCIA/ALFA ROMEO

FN007 - Transponder Maker

FN008 - Key Learning

FN011 - BCM Read/Update

FN012 - BCM and Key Manager

FN013 - Instrument Cluster Data Manager

FN014 - Engine Control Unit Flash Manager

FN017 - PIN and Key Manager for FCA vehicles

FORD

FR005 - Instrument Cluster Module Recalibration

FR008 – Key Manager, Advanced Diagnostic Functionality

FR009 – Airbag

Airbag clear crash data and renew - RCM module with the following processor: XC23xx data flash for FORD/Mazda/JLR and Volvo, as well as TMS470 + EEPROM 25320/25640 for Ford/JLR

MAZDA

MZ001 - Key programming for Mazda 3/CX-30 2020+

MZ002 - PATS initialization for Mazda 3/CX-30 2020+

HYUNDAI/KIA

HK007 - Instrument Cluster, Engine Control Data Manager

JLR

JL002 - Key Learning

JL003 - Cluster Calibration

JL004 - Key Learning (DPLA, FK72, HPLA)

JL005 - Key learning (2018-2020)

MERCEDES/MAYBACH/SMART

Mercedes Online- CPC modifications by OBDII - VMAX limiter removal/ Exhaust flaps adjustment/ Torque limiter adjustment

SCN coding completely by OBDII by using Mercedes Online (no Xentry online account is required)

MN002 - Cluster Calibration by OBD (K-Line), Assyst Plus ( Mileage calibration – both SAM module and instrument cluster)

MN003 – Airbag (Clear crash data from Bosch/Temic/TRW airbags up to 2010)

MN004 - TV/AUX, Seatbelt, Reverse warning, Gulf states (Enable Video in Motion – either by using Mercedes Offline or Mercedes Online)

MN005 - Key Programming, Immo read/update (Key programming by dump (DAS 2/2a/2b)

MN006 - ECU Read/Update Flash

MN007 - CGW (Central Gateway) Read/Update ConfData (SOFTOUCH activation - switching from semi-automatic to automatic transmission), Gearbox adaptation

MN008 - SMART Key Learning, Emergency start – models 451, 454 ( Key programming – models 450, 451, 452, 454 ), Cruise control activation

MN009 - Cluster Calibration for SMART after 2007

MN010 - Cluster Calibration for S-Class W221/CL W216 and Sprinter, Vito, Viano (after 2006)

MN011 - CAN Dash Cluster Calibration - W211, W219, W164, W251, W203...

MN012 - Cluster Calibration - Mercedes, Smart

MN013 – Airbag – clear crash data

MN014 - Cluster Calibration in Dash in SMART 2007+ and in SAM module (451)

MN015 - Cluster Calibration - Mercedes

MN016 - Cluster Calibration for W204/W212/W207/W197/X204/w218

MN017 - Cluster Calibration for W220/W215; Read/Update ConfData of W220/W215/W169/W245/W221/W216 (Reflashing and renewal of SAM module and SAM/ECM synchronisation), Cluster calibration and adaptation for vehicles up to 2014

MN018 - Key Learning (DAS2, DAS2A, DAS2B, DAS3), Virgin ECU, SBC Repair (SBC counter reset), Repair Start Error

MN019 - Electronic Transmission Control (722.9) and ISM renew ( 7-G Tronic Databse for TCU reflashing)

MN020 - Instrument Cluster Data Manager ( Mileage calibration )

MN021 - TV (TV In Motion), ECU, Airbag Manager

MN026 - Key Programming, EIS/ESL/DAS Manager/7-Gear ETC/ISM/Infra Red and password reader/Personalization/Activation/Coding

MN028 - Instrument Cluster Data Manager, TV (TV In Motion), ECU, Airbag Manager

MITSUBISHI

MI002 - Key Learning

MI003 - ECU Read/Update Flash - Reading of EDC15 engine control units (ECU)

MI005 - Electronic Control Unit reprogramming ( EDC15 engine control units (ECU) reprogramming)

MI006 - PIN and Key Manager

MI007 - PIN and Key Manager

OPEL

ON007 - Tech2Win Driver

ON010 - Engine Control Unit Flash Manager

RENAULT

RR002 - Key learning

RR003 - ClioIII, Modus, MasterIII, Logan, Traffic

RR005 - Key learning

RR006 - Megane III key learning

RR007 - Updated SW key learning

RR008 - Clio IV key learning

RR010 - Clio IV key learning

RR012 - Twingo III key learning

RR015 - Smart 453 key learning

SUBARU

SB001 - Subaru Key learning and smart system reset

TAGPROG

KT001 - Tag Key Tool programmer 55105509

KT002 - Key Maker Q7/A6/Allroad

KT003 - Key Maker Passat B6/CC

KT004 - Key Maker ClioIII/Duster

KT005 - VAG Tp22/Tp23/Tp24/Tp25 production

KT006 - Key Maker Passat B6/CC Keyless

KT010 - Tag Key Tool

KT012 - Porsche key learning

TOYOTA/LEXUS

TN004 - Key Programming

TN005 - Advanced diagnostic functionality. Key programming (Immo Box – mechanical keys – requires ZN039-2)

TN006 - Advanced key programming by diagnostics (Smart Key programming – requires ZN039-2)

TN007 - Advanced diagnostic functionality and key programming (Smart Keys programming for models up to 2016/2017)

TN008 - Advanced diagnostics and key programming

TN010 - Mileage recalibration

Tesla

TS001 - Key Learning Models S/X

TS002 - Bosch Airbags Read/Write EEPROM/Clear Crash

Volvo

VL003 - Instrument Cluster Data Manager

VL004 - HITAG 2 Key Learning and Central Car Configuration

Peugeot/Citroen (PSA)

BSI Functions: Service interval reset, Clear faults log, Verify/set PIN, Virginize

Change ID in BSI, Telematics, Airbag, MDS

Clear crash data in some Airbag modules by dump

VAG

AN002 - Cluster CAN - Calibration

AN003 - Cluster PIN-CAN - Calibration

AN004 - Immo panel – Read PIN

AN005 - Immo panel EDC16 - Read PIN&CS

AN006 - Cluster K-Line - Calibration

AN007 - ECU ConfData – Read ECU EEPROM

AN008 - Flash Counters

AN010 - Airbag ConfData – Airbag reset

AN011 - TV Configuration – TV in motion

AN012 - EDC16 calibration – mileage in ECU

AN014 - EDC17 PIN – Read Immo Data PIN&CS from ECU

AN015 - Flash Memory ECU – by OBD

AN018 - Dealer key learning Q7- spare key (2006 - 2008)

AN019 - Prepare Dealer Key Q7 – spare key (2006 - 2008)

AN021 - ME7 ConfData – read and write ECU EEPROM all by OBD

AN023 - VW Crafter – Read/Write ECU ConfData, Key learning, ECU and Immobilizer Diagnotics, Remote Control Diagnostic, ECU ConfData in Direct Mode, ECU Adaptation (Autodetect/Manually enter ECU PIN/CS)

AN024 - Key learning for EDC16 models – If PIN and CS are known

AN025 - EDC16/MED9/Simos PIN/CS – Read Immo Data

AN026 - Dealer key learning

AN027 - Q7 2008+

AN028 - Cluster CAN UDS

AN029 - IMMO Data Immobiliser/ECU

AN030 - Key Adaptation (All VAG Models)

AN031 - Dealer Key Preparation – Models up to 2012

AN032 - Security code by CAN

AN033 - ECU ConfData (EDC15, ME7.x.x) – Read ECU EEPROM by OBD

AN034 - Cluster - PIN/Calibration – K-Line – Mileage for all Models up to MY 2006

AN036 - Airbag (K-Line/CAN) – Airbag reset for models up to MY 2008

VN003 VAG key learning special function

VN012 - Security data extraction for VAG vehicles with Magneti Marelli 9GV ECU

VN013 - ECU authorization for all Immo 3 and Immo 4 vehicles

VN015 – Odometer recalibration for VAG vehicles

VN018 – Advanced diagnostics for VAG vehicles

Other functionalities already included in AVDI Base for VAG:

- Diagnostic channel adaptations

- Key programming by channel if the PIN is known (done in diagnostics in Instrument Cluster) - Guided functions for ECU, Instrument cluster, Navigation, Steering wheel, Electronic parking brake, Telephone, Comfort module and Body Control Module (enable/disable)

- Enable video in motion for MMI 2G and 3G

- Steering lock adaptation (done in diagnostics on a separate channel)

- 7-digit to 4-digit PIN conversion

- DPF remove by DUMP – EDC16 (checksum needed), EDC17

- Key Programming, Mileage Calibration and module replacement for all VAG Immo III and III+ vehicles

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus ) Compatibility:

AVDI is compatible with all Abrites diagnostic software:

Bikes, Snowmobiles, Water scooters, Heavy duty vehicles

BMW, Mini

Chrysler, Jeep, Dodge

DAF

Daihatsu

FCA - Fiat, Alfa Romeo, Lancia

Ford, Mazda

Hyundai, KIA

Jaguar, Land Rover

Mercedes, Smart, Maybach

Mitsubishi

Nissan, Infiniti

Opel, Vauxhall

Peugeot, Citroen

Renault, Dacia

Subaru

Suzuki

Tesla

Toyota, Lexus, Scion

VAG - Volkswagen, Audi, Seat, Skoda, Porsche

Volvo

SAE J2534 PassThru compliant driver:

Compatible with many 3rd party diagnostic software

VCI emulator which enables AVDI to emulate different interface units (e.g. K-line interface and ELM327 interface)

J2534 PassThru compatibility:

BMW - DIS over K-line and CAN bus

BMW - E-Sys, INPA, EDIABAS, NCS Expert, NFS over K-line and CAN bus

BMW Rheingold ISTA-P

BMW

MINI

Bombardier diagnostic software

Mercedes DAS/Xentry - Star Diagnosis

Mercedes

Evinrude Diagnostics

Fiat EXAMINER

FCA

Ford Scanner

FORD

GM - Tech2Win, GDS2 and SPS diagnostic software

GM

Honda/Acura HDS

HONDA

Hyundai/KIA GDS

HYUNDAI

KIA

Jaguar Land Rover Symptom Driven Diagnostics (JLR SDD)

JAGUAR

LAND ROVER

Mitsubishi MUT3

Nissan Consult III+

NISSAN

Land Rover/Jaguar IDS

Subaru Select Monitor III

SUBARU

Suzuki/Yamaha Marine Diagnostics

Toyota/Lexus/Scion Techstream

TOYOTA

LEXUS

Volvo VIDA

VOLVO

VW/Audi/Seat/Skoda/Bentley/Lamborghini ODIS

VW

AUDI

SKODA

SEAT

BENTLEY

LAMBORGHINI

Webasto TT

VCI emulator which enables AVDI to emulate different interface units (e.g. K-line interface and ELM327 interface)

Supporting external communication link with our transponder programmer - ZN003 PROTAG V2

Supporting external communication link with our IC programmer - ABPROG

TÜV Rheinland certified

GS certified

Compliant with the following European Directives:

2004/108 / EC

2006/95 / EC

2011/65 / EU

2012/19 / EU

And meets the following safety norms: EN61010-1: 2010, EN61326-1: 2013.

Abrites Vehicle Diagnostics Interface Device ( AVDI Plus ) Technical specification:

Dimensions:

13x5x25 cm

Weight:

0,6 kg

K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector

ISO14230 compliant

SAE J1850 VPW, PWM compliant (additional adapter required)

Single wire CAN bus multiplexed to different pins of diagnostic connector

Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector

Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector

CAN bus GMLAN,  ISO14229, ISO15765, J1939, ISO22901 compliant

Analog Input USB interface to the PC Supply voltage 8..30V DC OBDII cable

Updatable firmware
