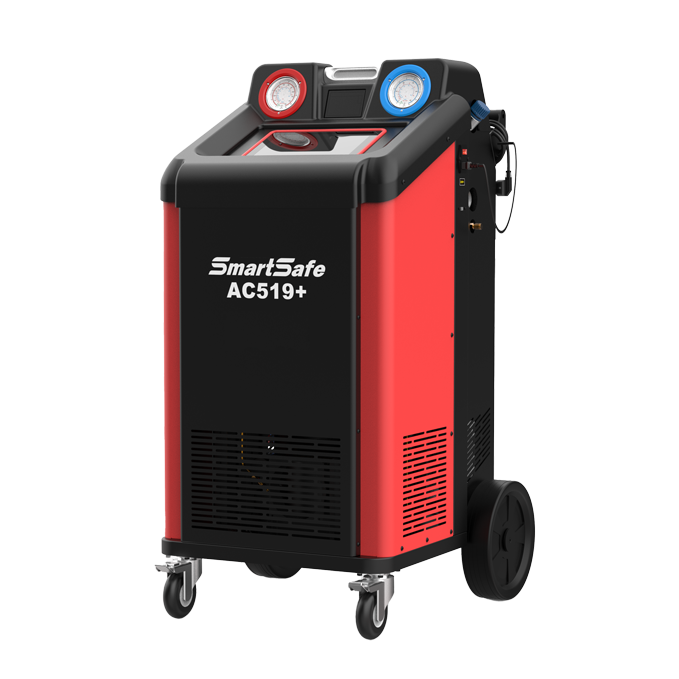

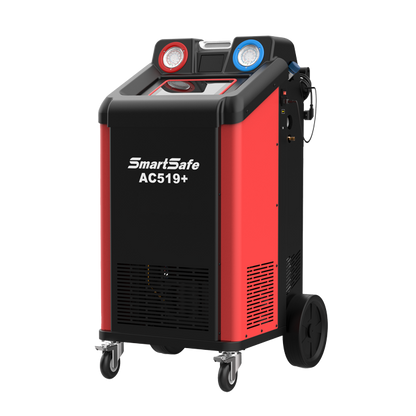

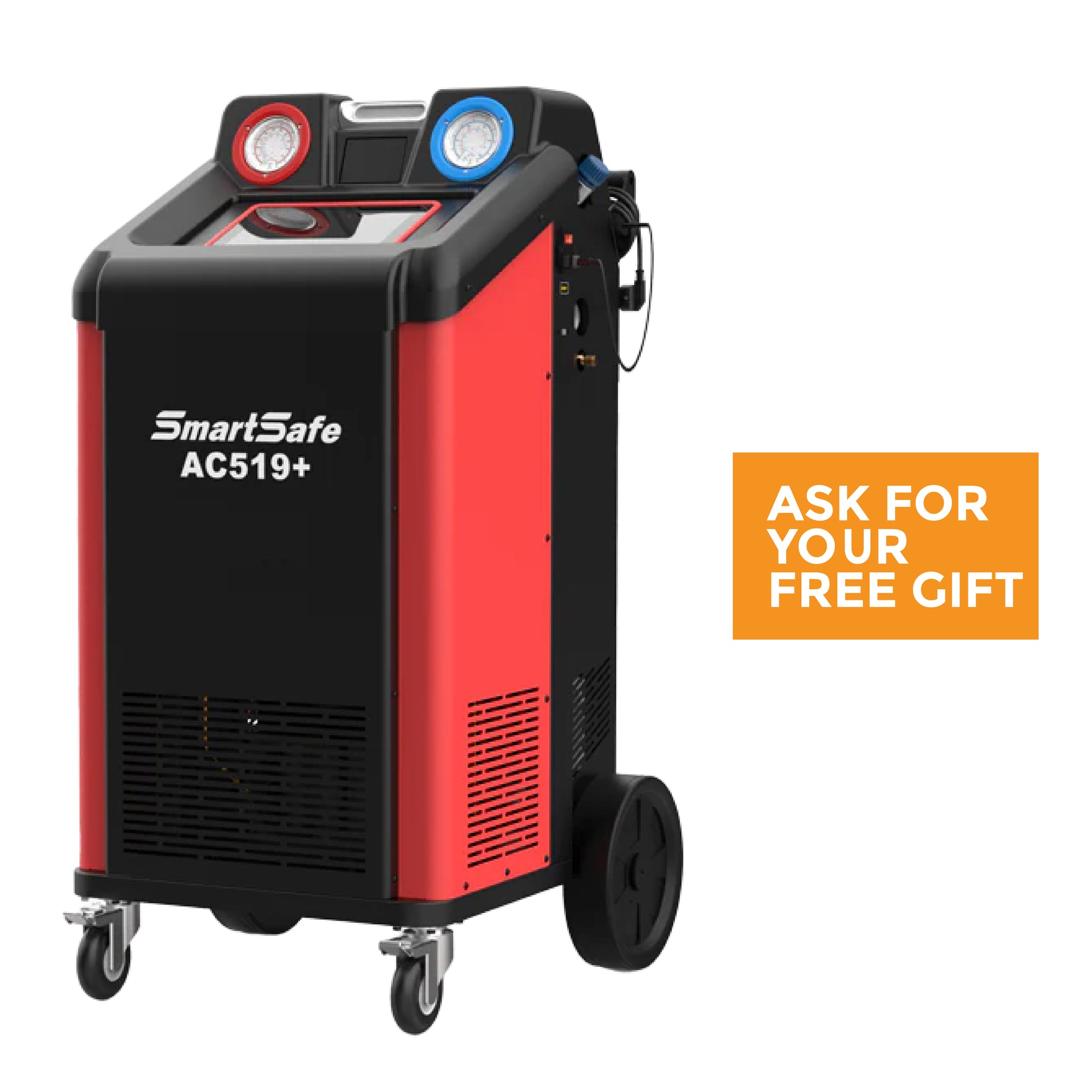

The first two-in-one refrigerant device for automotive air conditioning diagnosis and maintenance, providing comprehensive maintenance
of the air conditioning system in one device.
Features
- Equipped with automobile refrigerant database
- Supports full diagnostic functions of vehicle air conditioning systems: code reading, code clearing, data stream viewing, and action testing
- Supports two refrigerants: R134a or R1234yf
- Supports filling of PAG refrigeration oil, POE refrigeration oil, and UV detection fluid
- The vehicle air conditioning pipeline can be leak tested and the leak point can be located by adding UV detection fluid
- 128L/min two-stage vacuuming capacity greatly improves work efficiency
- Automatic mode completes cleaning, recycling, vacuuming, adding refrigeration oil, and adding refrigerant with one click; each function can also be executed separately
- Supports mobile APP binding for real-time interconnection, remote status viewing, and operation monitoring
Specifications:
- Air conditioning system diagnosis: Read and clear codes, check data flow, and perform action tests on the air conditioning system
- Air conditioning pipe cleaning: Clean air conditioning pipes and remove impurities such as sludge and powder inside the pipes
- Refrigerant recycling: Purify, regenerate, and recycle refrigerant to meet reuse standards
- Vacuum: Vacuum air conditioning pipelines and equipment pipelines
- Leak detection: Detect pipeline leaks and locate leak points using UV detection fluid
- Refrigeration oil filling: Support manual/automatic filling with accurate electronic scale control
- Refrigerant filling: Add refrigerant according to the set filling amount
- Automatic mode: Automatically perform cleaning, recycling, vacuuming, oil filling, and refrigerant filling according to set parameters
- Database: Equipped with car refrigerant model database, supports database calls without manual settings
- Print: Supports printing of device execution results
Parameters:
| Compressor power | 1/2 HP | Vacuum pump evacuation capacity | 128 L/min (50 Hz) / 142 L/min (60 Hz) |
| PAG oil bottle capacity | 250 ml | POE oil bottle capacity | 250 ml |
| Electronic scale accuracy | ±10 g | Used oil bottle capacity | 500 ml |
| Main tank capacity | 22 kg | LCD display | 10.1 inches, resolution 1280 × 800 |
| Filter processing capacity | 120 kg | Ambient temperature | 10 ~ 50 ℃ |
| UV oil bottle capacity | 250 ml | Relative humidity | < 85% |
| Voltage input | AC 220V ~50/60Hz / AC 110V ~50/60Hz (as indicated on the equipment nameplate) | ||
