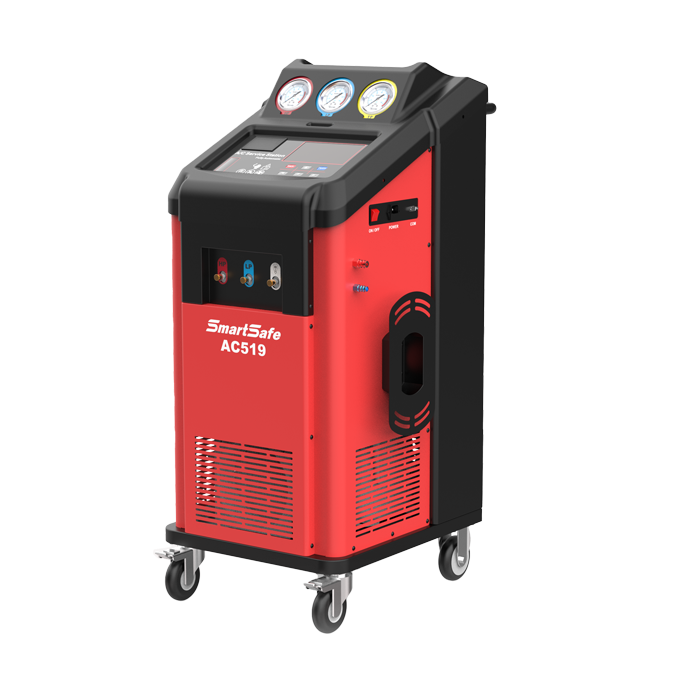

Fully automatic intelligent automobile air-conditioning maintenance equipment integrates disassembly-free cleaning, refrigerant
recovery and filling, and vacuuming functions. It can quickly collect used refrigerant, efficiently clean pipes, and accurately add new
refrigerant, completing the process in one go.
Features
- Equipped with a car refrigerant model database, no manual setting is required
- Supports two refrigerants: R134a or R1234yf
- Forward cleaning, reverse cleaning, and pulse cleaning functions with obvious cleaning effects
- Automatic mode completes cleaning, recycling, vacuuming, adding refrigeration oil, and adding refrigerant with one button; each function can also be executed separately
- Built-in printer supports printing of materials, working hours, and other information
Functions
- Air conditioning pipe cleaning: Clean air conditioning pipes, remove sludge, powder, and other impurities, replace refrigeration oil thoroughly, improve compressor lubrication, and enhance refrigeration performance
- Refrigerant recycling: Purify, regenerate, and recycle refrigerant into the working tank to meet reuse standards
- Vacuum: Vacuum air conditioning pipelines and equipment pipelines
- Refrigeration oil filling: Supports manual/automatic filling with intelligent and accurate filling through the built-in electronic scale
- Refrigerant filling: Add refrigerant according to the set filling amount
- Automatic mode: Automatically performs cleaning, recycling, vacuuming, oil filling, and refrigerant filling according to set parameters
- Database: Equipped with an automobile refrigerant model database, supports database calls without manual settings
- Print: Supports printing of device execution results
Parameters:
| Compressor power | 3/8 HP | Vacuum pump evacuation capacity | 42 L/min, 5 Pa (for 220V) / 50 L/min, 5 Pa (for 110V) |
| Cylinder electronic scale accuracy | ±10 g | Used oil bottle capacity | 500 ml |
| Oil bottle electronic scale accuracy | ±5 g | LCD display | 800 × 480 |
| Main tank capacity | 12 L (maximum safe storage capacity 10 kg) | High pressure gauge range | -1 bar ~ 38 bar |
| Filter processing capacity | 60 kg | Low pressure gauge range | -1 bar ~ 18 bar |
| New oil bottle capacity | 300 ml | Ambient temperature | 0 ~ 50 ℃ |
| Voltage input | AC 220V ~50/60Hz / AC 110V ~50/60Hz (as indicated on the equipment nameplate) | Relative humidity | < 85% |
