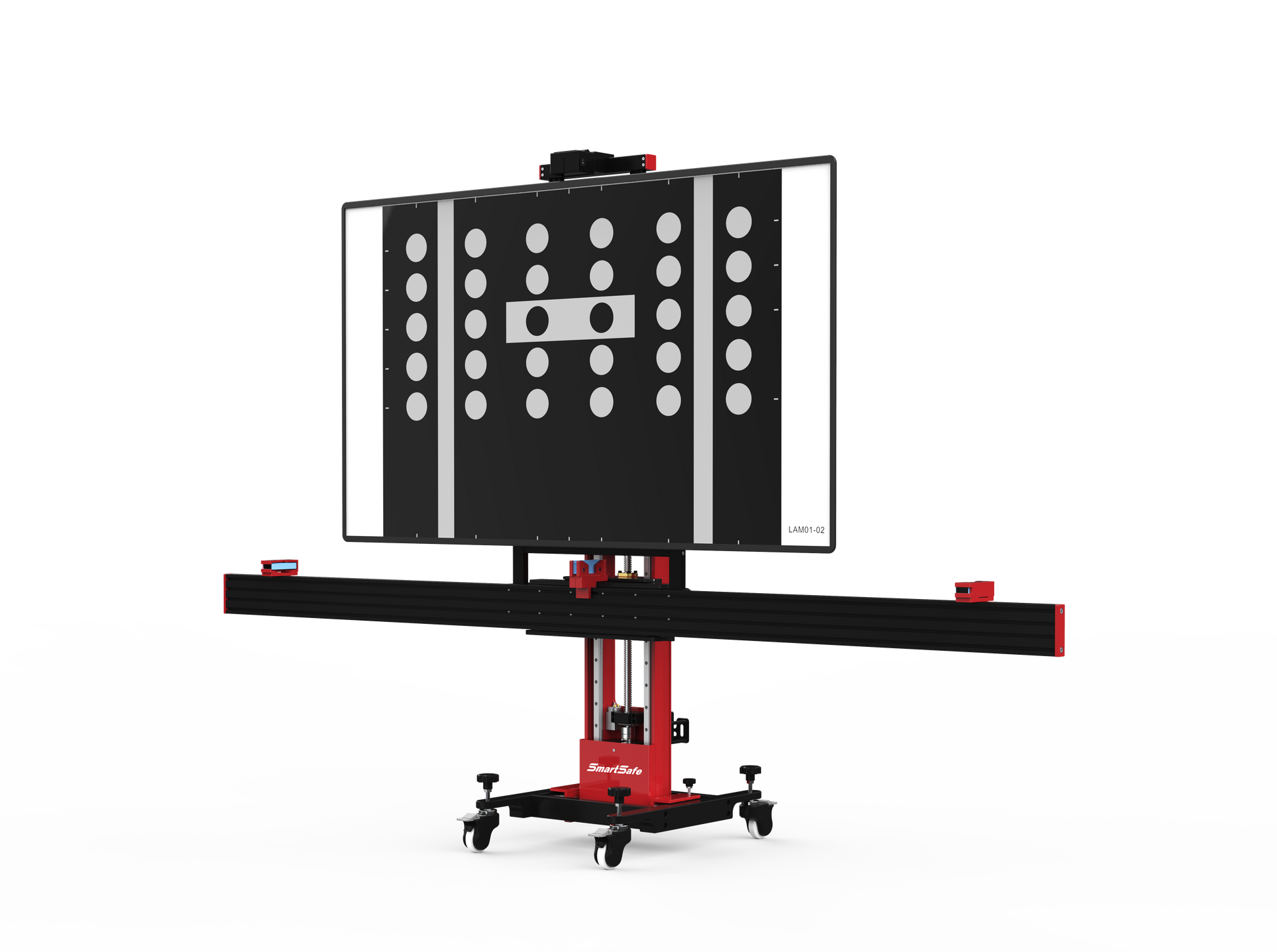

PRO+ V2 is a professional-grade passenger vehicle ADAS calibration device that displays the front camera target through an
electronic screen
Features:
- Digital display of front camera targets eliminates installation steps of physical target heads, improves ADAS calibration efficiency, saves storage space, and reduces maintenance and transportation costs
- Equipped with a 75-inch high-definition LCD screen with 4K resolution, restoring the digital target to a 1:1 physical target ratio
- Supports horizontal angle adjustment, front–back and left–right fine-tuning, electric lifting and manual beam fine-tuning, completing centering and parallelism within one minute
- Equipped with a millimeter-level laser rangefinder to ensure precise calibration
- Software provides graphic tutorials and step-by-step guidance
- Supports output of comparison reports before and after calibration
Functions
- Target digitalization: Supports more than 30 front camera targets
- Equipment fine-tuning: Supports fine-tuning of front-to-back and left-to-right angles
- Equipment lifting: Supports manual and electric lifting modes, with laser rangefinder-assisted height positioning
- Centering and parallelism: Uses laser rangefinder for parallel positioning and line laser for center positioning between equipment and vehicle
- Level adjustment: Observe the level bubble and adjust the base knob to achieve level adjustment of the equipment
Accessories
- Wheel Clamp Assembly
- Distance Measurement Target
- Center-mounted Laser
