Product Description:

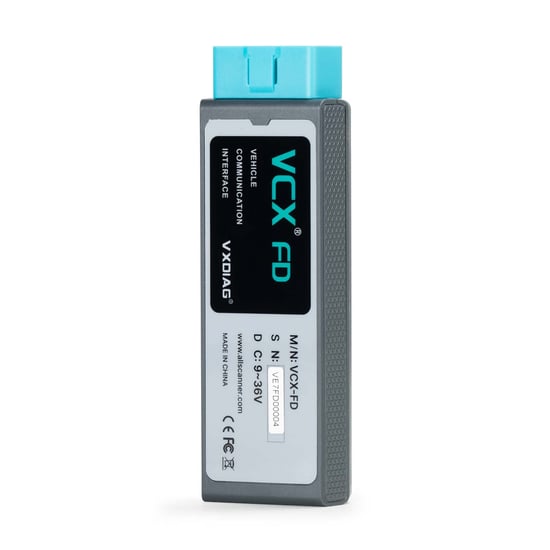

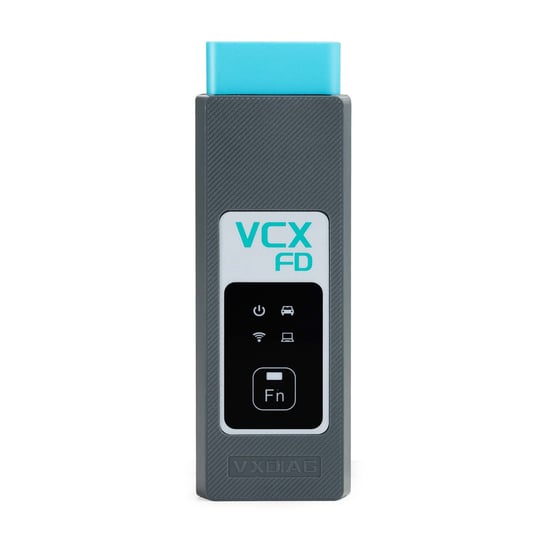

New ALLScanner VCX FD for GM / FORD / MAZDA CAN FD Diagnostic Tool WIFI Version
ALLScanner VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, representing next-generation diagnostic technology. It supports multi-channel CAN-FD, DOIP, and traditional diagnostic protocols, and is compatible with original diagnostic software.
VCX-FD supports both local and super remote dual-mode diagnosis.
Supported Software:
- GM GDS2 V2023.10.19 / Tech2WIN 16.02.24
- Ford IDS V130
- MAZDA IDS V131
Advantages of VCX-FD Hardware:
- Dual-core architecture with enhanced communication performance
- RTOS and OpenWRT dual operating systems for stability
- Supports CAN-FD, DOIP, and traditional vehicle BUS protocols
- USB, RJ45, and WLAN flexible connectivity

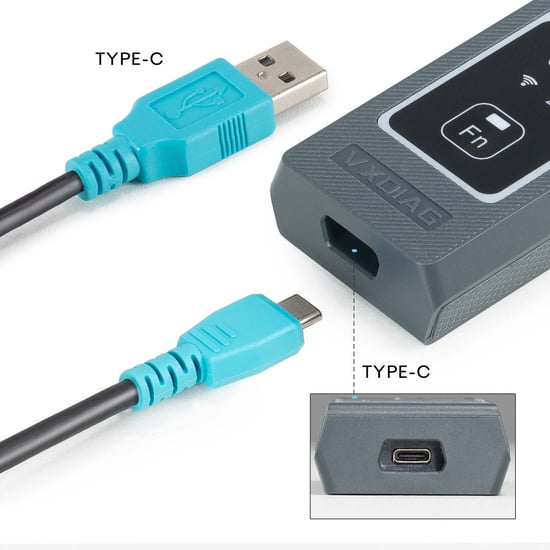

- Integrated OBD-II interface with reinforced Type-C connection
More Powerful Vehicle Diagnostic Equipment:
- Supports 15 original diagnostic vehicle brands
- Supports CAN-FD and DOIP-based new models
- SAE-J2534-1/2, ISO-22900, RP-1210 API support
- Supports original online ECU programming (account required)
ALLScanner VXDIAG VCX FD Parameters:
| Network processor | 32bit 560MHz MIPS, 32MB FLASH, 128MB DDR |
| Protocol processor | 32bit 550MHz ARM, 1MB FLASH |
| Diagnostic interface | SAE-J1962 OBD-II |
| DoIP interface | ISO-13400-4 Option1/2 Ethernet |
| Wired interface | USB Type-C |
| Network interface | USB Type-C to RJ-45 Ethernet |
| Wireless interface | WLAN 802.11 b/g/n |
| Indicator light | 5 LEDs: power, wireless, communication, vehicle, remote |
| Power supply | DC 9V–36V (12V / 24V compatible) |
| Power consumption | 2W |
| Dimensions | 140 × 50 × 25 mm |
| Weight | Device: 0.3 kg / Package: 0.8 kg |
| Shell | Reinforced plastic |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Certification | EU CE, US FCC |
Supported BUS Protocol:
- CAN / CANFD / DoIP / LIN / K-Line / PWM / VPW / SWCAN
- BMW, VAG, BENZ, GM, FORD, HONDA, NISSAN protocols

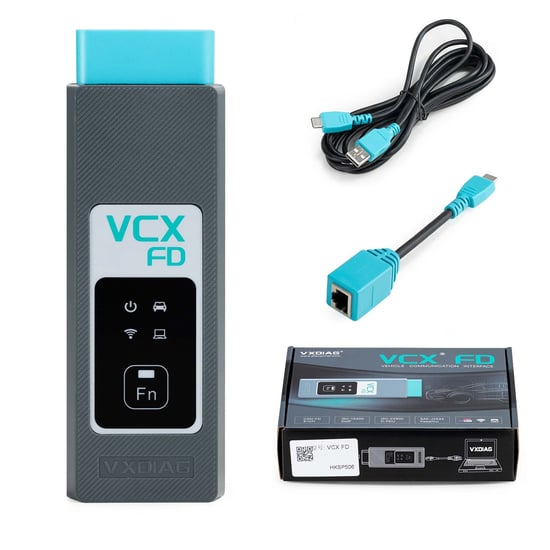

Package List:
- 1 × VCX-FD Interface
- 1 × Type-C USB Cable
- 1 × RJ45 LAN Converter
