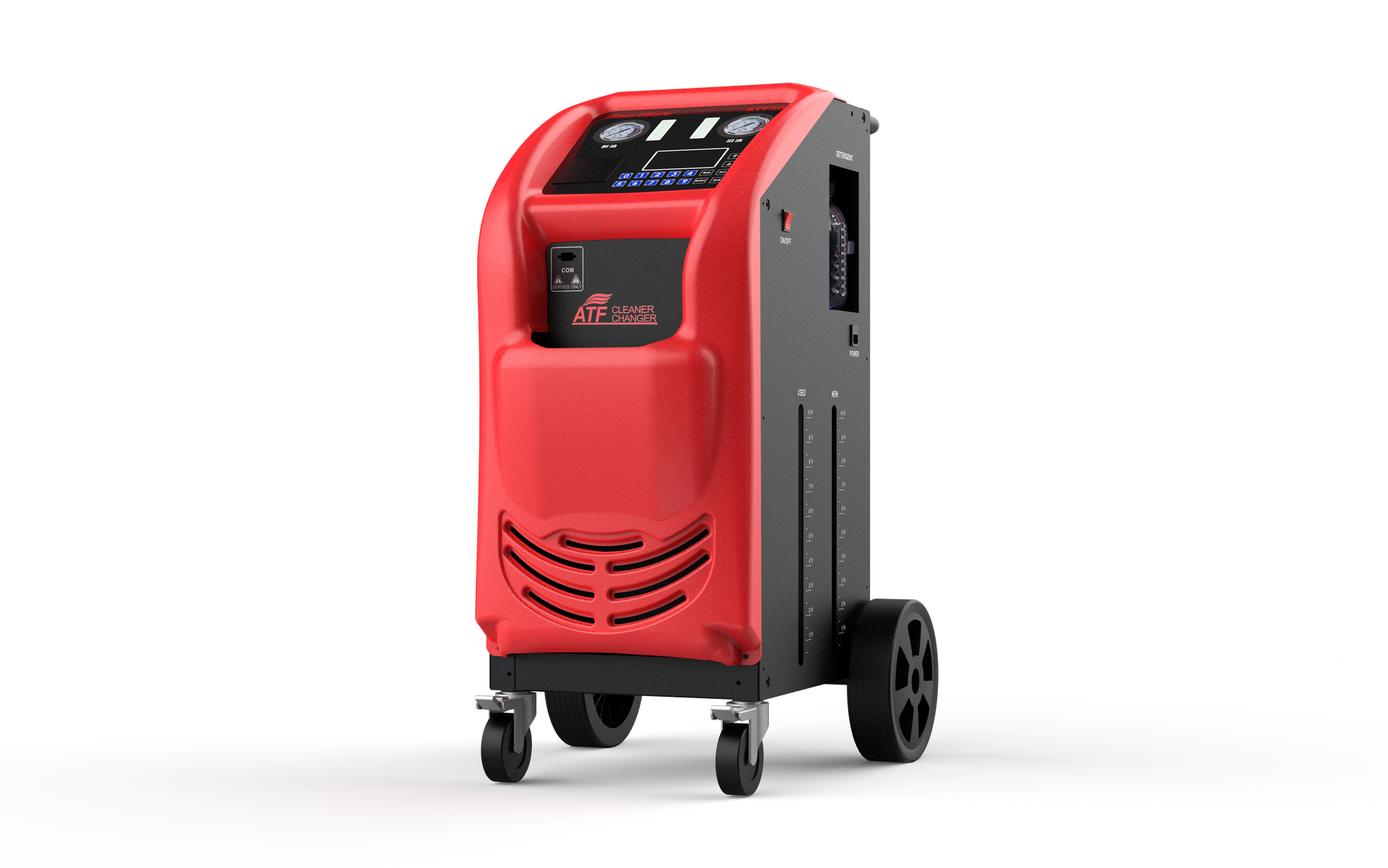

ATF501 is an equipment that utilizes the pressure difference between the internal pressure of an automatic transmission gearbox during the
operation of a car engine and the pressure of the equipment pump to perform cleaning and oil changing for the automatic transmission.
Features
- Automatic identification of transmission inlet and outlet oil directions
- Equipped with a variety of specialized adapters suitable for vehicles from various countries
- Supports the addition of cleaning agents for performing circulation cleaning of the automatic transmission
- Intelligent electronic control ensures automatic equal-volume replacement of new and used oil
- Provides an extensive vehicle model database, eliminating the need for manual oil quantity setting
- Features oil temperature display and oil filter replacement reminder function
Functions
- Transmission oil level adjustment: Customizes oil level adjustments by refilling or draining the set amount of transmission oil
- Transmission oil replacement: Automatically identifies transmission inlet and outlet ports, enabling equal-volume replacement of automatic transmission oil
- Transmission oil circulation cleaning: Allows the addition of cleaning agents for circulating cleaning of the automatic transmission
- New and used oil drain: Automatically drains automatic transmission oil from new and used oil barrels in the equipment
- Custom vehicle data: Supports custom addition of maintenance data for commonly used automatic transmission models
- Printing: Supports printing of equipment execution results with customizable repair shop information
Parameters
| Power supply | AC 110V / AC 220V, 50Hz / 60Hz | Working air pressure | 86 ~ 106 kPa |
| Pump power | 150 W | Filter accuracy | 5 μm |
| Working temperature | -10 ~ 50 ℃ | Rate of flow | ≥ 2.2 L / 60 s |
| Relative humidity | < 90% | Oil tank | 20 L × 2 |
| Working noise | < 70 dB | Equal exchange accuracy | ±100 mL |
