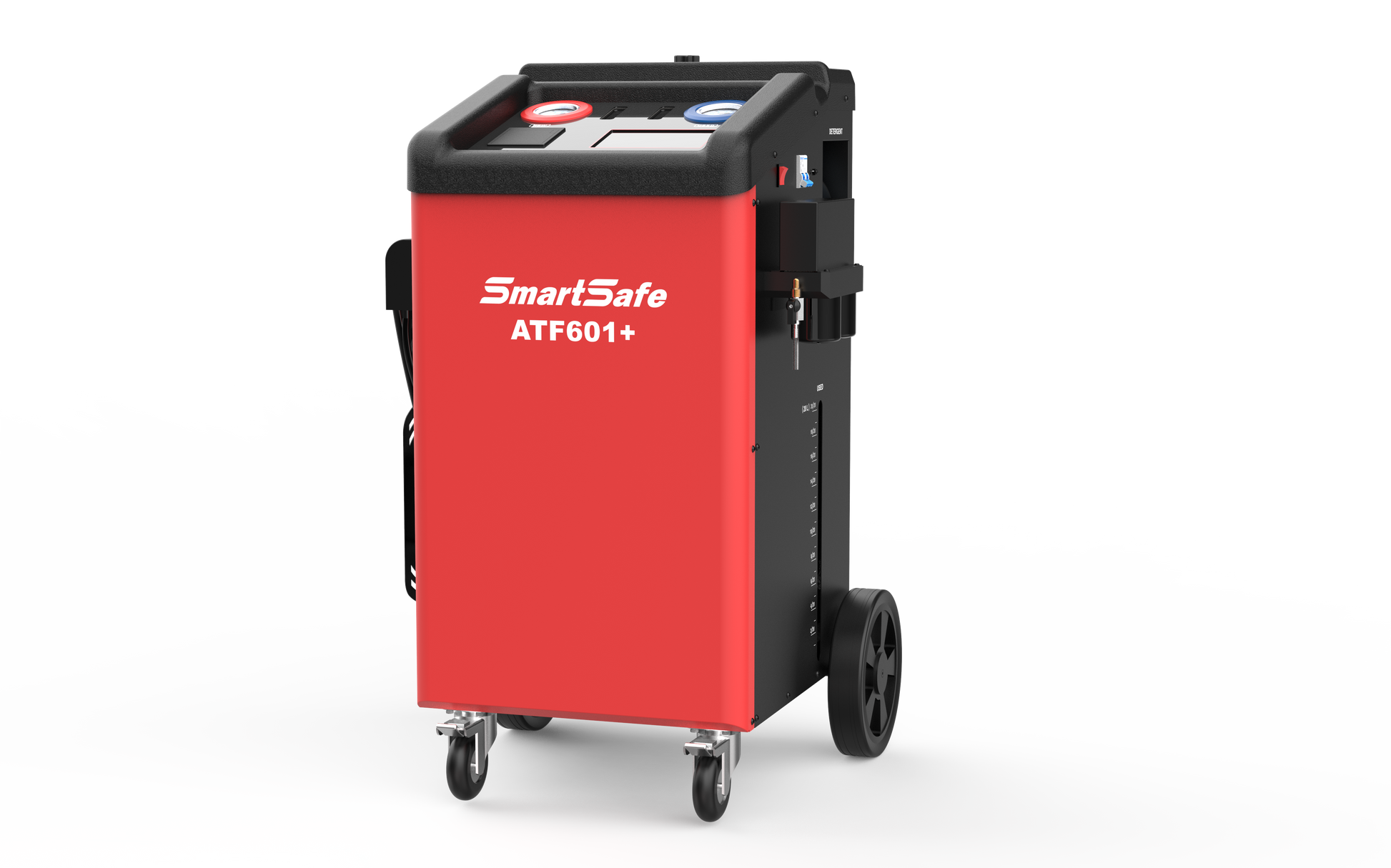

Professional transmission cleaning and oil change machine, integrated with new oil preheating function, which can completely extract used oil
and accurately add new oil. A single machine can handle the entire process, professional and reliable.
Features
- Equipped with a convenient used oil sampling function
- Can be used with smart terminals for remote control
- Automatically identifies the oil inlet and outlet direction of the transmission
- Equipped with a variety of special adapters, suitable for models in various countries
- Supports adding cleaning agents to perform cyclic cleaning of automatic transmissions
- Intelligent electronic control automatically replaces new and used oil in equal amounts
- Provides a rich database of vehicle models, eliminating the need to manually set the oil volume
- Equipped with oil temperature display and oil filter replacement reminder function
Functions
- Used oil sampling: Automatically collects used oil from the transmission
- Transmission oil level adjustment: Customizes oil level adjustments by refilling or draining the set transmission oil amount
- Transmission oil replacement: Automatically identifies transmission inlet and outlet ports, enabling equal-volume replacement
- Transmission oil circulation cleaning: Allows adding cleaning agents to perform cyclic cleaning of the automatic transmission
- Draining used and new oil from equipment: Automatically drains transmission oil into the new and used oil barrels of the equipment
- Vehicle model data customization: Supports custom addition of common automatic transmission maintenance vehicle model data
- Print: Supports printing of equipment execution results and customizable repair shop information
- Remote control: Supports connection with Android tablets for remote device operation
Parameters
| Power supply | AC 110V / AC 220V, 50Hz / 60Hz | Filter accuracy | 5 μm |
| Maximum power | 3500 W | Oil change rate | 2 L / min |
| Pressure gauge | 0 ~ 200 psi | Oil tank | 20 L × 2 |
| Oil outlet pipe | 2.5 m | Equal replacement error | ±100 ml |
| Oil return pipe | 2.5 m | Ambient temperature | -10 ℃ ~ +50 ℃ |
| Oil drain pipe | 1.2 m | Filter element service life | About 1 year (once used per day on average) |
| Relative humidity | < 90% |
