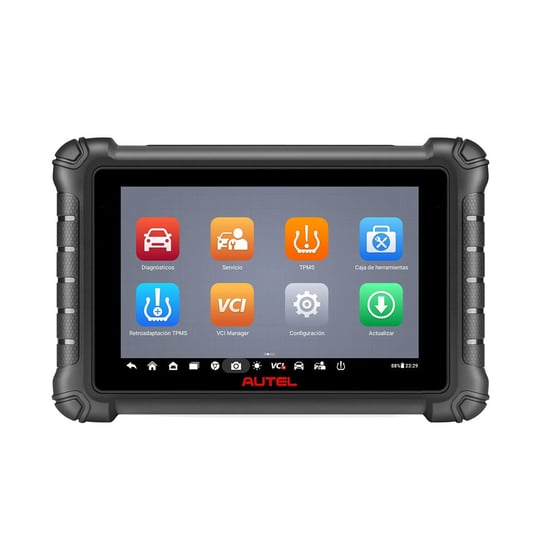

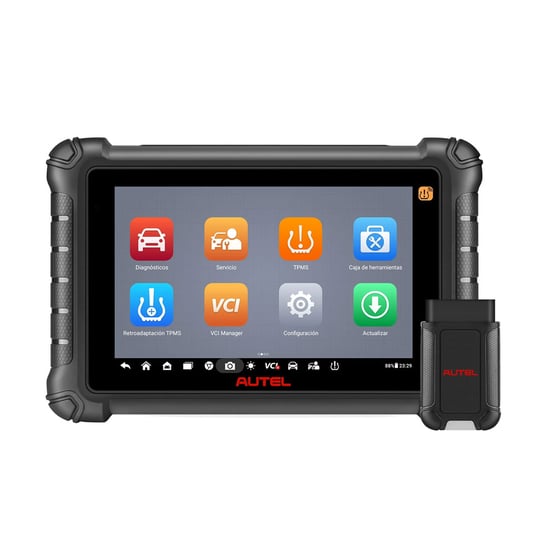

Autel MaxiCheck MX900-TS MX900TS Diagnostic Tool
Autel MaxiCheck MX900-TS MX900TS Diagnostic Tool
Autel MaxiCheck MX900TS Description: The new Autel MaxiCheck MX900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The...
Autel MaxiCheck MX900TS Description:

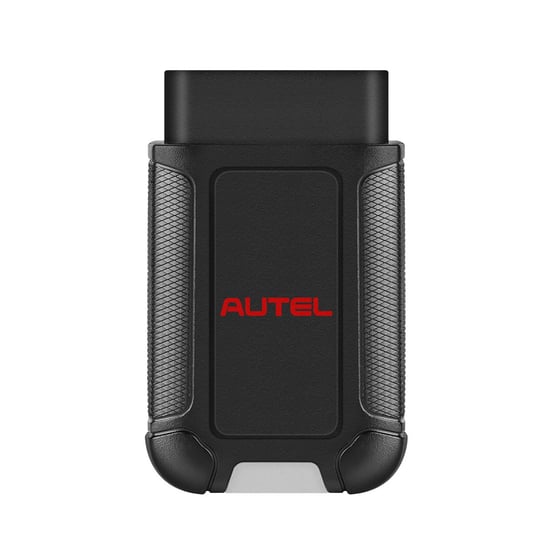

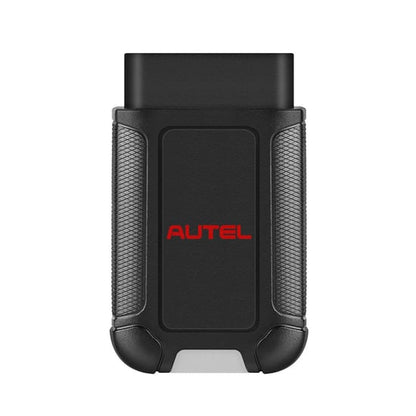

The new Autel MaxiCheck MX900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The MaxiVCI V150 for wireless communication with the test vehicle and its advanced wireless technologies make it truly portable and Internet accessible.
- 2 Years update subscription is included with the device.
- Ip Restriction (works only in India, Middle East and Africa ).
- Extensive vehicle coverage for U.S., Asian, and European vehicle makes
- Exceptional OE-Level system for all electronic systems
- Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.
- Features DoIP and CAN FD protocols
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push notifications through the Internet
- Instant remote control tech support anytime and anywhere
- Advanced TPMS diagnostics with DTC description
- TPMS status, one step for complete TPMS health check
- Activate all known TPMS sensors
- Program AUTEL MX-Sensor
- Comprehensive OBD relearn coverage
- On-screen relearn procedure
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Supports Pre & Post Scan
Autel MaxiCheck MX900TS Specifications :
| Operating System |
Android 11 |
| Processor |
Quad core Processor(1.8GHz) |
| Memory |
4GB RAM & 64GB ROM |
| Display |
8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera |
8 MP |
| Connectivity |
USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (supports up to 64GB) |
| Audio Input/Output |
Input: N/A | Output: buzzer |
| Power and Battery |
3.7 V/7700mAh lithium-polymer battery |
| Charging |
Charges via 5 VDC power supply |
| Battery Charging Input |
5 V/3 A |
| Operating Temp |
0 to 50°C (32 to 122°F) |
| Storage Temp |
-10 to 60°C (14 to 140°F) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Top Reasons to Choose Autel MaxiCheck MX900TS
- OE-Level All Systems Diagnostic
- Bi-Directional Control/Active Test
- 40+ Service Functions
- Full TPMS Functions
- Enhanced Hardware
- Wide Coverage
- AUTO VIN & AUTO SCAN
- Extensive Functions
- 1-Year Warranty
Autel MaxiCheck MX900TS Diagnostic Tool Comparison
| Feature |
MaxiCheck MX900TS |
MaxiCheck MX900 |
MaxiCheck MX808TS |
MaxiCheck MX808 |
| Read Codes |
√ |
√ |
√ |
√ |
| Erase Codes |
√ |
√ |
√ |
√ |
| Live Data |
√ |
√ |
√ |
√ |
| ECU Information |
√ |
√ |
√ |
√ |
| Active Test |
√ |
√ |
√ |
√ |
| Service Functions |
√(40kinds) |
√(40kinds) |
√(36kinds) |
√(36kinds) |
| Complete OBD Diagnositcs |
√ |
√ |
√ |
√ |
| Pre & Post Scan |
√ |
√ |
-- |
-- |
| Tire Pressure Monitoring System |
Complete |
Basic |
Complete |
Basic |
| DoIP |
√ |
√ |
-- |
-- |
| CANFD |
√ |
√ |
√(optional adapter) |
√(optional adapter) |
| Battery |
7700mAh |
7700mAh |
5000mAh |
5000mAh |
| Operating System |
Android 11 |
Android 11 |
Android 4.4.4 |
Android 4.4.4 |
| Display |
8" LCD |
8" LCD |
7" LCD |
7" LCD |
| Internet Updatable |
WiFi |
WiFi |
WiFi |
WiFi |
| Vehicle communication method |
Wireless (bluetooth) |
Wired |
Wireless (bluetooth) |
Wired |

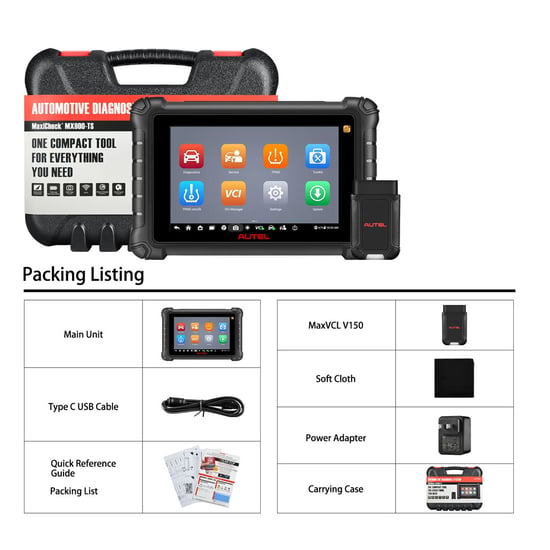

Autel MaxiCheck MX900TS Packing List :
Autel MaxiCheck MX900TS User Manual EN
Availability: Out of stock
