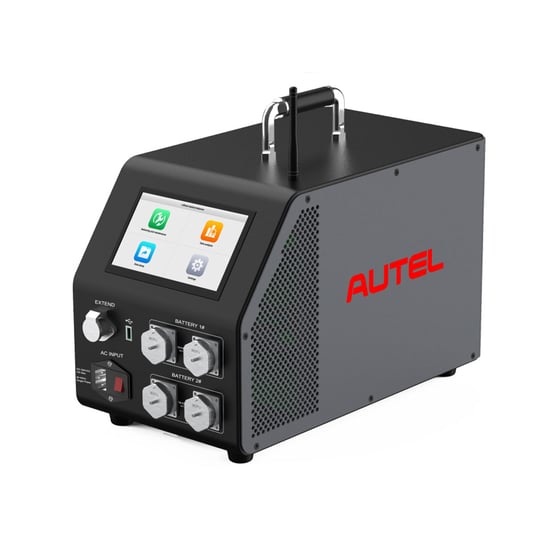

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Ev Battery Pack Cell Balancer

Product Description:
New Autel MaxiEV CDT100 is a high voltage battery charger and discharger. Improve battery pack capacity with constant current charge, and discharge modes. The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit). Zoom-in and zoom-out display capability. Industry applications include electric vehicle transporters, collision and mechanical repair shops, and salvage yards and vehicle warehouses.
Battery Service Automotive Workshop Equipment From Autel with Product Number: MK26791
This Weight Product: 15000g

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer User Manual

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Features:
•Detect and charge module cells evenly and prevent overcharging of cells.
•Ensure accurate measurements by detecting and correcting voltage and current values.
•Overvoltage protection technology ensures that the cell voltage is close to the target threshold during the testing process.
•Additional protections for undervoltage, overcurrent, short circuit and reverse polarity

Autel MAXIEV BCE100 Advanced Battery Pack Cell Balancer Specs:

CHARGE AND DISCHARGE VOLTAGE RANGE
1.8-5V

CHARGE AND DISCHARGE CURRENT RANGE
0.1-5A

VOLTAGE DETECTION ACCURACY
±0.1%FS±2mV ( maximum range 5 V)

CURRENT SAMPLING ACCURACY
±1%FS±0.05A ( maximum range 5 A)

CHARGE AND DISCHARGE POWER
600W Max

TEST CELL QUANTITY
Max 2 Packs and 12 Cells (max)
Per Pack (Supports 2X12 / 1X24)

POWER INPUT
AC 110V/220V

CHARGE CONTROL
Constant Current and Voltage Charging

DISCHARGE WORKING MODE
Constant Current

PROTECTIVE FUNCTION
Input Over-Current and Over-Voltage Protection
Output Over-Current and Over-Temperature Protection

DIMENSIONS
496x246x262mm
