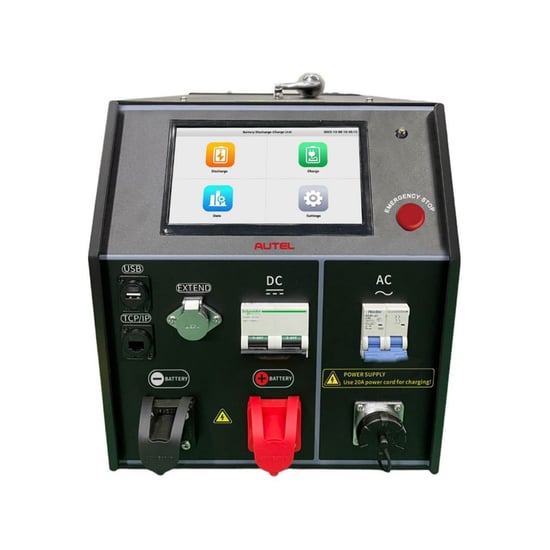

Autel MAXIEV CDT100 High Voltage Battery Charger and Discharger Hv Battery Discharge And Charge Unit

Product Description:
New Autel MaxiEV CDT100 is a high voltage battery charger and discharger. Improve battery pack capacity with constant current charge, and discharge modes. The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit). Zoom-in and zoom-out display capability. Industry applications include electric vehicle transporters, collision and mechanical repair shops, and salvage yards and vehicle warehouses.
Battery Service Automotive Workshop Equipment From Autel with Product Number: MK26789
This Weight Product: 24000g

Autel MAXIEV CDT100 High Voltage Battery Charger and Discharger User Manual

Autel MAXIEV CDT100 High Voltage Battery Charger and Discharger Features:
•Wide-voltage design, suitable for discharge, charge, and activation testing of modules with different voltage levels
•Set constant current and power, Charge and Discharge modes for varied applications
•Displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms. Zoom-in and Zoom-out display capability
•Optimize battery pack capacity with constant current discharge, and charge modes
•Issues warnings for reverse connection, over temperature, overcurrent, fan failure and overcharge
•Improves charging efficiency by ensuring full charge
•Battery/Vehicle Transport: Safely discharge batteries to DOT transport guidelines(Air: 20%, Land/Sea: 40%)
•Repair shops: Direct charging and discharging before, during, and after vehicle repair
•Collision shops: Discharge the battery before placing the vehicle in the baking booth
•Salvage Yards and Vehicle Warehouses: Prevent thermal runaway events (fires) by discharging batteries

Autel MAXIEV CDT100 High Voltage Battery Charger and Discharger Specs:

CHARGE-DISCHARGE VOLTAGE RANGE
DC 2-285V

ACCURACY
±0.5 FS

CELL VOLTAGE RANGE
0-5V

CELL VOLTAGE ACCURACY
0.001V

DISCHARGE CURRENT RANGE
150A/7.2kW Max.

DISCHARGE CURRENT ACCURACY
±1 FS

CHARGE CURRENT RANGE
100A/4.4kW Max.

CHARGE CURRENT ACCURACY
±1 FS

POWER SUPPLY
AC 110/220V

WORKING MODE
Discharge, charge, activation

DEVICE SAFETY
Multi-protection of DC input overvoltage, reverse connection, discharge overcurrent, system overtemperature

DIMENSIONS
530x300x350mm
