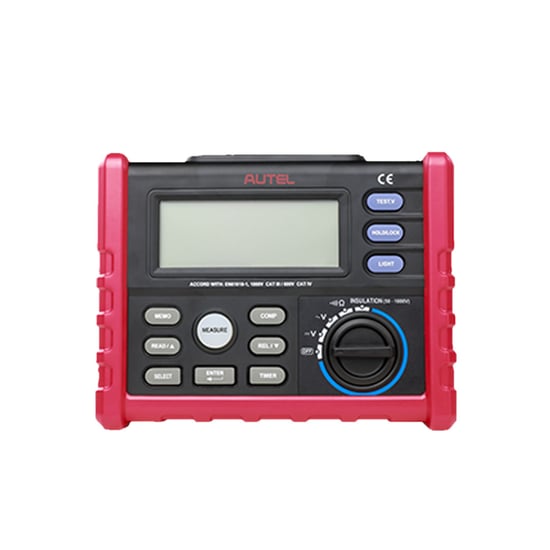

Autel MAXIEV ITS100 EV Insulation Resistance Tester High Voltage Electrical Component Insulation And R

Autel MAXIEV ITS100 EV Insulation Resistance Tester Description:
New Autel MaxiEV ITS100 is a EV Insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable visualized data for informed decision-making during vehicle maintenance.
Battery Service Automotive Workshop Equipment From Autel with Product Number: MK26788
This Weight Product: 25000g
Autel MAXIEV ITS100 EV Insulation Resistance Tester User Manual
Autel MAXIEV ITS100 EV Insulation Resistance Tester Features:
•Tests high voltage wiring and components
•Test resistance measurement before loading into the vehicle
•Helps identify issues like damage, deterioration, or contamination of the insulation
•Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measure the resulting current flow
•Provides easily interpretable visualized data for informed decision-making during vehicle maintenance
•Three measurement modes: relative, timely, and continuity
•Complies with IEC/EN 61010-1 1000V CAT Ⅲ, 600 V CAT Ⅳ measurements
•Use to discharge capacitors and testing/diagnosing isolation faults or shorts
•Automatic power-off function to conserve battery power

Autel MAXIEV ITS100 EV Insulation Resistance Tester Specs:

INSULATION RESISTANCE RANGE
0.01MΩ ~ 10.00GΩ

INSULATION TEST OUTPUT VOLTAGE
50V, 100V, 250V, 500V, 1000V

RESISTANCE TEST
0.01Ω~200Ω

DC VOLTAGE TEST
0.1~ 1000V

AC VOLTAGE TEST
0.1V~750V

DIMENSIONS
180*140*65mm
