Product Description:
Autel MaxiIM IM508S is a professional automotive key programmer and immobilizer device that combines key programming, all-system diagnostics, and advanced maintenance services. It supports all keys lost, add key, key learning, remote learning, and key chip read and write functions.
Specifications:
- 2 Years update subscription included
- 1 Year warranty
- IP Restriction (works only in India, Middle East and Africa)

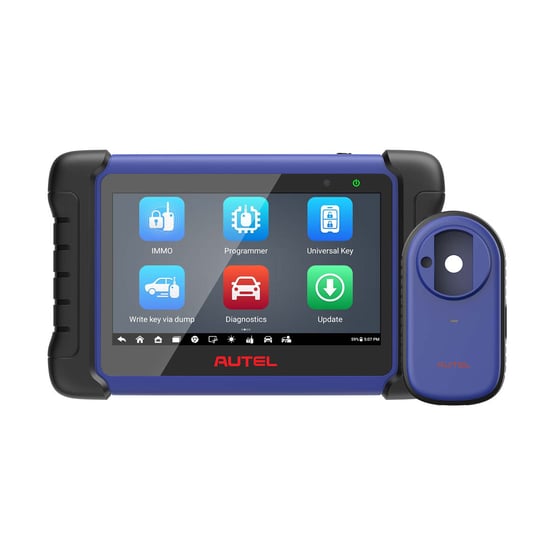

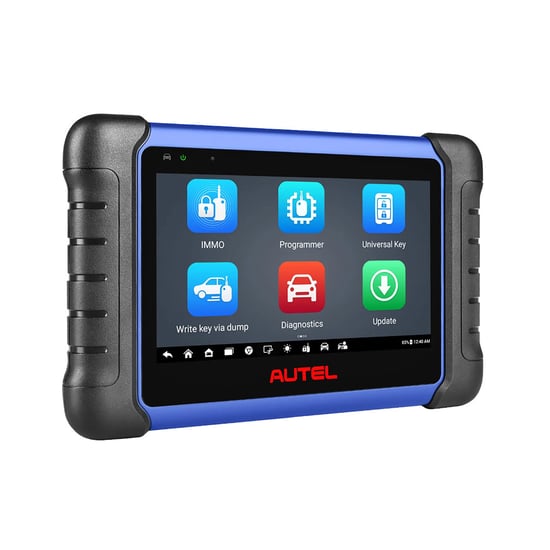

The IM508S is a 7-inch Android-based touchscreen diagnostic tablet equipped with the XP200 key programmer. It provides immobilizer programming capability, OE-level diagnostics, and maintenance service functions for most U.S., Asian, and European vehicles (1996 and newer).
Main Features:
- Key programming and immobilizer functions
- All keys lost and add key
- Key generation and remote learning
- IMMO ECU reset, coding and adaptation
- EEPROM and transponder read/write
- AutoVIN vehicle identification
- All systems diagnostic scanning
- Read and clear fault codes
- Live data stream and freeze frame
- Bi-directional control and active tests
Service Functions:
- Oil Reset
- EPB Reset
- DPF Regeneration
- SAS Calibration
- BMS Reset
- ABS Bleed
- Throttle Adaptation
- Injector Coding
- Airbag Reset
- TPMS Relearn
Autel MaxiIM IM508S Technical Specifications:
| Operating System | Android 11 |
| Processor | Rockchip RK3566 Quad-core 1.8GHz |
| Memory | 64GB |
| Display | 7-inch LCD capacitive touchscreen (1024×600) |
| Connectivity | USB 2.0, Mini USB, Wi-Fi, Micro SD (up to 64GB) |
| Battery | 3.7V 5000mAh lithium-polymer |
| Battery Life | Approx. 4.5 hours |
| Charging Input | 5V / 1.5A |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Supported Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 CAN, SAE J2610, GM UART, Honda Diag-H, TP2.0, TP1.6 |

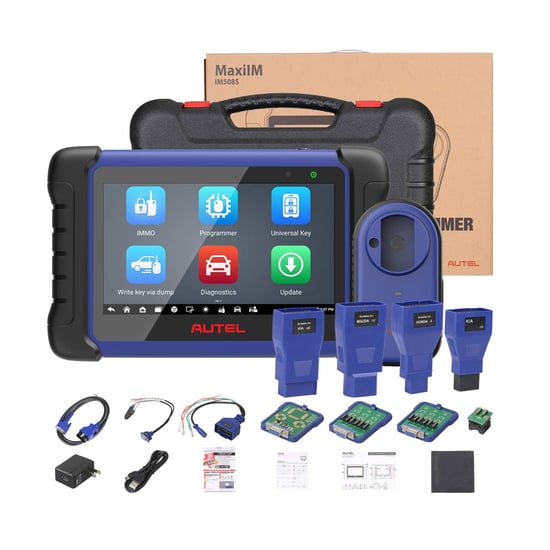

Package Includes:
- MaxiIM IM508S Tablet
- XP200 Key Programmer
- Main Cable
- Mini USB Cable
- USB Power Adapter
- EEPROM Adapter
- 68HC908 Adapter
- EEPROM Socket
- EEPROM Clamp Cable
- MED17 Cable
- KIA-10 Adapter
- KIA-20 Adapter
- Mazda-17 Adapter
- Honda-3 Adapter
- Carrying Case
