Product Description:
Autel MAXISYS ADAS ALL SYSTEMS 2.0T Adjustable Calibration Frame and Tools with MaxiSys MS909 Diagnostic Tablet is a professional Advanced Driver Assistance System (ADAS) calibration solution designed for modern vehicles. ADAS systems help prevent collisions by providing alerts, camera images and automated vehicle responses.
With the powerful MaxiSys platform and accurate calibration frame tools, the Autel MaxiSys ADAS system provides OE-level diagnostics and precise ADAS calibration. It is an ideal solution for collision repair centers, glass replacement shops, wheel alignment centers and automotive repair workshops.

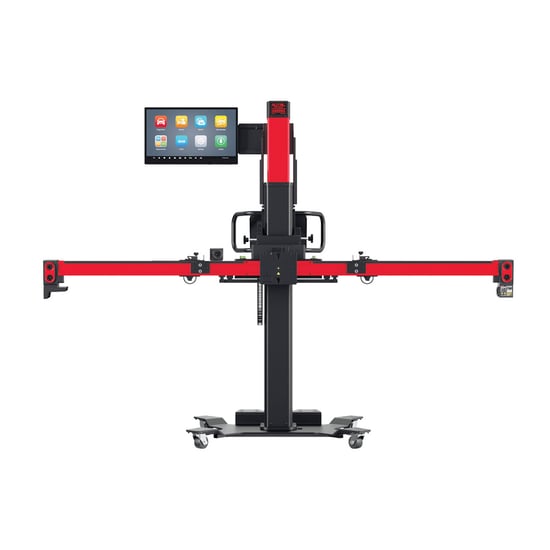

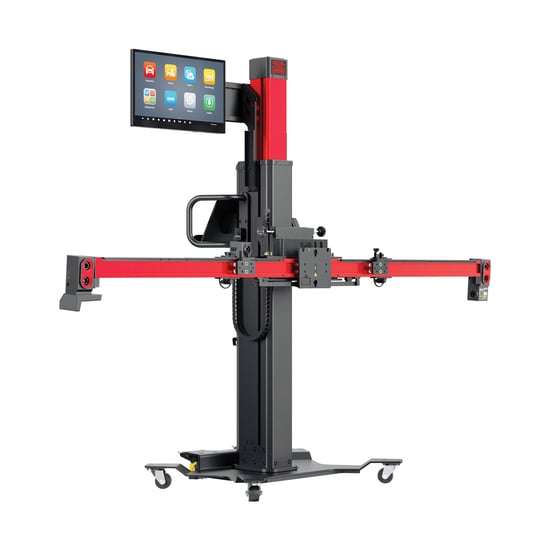

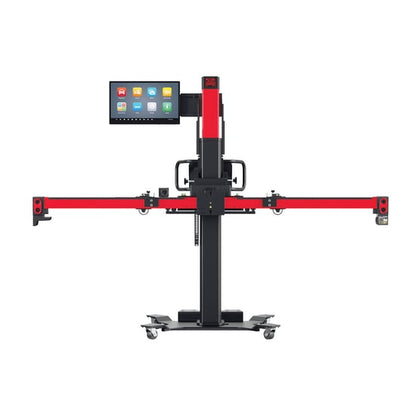

Autel MAXISYS ADAS Calibration Frame:
The Autel calibration frame is designed for compatibility with vehicle leveling lifts and includes an extended adjustable height. This allows precise alignment of the calibration crossbar during the calibration process, ensuring the vehicle is centered and parallel with calibration targets.
- Sturdy and secure calibration frame
- Adjustable frame and crossbar
- Laser positioning and millimeter ruler accuracy
- Step-by-step calibration software instructions
- Designed for professional ADAS calibration workshops
Important Note:
- Frame packages do not include ADAS software
- Please order MaxiSys ADAS tablet or software upgrade separately if required
Autel MaxiSys ADAS Key Functions:
Adaptive Cruise Control (ACC)
- Automatically adjusts vehicle speed to maintain safe distance
- Uses sensor data from radar and onboard sensors
Lane Departure Warning (LDW)
- Warns driver when vehicle leaves driving lane
- Reduces collisions caused by driver distraction or fatigue
Night Vision (NV)
- Uses thermographic camera to increase night visibility
- Improves safety during poor weather conditions
Around View Monitoring (AVM)
- Provides 360-degree bird’s eye view of the vehicle
- Assists drivers with parking and maneuvering
Blind Spot Detection (BSD)
- Detects vehicles located in blind spots
- Provides warning signals for nearby vehicles
Rear Collision Warning (RCW)
- Detects vehicles approaching from behind
- Warns driver to prevent rear-end collisions
Head Up Display (HUD)
- Projects speed and navigation data on windshield
- Allows drivers to view information without looking away from the road
Autel MAXISYS ADAS Features:
- Flexible calibration components
- Power adjustable frame
- Laser positioning accuracy
- Fine-tuning hand knob adjustments
- Adjustable calibration frame height
- Works even on uneven workshop floors

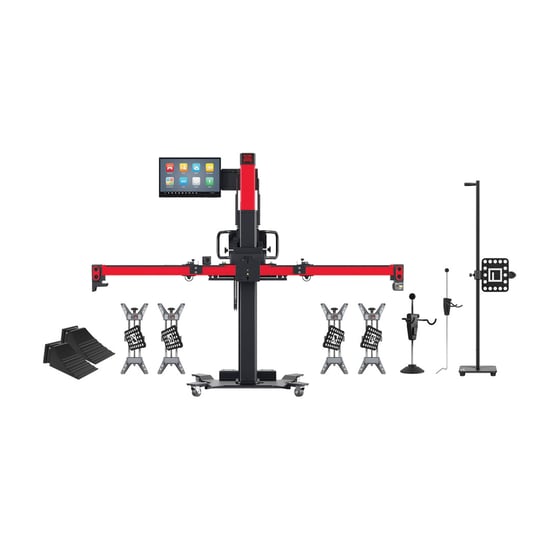

Calibration Tool Kits:
The MaxiSys ADAS system includes modular calibration tools designed for multiple driver assistance systems.
- Adaptive Cruise Control calibration tools
- Lane Departure Warning calibration targets
- Night Vision calibration modules
- Around View Monitoring targets
- Blind Spot Detection radar calibration tools
- Rear Collision Warning calibration tools
Radar Calibration Tools:
- Reflector for VW, Porsche, BMW, Nissan, Infiniti, Hyundai and Kia vehicles
- Mini reflector for radar vertical alignment
- Corner reflector for Honda, Toyota, Hyundai and Kia vehicles
- Radar calibration plates for Nissan, Infiniti and Volkswagen
Lane Departure Warning Calibration Targets:
- Honda / Acura LDW I and II targets
- Toyota / Lexus LDW targets
- Hyundai / Kia LDW targets
- Mercedes Benz LDW targets
- Nissan / Infiniti LDW targets
- Mazda LDW targets
- Subaru and Mitsubishi LDW targets
- Suzuki and Daihatsu LDW targets
Around View Monitoring Targets:
American Vehicles
- Ford AVM
- Cadillac AVM
- GM / Chevrolet / Jeep / Chrysler / Dodge AVM
Asian Vehicles
- Honda AVM
- Toyota AVM
- Mitsubishi AVM
- Nissan AVM
European Vehicles
- Porsche AVM
- Volkswagen AVM
- BMW AVM
- Fiat / Volvo / Jaguar / Maserati AVM
Blind Spot Detection Tools:
- Radar calibration box for VW, Porsche and Mazda
- Corner reflector for Honda, Toyota, Hyundai and Kia
- Camera calibration plate for Honda LaneWatch
Rear Collision Warning Calibration Targets:
- Mercedes Benz RCW target
- Nissan RCW calibration plates
Autel MAXISYS ADAS Assistance Tools:
- Laser alignment tool
- Calibration stand
- Sliding calibration boards
- Precision rulers for millimeter measurement
MaxiSys ADAS Software:
The MaxiSys ADAS calibration software runs on the powerful MaxiSys platform and provides OE-level diagnostic coverage and ADAS calibration procedures. The software provides step-by-step illustrated instructions for accurate calibration and supports multiple driver assistance systems.
- Complete ADAS calibration functions
- OE-level vehicle diagnostics
- Graphic calibration instructions
- Vehicle-specific calibration procedures
- Support for European, American and Asian vehicles
ADAS Calibration Applications:
- Collision repair calibration
- Windshield replacement calibration
- Wheel alignment calibration
- Sensor replacement calibration
- Vehicle height adjustment calibration
Supported Vehicle Brands:
- Mercedes Benz
- BMW
- Audi
- Volkswagen
- Porsche
- Lexus
- Infiniti
- GM
- Ford
- Volvo
- Toyota
- Nissan
- Honda
- Hyundai
- Kia
Calibration Types:
- Static calibration using workshop targets
- Dynamic calibration performed while driving
Workshop Requirements:
- Flat and level calibration floor
- Minimum 30ft × 15ft calibration area
- No external light reflections
- No obstacles around the vehicle
Vehicle Preparation Before Calibration:
- Vehicle parked on flat surface
- Fuel tank full
- Tire pressure set to recommended level
- No passengers or cargo
- All doors closed
- Connect VCI to vehicle
