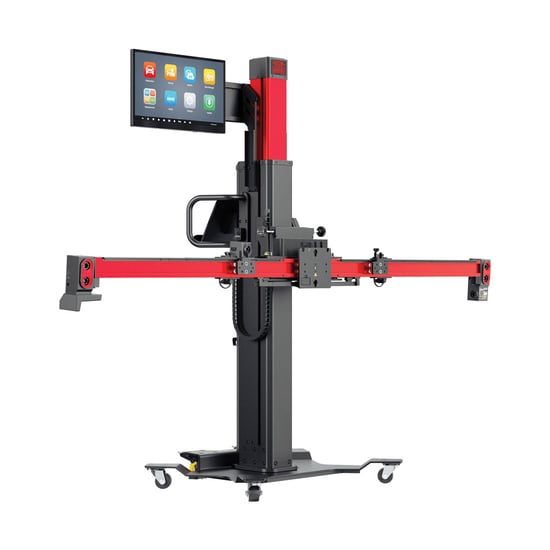

Autel MAXISYS ADAS IA900AST Wheel Alignment + ADAS System Calibration Frame + All Systems Targets

Autel MAXISYS ADAS IA900AST Wheel Alignment + ADAS System Calibration Frame + All Systems Targets

Manufacturer: Autel

Manufacturer: Autel

Category: Automotive Workshop Equipment

Availability: In Stock

Features

Product Description:

The MaxiSYS IA900AST Wheel Alignment and ADAS Calibration Frame enables the performance of four-wheel alignment and ADAS component calibration. The software includes illustrated alignment instructions, live readings, required tools, and adjustment locations displayed on the included 24ā€ touchscreen monitor.

The system provides alignment coverage for U.S., Asian, and European vehicles from 1996 and newer. Six high-resolution positioning and tracking cameras in the frame automatically monitor vehicle height on the shop lift. Robotic frame movement improves efficiency and alignment accuracy up to 0.02 degrees for precise measurements.

Autel MAXISYS ADAS Specs:

Manufacturer Autel
Condition New
Alignment Capability 4-Wheel Alignment + ADAS Calibration
Cameras 6 High-Resolution Positioning & Tracking Cameras
Display 24" Touchscreen Monitor
Vehicle Coverage U.S., Asian, and European Vehicles (1996+)
Measurement Accuracy 0.02 Degrees
Frame Movement Robotic Frame Movement
Warranty 1 Year

Ā

Key Features:

  • Frame capable of performing four-wheel alignment and ADAS calibration
  • Six high-resolution positioning and tracking cameras integrated into frame
  • 24ā€ touchscreen display mounted to frame unit
  • MaxiSYS software interface displays alignment measurements
  • Cameras automatically track vehicle height on shop lift
  • Robotic frame movement for efficient calibration
  • Alignment coverage for U.S., Asian, and European vehicles (1996 and newer)
  • Illustrated alignment instructions with live readings
  • Required tools and adjustment locations displayed on one screen
  • Includes four-wheel clamps with camera targets
  • Includes steering wheel lock and wheel chocks

Autel MAXISYS ADAS IA900AST Wheel Alignment & ADAS Frame Specifications:

  • 24in Touchscreen Monitor
  • Simulcast from MaxiSYS Ultra
  • MaxiSYS Ultra Tablet Cradle With Controls
  • MaxiSYS Interface Instead of PC for Wheel Alignment
  • Robotic Frame Movement
  • Precise Optical Measurement With 6 High Resolution Cameras
  • Self Calibrating Cameras
  • Cameras Automatically Track Vehicle Height On Lift

Autel MAXISYS IA900AST Wheel Alignment Software:

  • Vehicle inspection for tires, brakes, suspension, steering and more
  • Service recommendations with photos and notes
  • Live alignment reading display
  • Illustrated alignment instructions and adjustment locations

IA900A ADAS Calibration Software:

  • Fast and accurate frame placement within one minute
  • Step-by-step illustrated calibration instructions
  • Automatic ADAS target height adjustment
  • Calibration compensation for uneven floors

Frame Structure:

  • Folding Crossbar Design
  • 6ā€ Minimum Height
  • 7’ Maximum Height

Package Includes:

  • Autel MaxiSys MSULTRA Diagnostic Tablet with ADAS Upgrade
  • ADAS Upgrade Software
  • Pattern Board 0600/06
  • VW LDW Target CSC0601/01
  • Mercedes LDW Target CSC0601/02
  • Sliding Laser Plate
  • Mounted Tape Measure
  • Flip Up Reflector & Laser Position Ruler
  • Crossbar 0600/05
  • Push Button Power Lifter
  • Adjustable Base
  • Base Crossbar 0600/02
  • Base Holder 0600/01
  • ACC Reflector 0602/01
  • Wheel Clamp Lasers 0500/02
  • Wheel Clamps 0500/01
  • Honda LDW CSC0601/05
  • Honda LDW CSC0601/08-L
  • Honda LDW CSC0601/08-R
  • Honda / IA LDW CSC0601/09
  • Nissan / Infiniti LDW CSC0601/06-L
  • Nissan / Infiniti LDW CSC0601/06-R
  • Toyota LDW CSC0601/15
  • Nissan LDW CSC0601/03-L
  • Nissan LDW CSC0601/03-R
  • Toyota / Lexus LDW CSC0601/11
  • Mitsubishi Lane Keep Target Board CSC0601/22-L
  • Mitsubishi Lane Keep Target Board CSC0601/22-R
  • Target Board Holder 0600/22
  • Cadillac AVM CSC1004/06
  • Center Axis Laser 0500/04
  • Honda AVM CSC1004/02
  • Honda AVM CSC1004/03
  • Nissan RCW CSC1006/03
  • Mercedes RCW CSC1006/01
  • VW RCW CSC0806/01
  • VW AVM CSC0804/01
  • Radar Calibration Plate 0602/02
  • Radar Calibration Box 0605/01
  • Corner Reflector 0802/01
  • Night Vision Calibration Box 0603/01
  • Night Vision Calibration 0803/01

Frame Distance Measuring Upgrade:

  • Digital Tape Measure Crossbar Brackets
  • Front Wheel Targets
  • Placement Boards for Alignment Lift
  • Center Digital Tape Measure Bracket
  • Digital Tape Measures for Accurate Frame Placement
