Product Description:

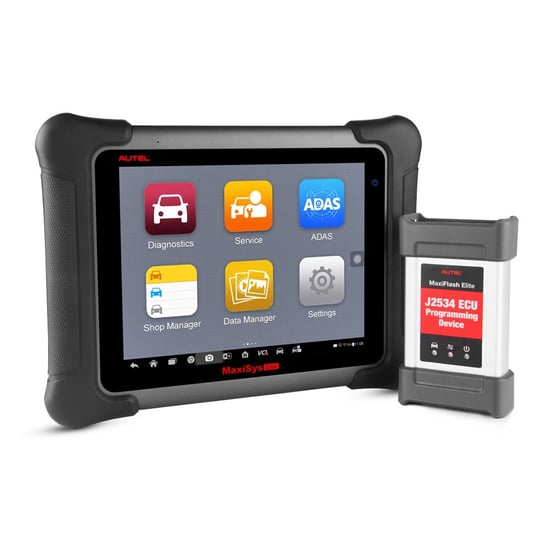

Autel MaxiSYS Elite is a professional OE-level automotive diagnostic scanner designed for advanced vehicle diagnostics, ECU coding and programming. Equipped with a powerful NVIDIA Tegra 4 processor and a 9.7-inch Retina display, the device performs comprehensive system diagnostics, active tests and advanced service functions quickly and accurately.
Specifications:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
The MaxiSYS Elite supports full system diagnosis for more than 80 U.S., Asian and European vehicle brands. With built-in SAE J2534 pass-thru programming interface, it allows ECU coding and module programming on compatible vehicles. The Android-based platform provides fast operation, wireless connectivity and intelligent workshop management.
Main Features:
- Full system diagnostics and all OBDII functions
- Bi-directional active tests
- ECU coding and programming capability
- SAE J2534-1 & J2534-2 pass-thru programming
- Auto VIN vehicle identification
- Live data graphing and freeze frame
- Wireless WiFi and Bluetooth connectivity
- Remote technical support
- Data logging and troubleshooting support
- Workshop management and report storage
Advanced Service Functions:
- Oil Reset
- EPB Reset
- ABS Bleeding
- SAS Calibration
- BMS Reset
- DPF Regeneration
- Throttle Matching
- Injector Coding
- IMMO Matching
- Air Conditioning Reset
- Tire Pressure Reset
Autel MaxiSYS Elite Technical Specifications:
| Operating System | Android 4.4.4 KitKat |
| Processor | NVIDIA Tegra 4 Quad-core 1.8GHz |
| Memory | 2GB RAM + 32GB Internal Storage |
| Display | 9.7-inch Retina Touchscreen (2048×1536) |
| Connectivity | WiFi, Bluetooth, Ethernet, USB 3.0, HDMI, SD Card |
| Camera | Rear 8MP / Front 2MP |
| Battery | 3.7V 13600mAh Lithium-polymer |
| Operating Time | Up to 14 hours |
| Power Supply | DC 12V/3A |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Protocols | ISO9141-2, ISO14230-2, ISO15765-4, SAE-J1850 VPW/PWM, CAN ISO11898, GM UART, Honda Diag-H, TP2.0, TP1.6, SAE J1939, SAE J1708 |

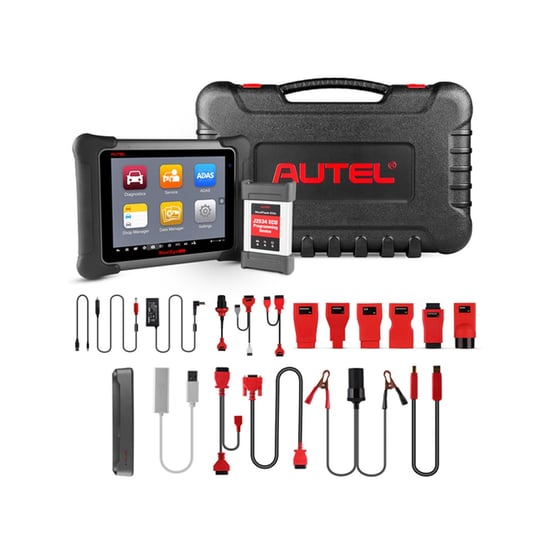

Package Includes:

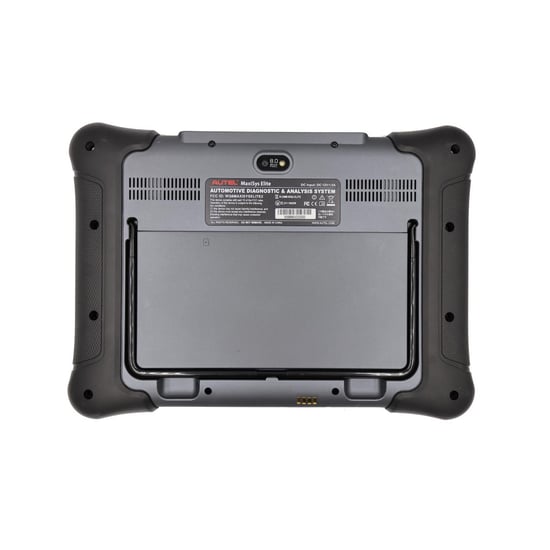

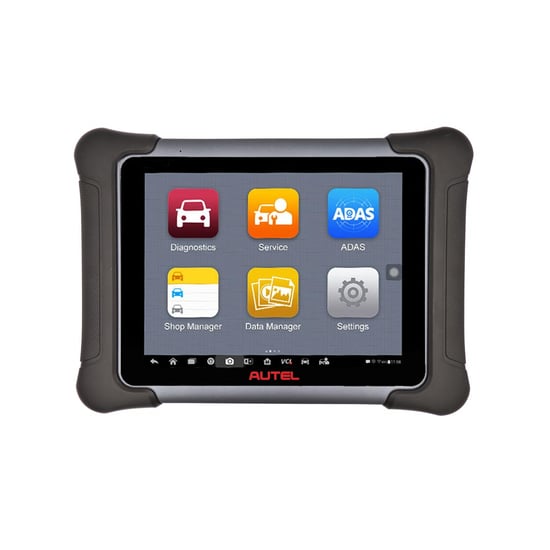

- MaxiSYS Elite Tablet

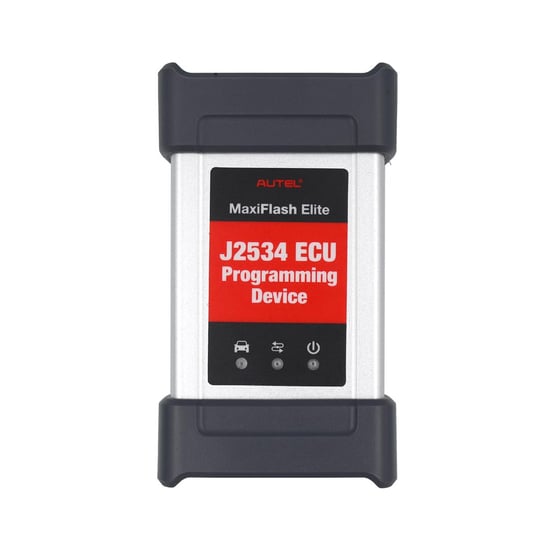

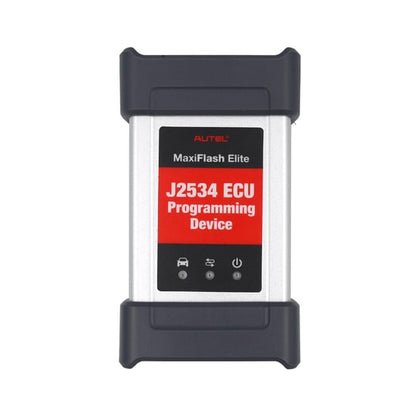

- J2534 VCI Programming Interface

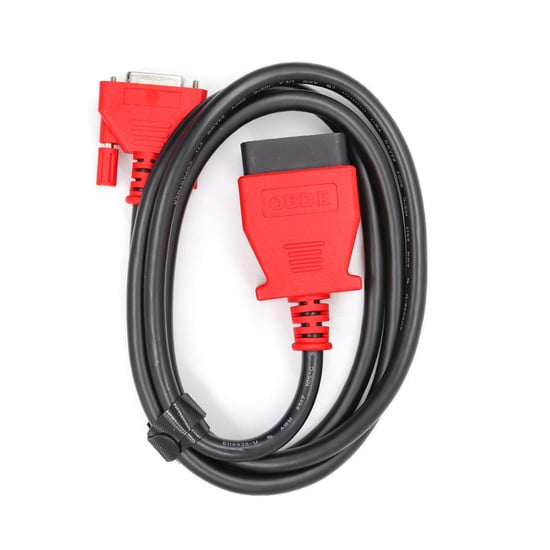

- OBDII Main Cable

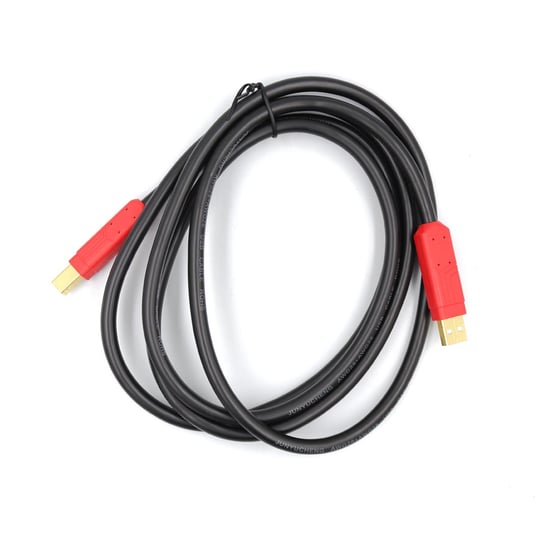

- USB Cable
- Ethernet Cable

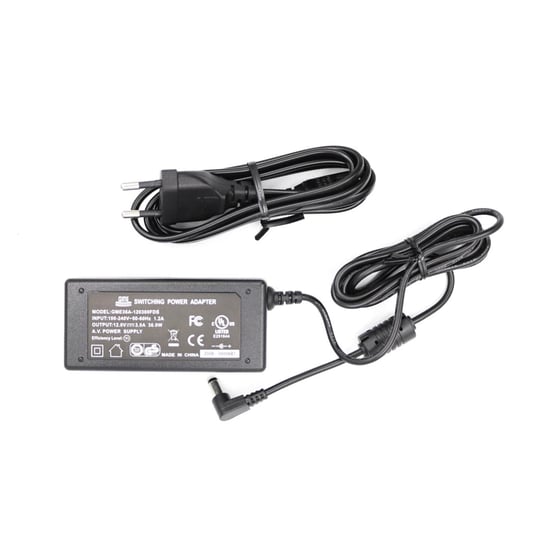

- AC/DC Power Adapter

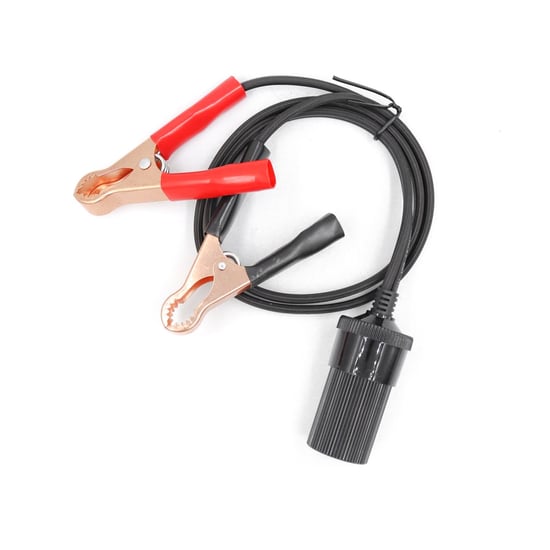

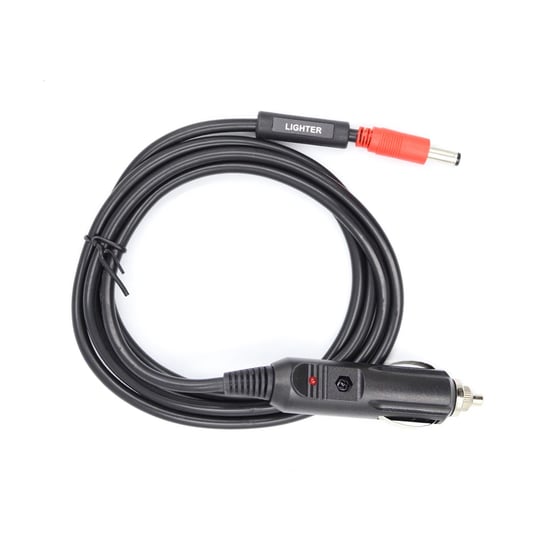

- Cigarette Lighter Cable

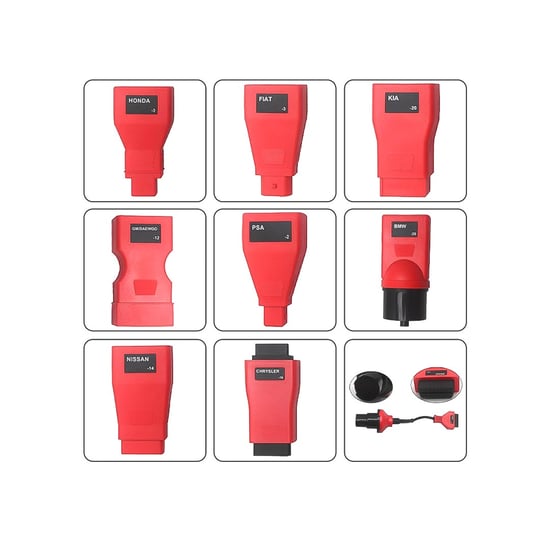

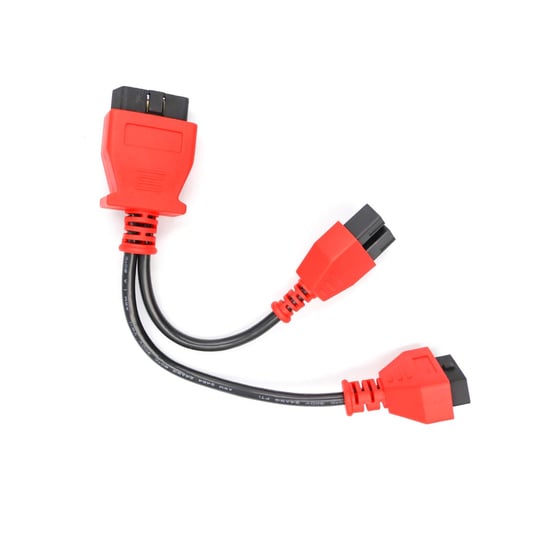

- Vehicle Adapters Set
- Docking Charging Station

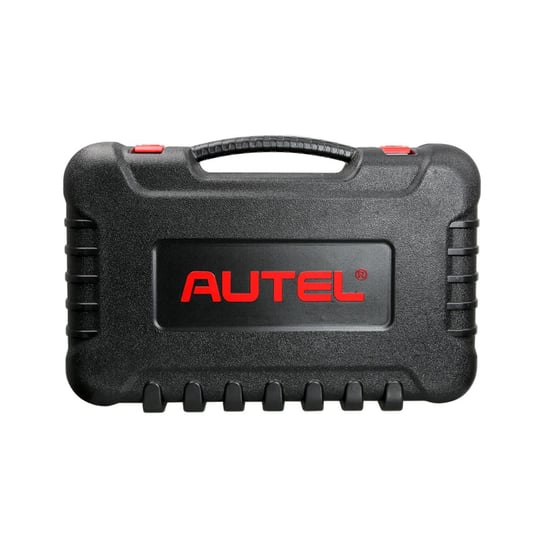

- Carrying Case
- User Manual
