Product Description:

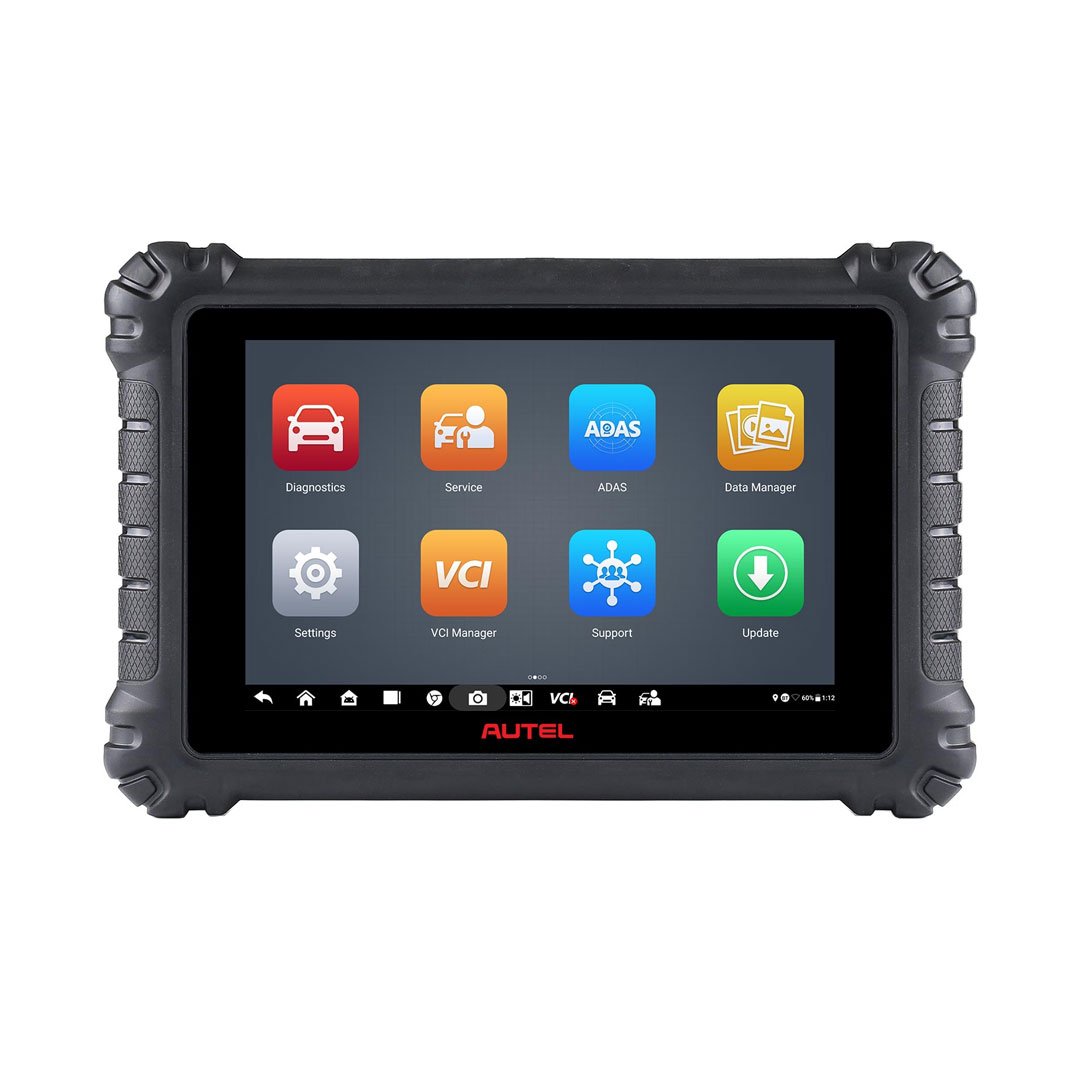

The Autel MaxiSYS MS906 Pro is an advanced wireless automotive diagnostic tablet compatible with U.S., Asian and European vehicles (1996 and newer). The 8-inch Android-based touchscreen tablet performs complete system diagnostics including all-system scans with ADAS identification, reading and clearing codes, freeze frame data, live data display, coding, adaptations and bi-directional active testing.
Specifications:
- 2 Years update subscription included
- 1 Year Warranty
- IP Restriction (works only in India, Middle East and Africa)

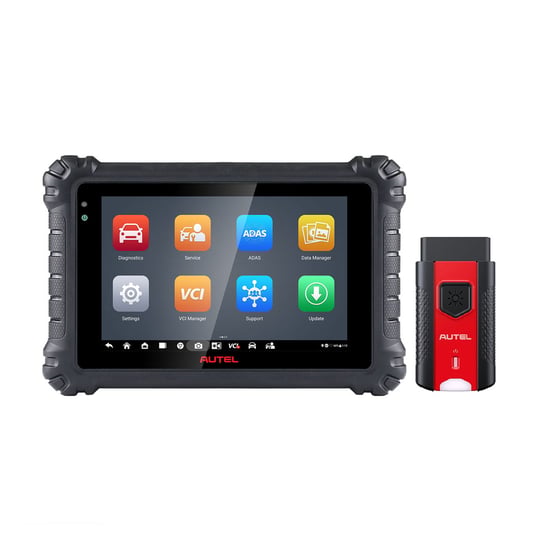

The MS906 Pro includes the Bluetooth-enabled MaxiVCI V200 communication interface supporting the latest vehicle communication protocols. It allows technicians to perform AutoVIN identification, Pre- and Post-scan reports, ECU coding, adaptations and guided functions for faster vehicle repair and maintenance.
Main Features:
- Full system diagnostics and Auto Scan
- AutoVIN vehicle identification
- Bi-directional control and active tests
- ECU coding and module adaptations
- Customizable Pre & Post scan reports
- FCA AutoAuth secure gateway access
- Cloud report storage and data management
- ADAS calibration capable (with optional system)
- Battery and charging system analysis (optional BT506)
- Wireless Bluetooth communication via MaxiVCI V200
- Guided functions for VW/Audi/Skoda
Service Functions:
- Oil Reset
- EPB Brake Reset
- TPMS Reset
- BMS Battery Reset
- ABS Bleeding
- DPF Regeneration
- SAS Calibration
- Injector Coding
- Throttle Adaptation
- Airbag Reset
- Gear Learning
- Suspension Calibration
- IMMO Key Functions (basic vehicles)
- 25+ Maintenance Service Functions
Autel MaxiSYS MS906 Pro Technical Specifications:
| Processor | Qualcomm 660 Octa-core (2.2GHz + 1.8GHz) |
| Operating System | Android 7.0 |
| Memory | 4GB RAM + 128GB Storage |
| Display | 8-inch LCD Touchscreen (1920 × 1200) |
| Battery | 11,600mAh Lithium-polymer |
| Camera | Front 16MP / Rear 16MP |
| Connectivity | Wi-Fi, Bluetooth (MaxiVCI V200), USB |
| Vehicle Identification | AutoVIN, Manual VIN, Automatic Selection |
| ADAS Support | Yes (optional calibration system required) |
| Cloud Services | Supported |
| Battery & Electrical Testing | Supported (BT506 optional) |
| Operating Temperature | 0°C to 50°C |

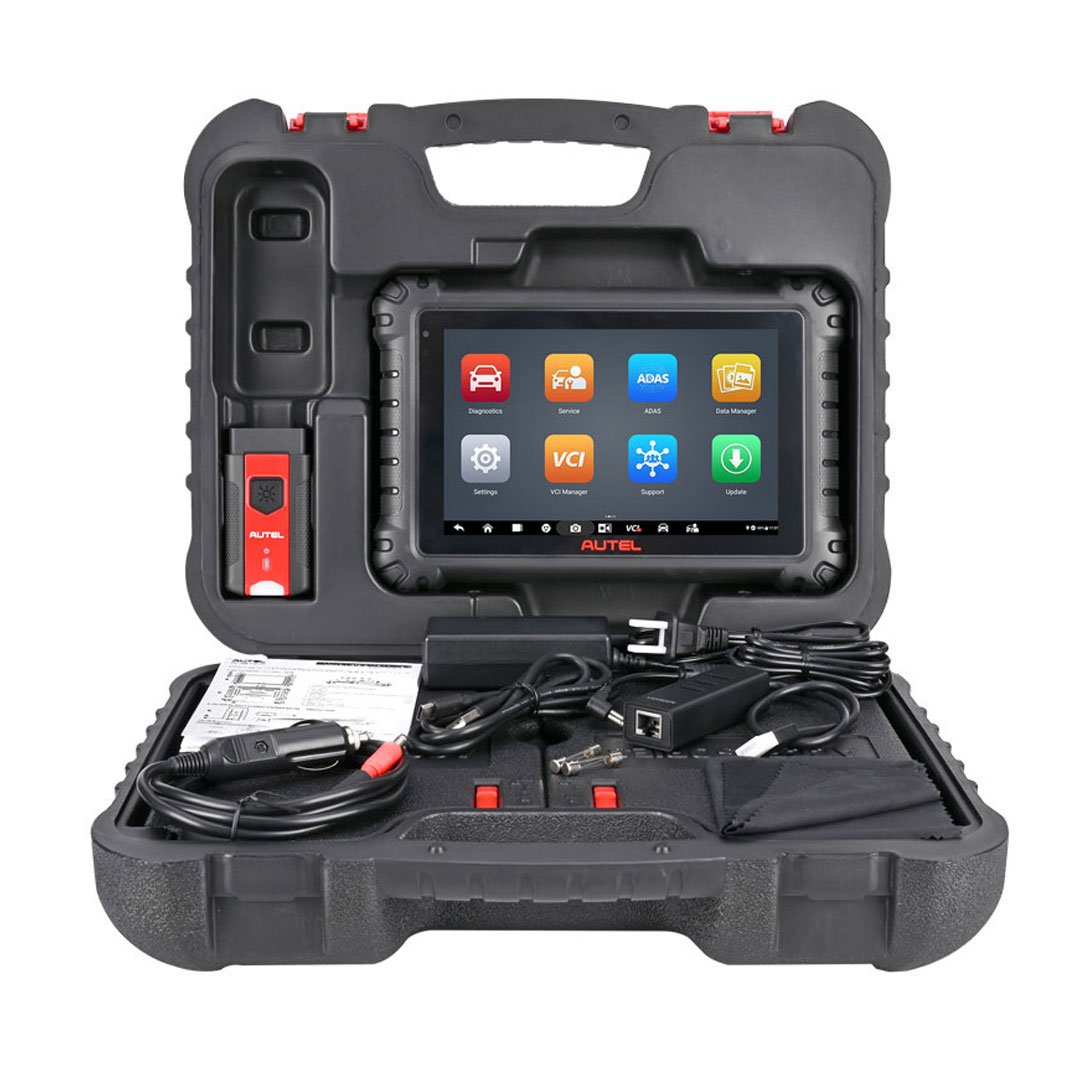

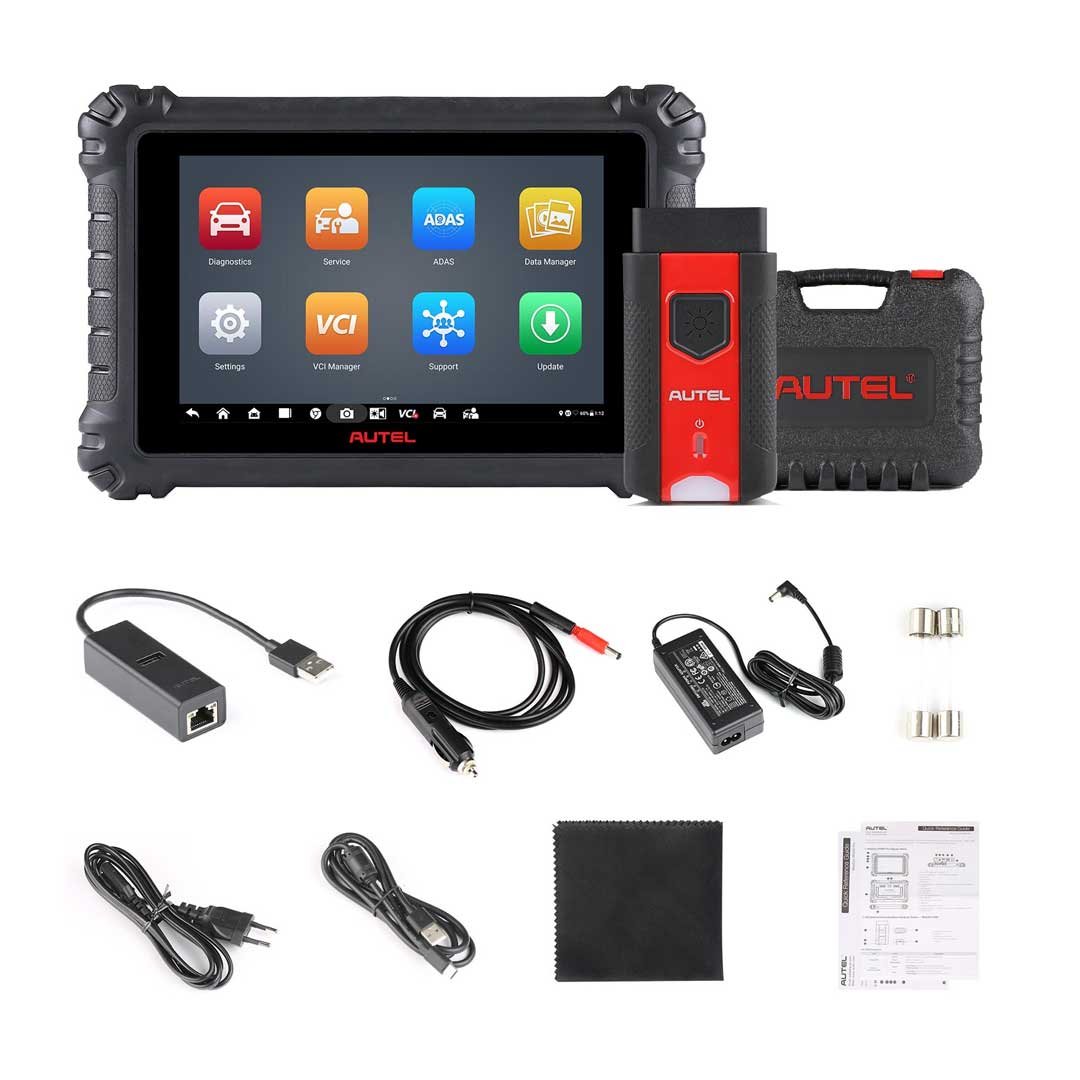

Packing List:
- Autel MS906 Pro Tablet
- MaxiVCI V200 Bluetooth Interface
- Main OBDII Cable
- USB Cable
- Power Adapter
- Charging Cable
- Carrying Case
- User Manual
