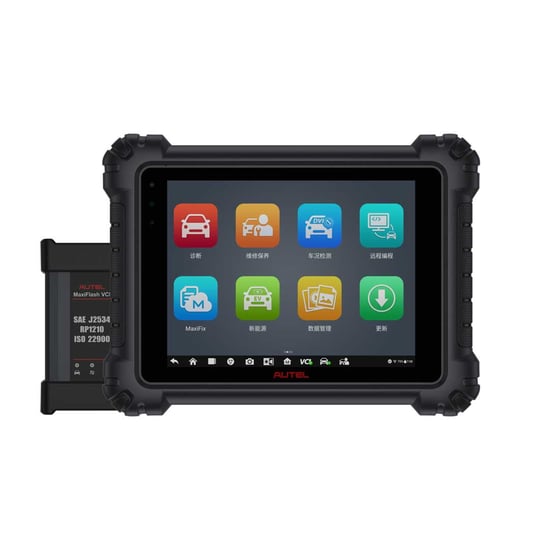

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device
Product Description:
The Autel MaxiSYS MS909 is a professional Android-based advanced diagnostic tablet powered by a Qualcomm 660 octa-core processor and 128GB storage memory. It features a powerful MaxiFlash VCI/J2534 supporting the latest DoIP, D-PDU and CAN FD communication protocols. The MS909 includes intelligent diagnostics, topology mapping and guided repair information that leads technicians from fault code to repair and final testing.
Important Notes:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
Highlights:
- OE-level diagnostics for 80+ US, Asian and European vehicles
- Advanced ECU coding and programming
- Topology module mapping for supported vehicles
- Automatic system & software updates
- Interactive data logging with Autel support
- Workshop management and cloud data manager
- Front and rear cameras
- Rechargeable battery providing up to 8 hours usage
Diagnostics Functions:
- Automatic vehicle detection
- DTC analysis and troubleshooting
- Read and erase fault codes
- Live data and freeze frame data
- Full system diagnostics
Service Functions:
- ABS Bleeding
- EPB Reset
- Oil Reset
- TPMS Reset
- DPF Regeneration
- Battery Management System (BMS)
- Immobilizer (IMMO)
- Steering Angle Sensor (SAS)
- Injector Correction
- Fuel Pump Learned Value Reset
- LDWS Camera Alignment

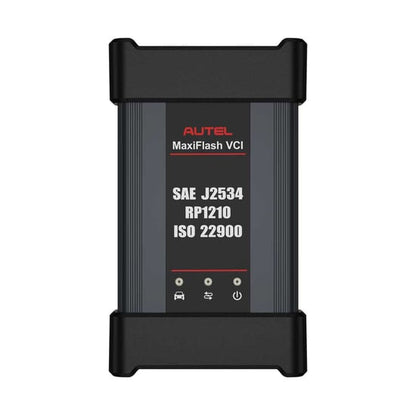

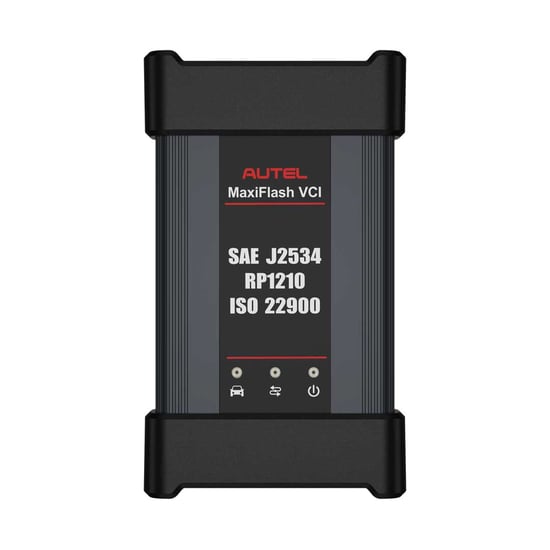

MaxiFlash VCI Capabilities:
- J2534, D-PDU and RP1210 Pass-Thru ECU programming
- Wireless Bluetooth, Wi-Fi and USB communication
- Up to 100m wireless range (Bluetooth)
- Supports OEM software reprogramming and ECU replacement
Autel MaxiSYS MS909 Specifications:
| Operating System | Android 10 |
| Processor | Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB Storage |
| Display | 9.7-inch TFT-LCD Touchscreen (2048 × 1536) |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) Bluetooth 5.0 + BR/EDR GPS USB 2.0 (2 Type-A + Mini USB) HDMI 2.0 SD Card (up to 256GB) |
| Camera | Front 16MP & Rear 16MP Autofocus Camera |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Audio | Microphone, Dual Speakers, 3.5mm Headset Jack |
| Battery | 15000mAh 3.8V Lithium-Polymer |
| Charging | 12V AC/DC Power Supply (0°C – 45°C) |
| Input Voltage | 12V / 1.3A Adapter |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 304.4 × 227.8 × 42.5 mm |
| Weight | 1.66 kg |
| Protocols | DoIP, CAN FD, ISO15765, SAE J1939, UDS, GMLAN, ISO9141, ISO14230, Chrysler SCI, Honda Diag-H, Ford UBP, BMW DS2/DS1, KW81/KW82, SAE J1708, SAE J1850 PWM & VPW |

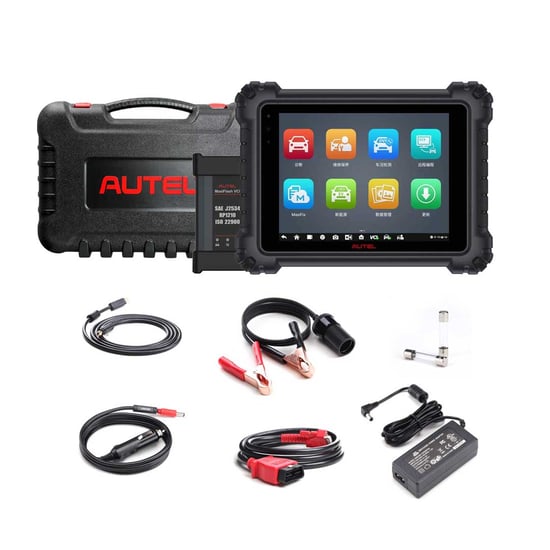

MS909 Package Includes:
- MaxiSYS MS909 Tablet
- MaxiFlash VCI
- Main Cable V2.0
- USB Cable
- AC/DC Adapter
- Cigarette Lighter Cable
- Light Fuse (2pcs)
- Clipper Cable
- Quick Reference Guide
- Soft Cloth
- Carrying Case
FREE Bonus: Autel MaxiVideo MV480 Digital Inspection Videoscope
The Autel MaxiVideo MV480 is a professional inspection camera designed to view hard-to-reach vehicle areas. It features dual cameras, HD recording and adjustable LED lighting, making it ideal for inspecting engine components, wiring and internal mechanical parts.
MV480 Key Features:
- 1920×1080 HD recording
- Dual front & side cameras
- 4.1" color LCD display
- Flexible waterproof inspection cable
- Adjustable LED illumination
- Up to 4 hours battery operation
MV480 Package Includes:
- MV480 Main Unit
- Camera Probe & Cable
- Magnet & Hook
- Micro SD Card
- Charger
- USB Cable
- Carrying Case
- User Manual
