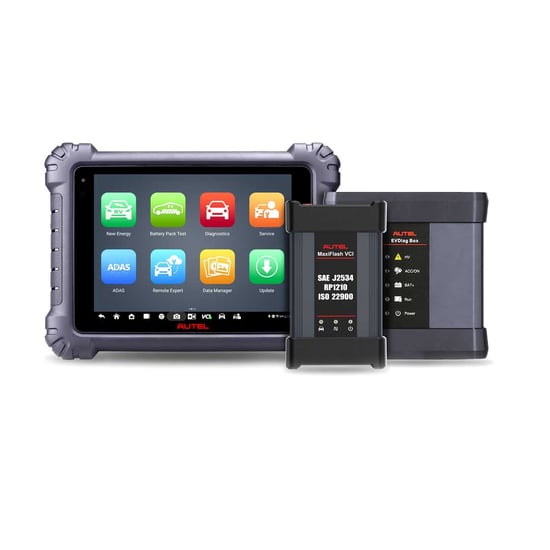

Autel MaxiSYS MS909EV Tablet Diagnostic Tool
Product Description:
The Autel MaxiSYS MS909EV is an advanced professional diagnostic tablet designed for electric, hybrid, gasoline and diesel vehicles. Equipped with a dedicated EVDiag Box and MaxiFlash VCI, it provides comprehensive high-voltage system diagnostics, battery analysis and guided repair procedures. With detailed graphics, wiring diagrams and step-by-step instructions, the MS909EV delivers a complete solution for modern EV and hybrid vehicle servicing.
General Information:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
Main Capabilities:
- Diagnostics for electric, hybrid, gasoline and diesel vehicles
- High-voltage battery system analysis (SOC & SOH)
- Read and erase fault codes
- Live data monitoring
- Step-by-step disassembly and repair instructions
- Automatic updates via internet
- Interactive data logging with Autel support
- Cloud-based workshop management
EV Diagnostic Functions:
- High-voltage system diagnostics
- Battery pack state of health analysis
- Component activation tests
- OBDII diagnostics
- Guided troubleshooting procedures
- Detailed high-voltage component diagrams
Autel MaxiSYS MS909EV Specifications:
| Operating System | Android 10 |
| Processor | Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB Storage |
| Display | 9.7-inch TFT-LCD Touchscreen (2048 × 1536) |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) Bluetooth 5.0 + BR/EDR GPS USB 2.0 (2 Type-A + Mini USB) HDMI 2.0 SD Card (up to 256GB) |
| Camera | Front 16MP & Rear 16MP Autofocus Camera |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Audio | Microphone, Dual Speakers, 3.5mm Headset Jack |
| Battery | 15000mAh 3.8V Lithium-Polymer |
| Charging | 12V AC/DC Power Supply (0°C – 45°C) |
| Input Voltage | 12V / 1.3A Adapter |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 304.4 × 227.8 × 42.5 mm |
| Weight | 1.66 kg |
| Supported Protocols | DoIP, CAN FD, ISO15765, SAE J1939, UDS, GMLAN, ISO9141, ISO14230, Chrysler SCI, Honda Diag-H, Ford UBP, BMW DS2/DS1, KW81/KW82, SAE J1708, SAE J1850 PWM & VPW |

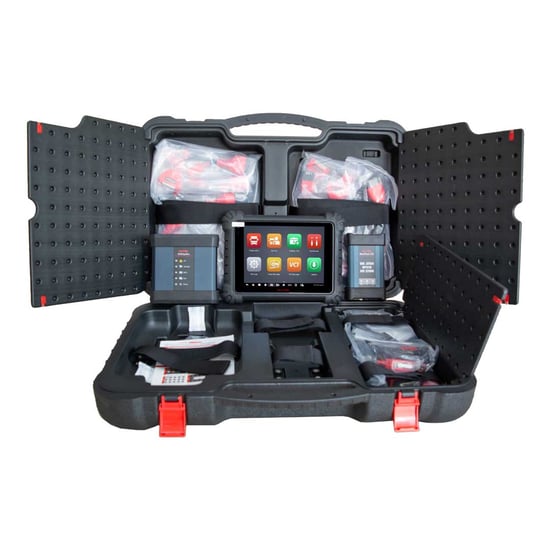

Package Includes:

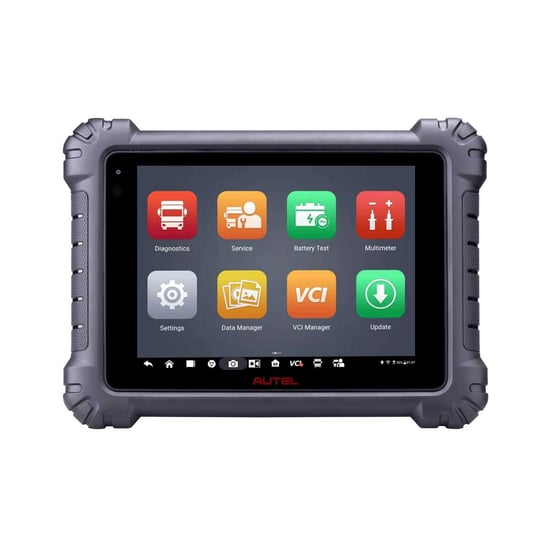

- MaxiSYS MS909EV Tablet

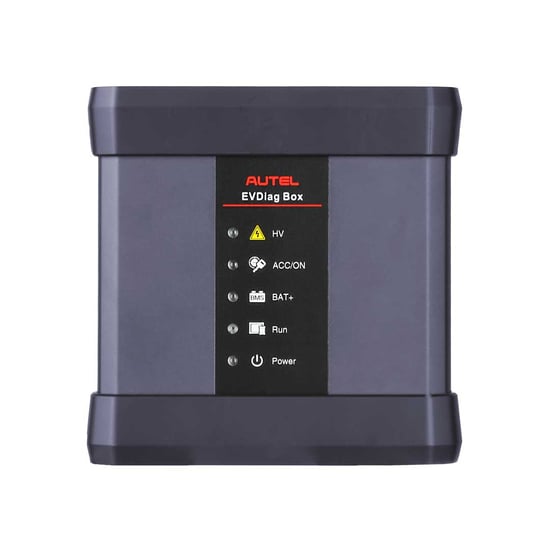

- EVDiag Box

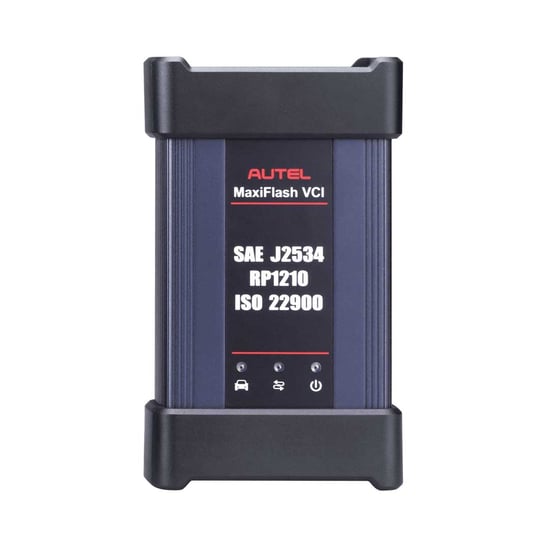

- MaxiFlash VCI
- Main Diagnostic Cable
- OBD Adapter Set
- USB Cable
- AC/DC Power Adapter
- Carrying Case
- User Manual
