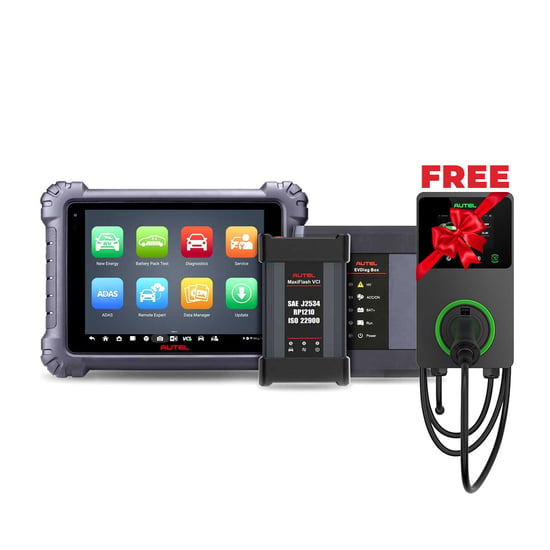

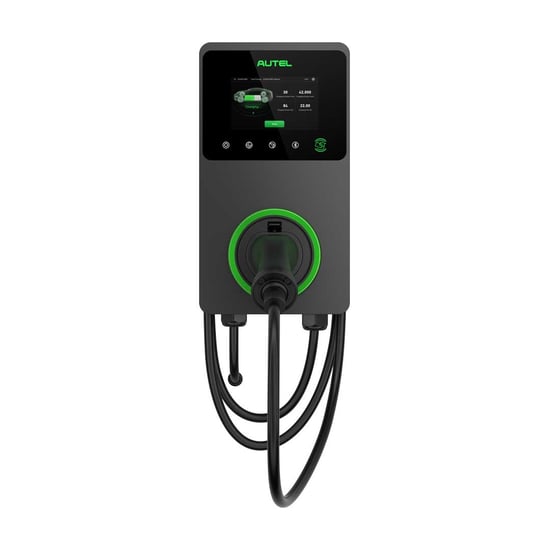

Autel MaxiSYS MS909EV Tablet Diagnostic Tool + FREE Autel MaxiCharger AC Wallbox EU AC W22 Bundle

Autel MaxiSYS MS909EV Tablet Diagnostic Tool + FREE Autel MaxiCharger Product Description:
Autel MaxiSYS MS909EV Tablet Diagnostic Tool For Electric, Hybrid, Gas And Diesel Vehicles With Its Dedicated EVDiag Box + FREE Autel MaxiCharger
Diagnostic Tools From Autel with Product Number: MK3839
This Weight Product: 28000g
Autel MaxiSYS MS909EV Tablet Diagnostic Tool + FREE Autel MaxiCharger Specs:
Manufacturer: Autel
Condition: New

Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).

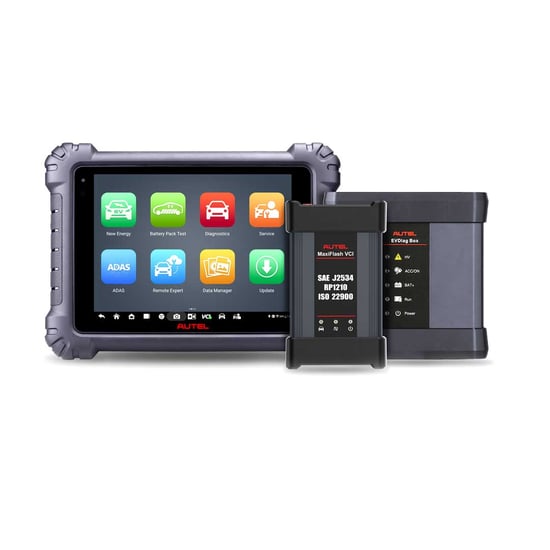

The MaxiSys MS909EV is a 9.7-inch touchscreen advanced diagnostics tablet compatible with U.S., Asian, and European electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. Includes one year of software updates and is covered by one-year limited warranty.

Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
State of Charge and State of Health analysis for true battery condition
Perform battery analysis via OBDII port, specialty cables and jumpers
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MaxiSYS MS909EV Tablet Diagnostic Tool Specifications :

Operating System
Android 10.0

Processor

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory
4GB RAM & 128GB On-board Memory

Display
9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity

Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

BT V5.0 + BR/EDR

GPS

USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

HDMI 2.0

SD Card (Support up to 256GB)


Camera

Rear: 16 Megapixel, Autofocus with Flashlight

Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

Microphone

Dual Speakers

3-Band 3.5 mm stereo/standard headset jac

Power and Battery

15000mAH 3.8V lithium-polymer battery

Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/1.3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions(W x H x D)
304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight
1.66kg (3.66 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


Autel MaxiSYS MS909EV Tablet Diagnostic Tool Comparison :



MS909EV

Ultra EV

MS909

MS919

Ultra

Hardware

Connection

Bluetooth MaxiFlash VCI

Bluetooth MaxiFlash VCMI

Bluetooth MaxiFlash VCI

Bluetooth MaxiFlash VCMI

Bluetooth MaxiFlash  VCMI

Screen

9.7inch touchscreen

12.9inch touchscreen

9.7inch touchscreen

9.7inch touchscreen

12.9inch touchscreen

Battery

15,000mAh

18,000mAh

15,000mAh

15,000mAh

18,000mAh

Processor

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

Memory

128GB SSD/ 4GB RAM

256GB SSD/ 4GB RAM

128GB SSD/ 4GB RAM

128GB SSD/ 4GB RAM

256GB SSD/ 4GB RAM

Camera

16MP rear/16MP front

16MP rear/5MP front

16MP rear/16MP front

16MP rear/16MP front

16MP rear/5MP front

Docking Station



Included




Included

EVDiag Box

Included

Included





Software

Operating System

Android 10.0

Android 7.0

Android 10.0

Android 10.0

Android 7.0

Automatic Detection

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Secure Gateway Access

Authorized FCA Access
 With AutoAuth   account

Authorized FCA Access
With AutoAuth account

Authorized FCA Access
 With AutoAuth account

Authorized FCA Access
With AutoAuth   account

Authorized FCA Access
 With AutoAuth     account

License Plate Reader

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Vehicle Coverage

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S.,European and Asian electric, gas and diesel, and hybrid vehicles

OBDII Test Modes

All 10 test modes

All 10 test modes

All  10 test modes

All 10 test modes

All 10 test modes

Service Resets

36 service features

36 service features

36 service features

36 service features

36 service features

Diesel PM

Reset  diesel emissions
Light&medium duty vehicles

Reset diesel emissions
Light&medium duty vehicles

Reset diesel emissions
Light&medium duty vehicles

Reset diesel emissions
Light&medium duty vehicles

Reset diesel emissions
Light&medium     duty vehicles

System Diagnostics

Access all modules in all systems

Access all modules in all systems

Access  all modules in all systems

Access all modules in all systems

Access all modules in all systems

High-voltage System Diagnostics

Diagrams of high-voltage system block

Diagrams of high-voltage system block





Battery Pack Diagnostics

SOC and SOH analysis

SOC and SOH analysis





Component Activations

Bi-directional control

Bi-directional control

Bi-directional control

Bi-directional control

Bi-directional control

Enhanced Functions

Coding&adaptations

Coding&adaptations

Coding&adaptations

Coding&adaptations

Coding     & adaptations

ADAS Calibration

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS  Upgrade & Frame Kit
        Purchase required

Cloud Services

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Repair Assist

Guided procedures with DTC analysis
& fault code solutions

Guided procedures with DTC analysis
& fault code solutions

Guided procedures with DTC analysis
& fault code solutions

Guided procedures with DTC analysis
& fault code solutions

Guided procedures with DTC analysis
& fault code solutions

Topology Module Mapping

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Relevant Cases

DTC troubleshooting

DTC troubleshooting

DTC troubleshooting

DTC troubleshooting

DTC troubleshooting

Technical Service Bulletins

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Oscilloscope



VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester



VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

VCMI 5-in-one devic,  VCI multimeter, waveform generator, CAN Bus tester

Split ScreenDisplay






View multiple functions at once

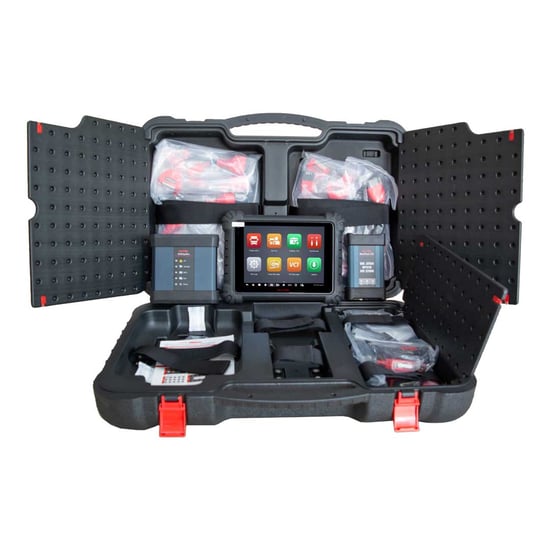

Autel MaxiSYS MS909EV Tablet Diagnostic Tool Accessories :
