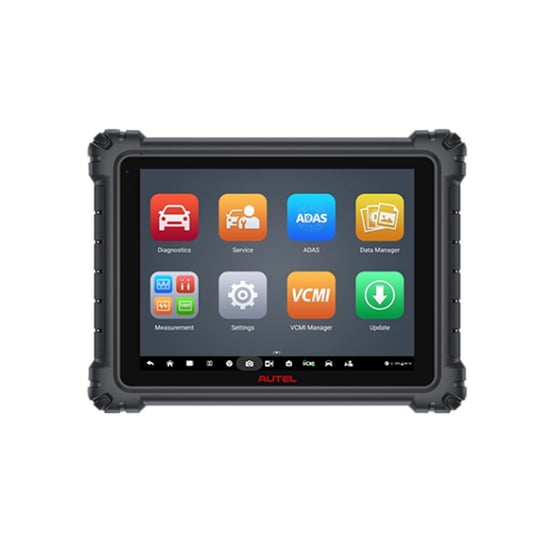

Autel MaxiSys MS919 Automotive Diagnostic Tool with 5-in-1 VCMI
Product Description:
The Autel MaxiSys MS919 is a professional advanced diagnostic tablet equipped with the powerful MaxiFlash VCMI 5-in-1 communication and measurement interface. It delivers OE-level diagnostics, ECU coding and programming, topology mapping and intelligent repair guidance. The VCMI integrates oscilloscope, multimeter, waveform generator and CAN BUS tester, making the MS919 a complete diagnostic and electrical testing solution for modern vehicles.
General Information:
- 2 Years update subscription included
- IP Restriction (works only in India, Middle East and Africa)
Main Features:
- OE-level all systems diagnostics
- ECU coding and programming
- Dynamic topology module mapping
- 36+ service functions
- Guided troubleshooting with repair information
- Pre-scan and post-scan reporting
- Cloud-based data manager and remote support

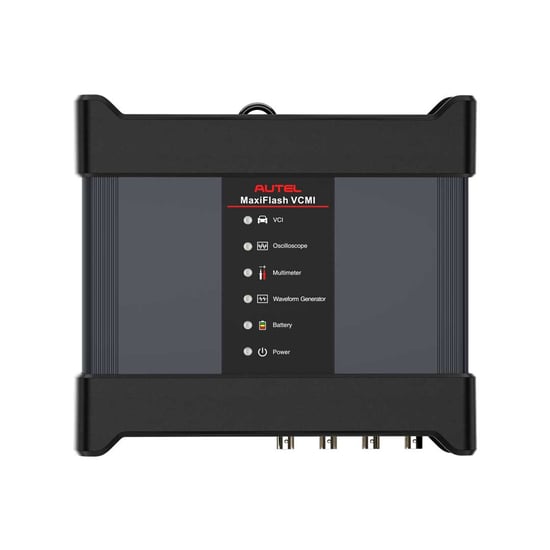

5-in-1 MaxiFlash VCMI Functions:
- Vehicle communication interface
- 4-channel oscilloscope
- Waveform generator
- Multimeter
- CAN BUS tester
Supported Protocols & Technologies:
- D-PDU / J2534 / RP1210 protocols
- CAN FD and DoIP high-speed communication
- Secure gateway access
- Intelligent diagnostics and repair guidance
- Topology module fault mapping
Autel MaxiSys MS919 Specifications:
| Operating System | Android 10 |
| Processor | Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB Storage |
| Display | 9.7-inch TFT-LCD Touchscreen (2048 × 1536) |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) Bluetooth 5.0 + BR/EDR GPS USB 2.0 (2 Type-A + Mini USB) HDMI 2.0 SD Card (up to 256GB) |
| Camera | Front 16MP & Rear 16MP Autofocus Camera |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Audio | Microphone, Dual Speakers, 3.5mm Headset Jack |
| Battery | 15000mAh 3.8V Lithium-Polymer |
| Charging | 12V AC/DC Power Supply (0°C – 45°C) |
| Input Voltage | 12V / 1.3A Adapter |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 304.4 × 227.8 × 42.5 mm |
| Weight | 1.66 kg |
| Supported Protocols | DoIP, CAN FD, ISO15765, SAE J1939, UDS, GMLAN, ISO9141, ISO14230, Chrysler SCI, Honda Diag-H, Ford UBP, BMW DS2/DS1, KW81/KW82, SAE J1708, SAE J1850 PWM & VPW |

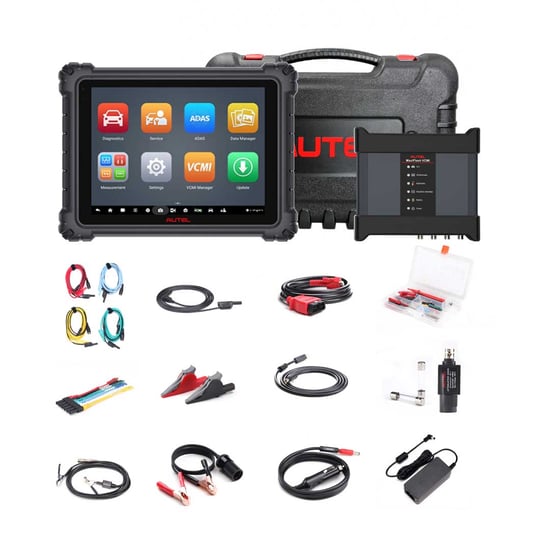

Package List:
- MaxiSys MS919 Tablet
- MaxiFlash VCMI Interface
- Main Diagnostic Cable
- USB Cable
- AC/DC Power Adapter
- Cigarette Lighter Cable

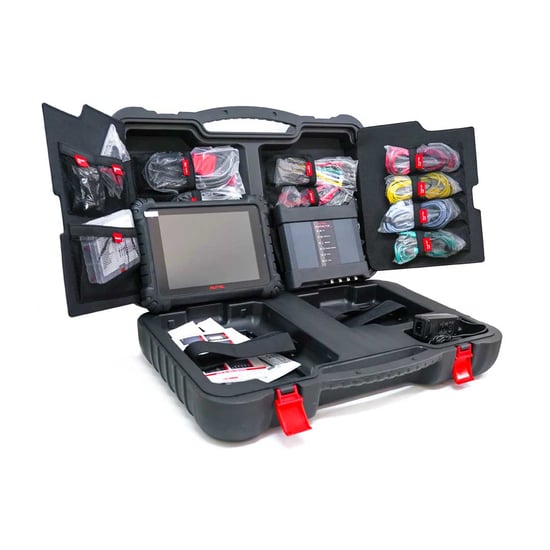

- Carrying Case
- User Manual
