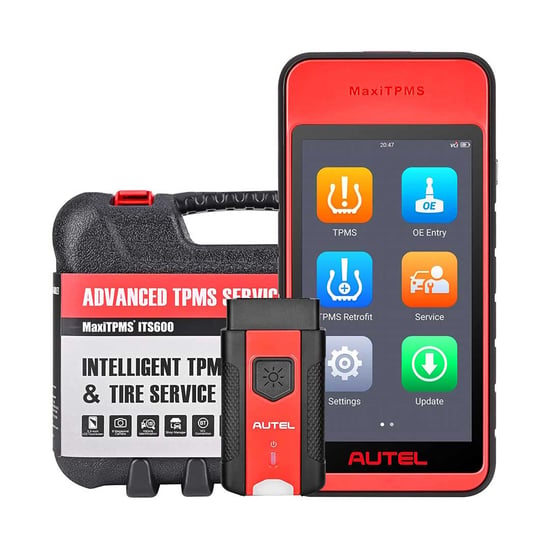

Autel MaxiTPMS ITS600 Wireless Android Tablet

Product Description:
Autel MaxiTPMS ITS600 Wireless Android Tablet that offers complete TPMS diagnostics and service functions
TPMS Service From Autel with Product Number: MK7358
This Weight Product: 1500g
Specs:
Manufacturer: Autel
Condition: New

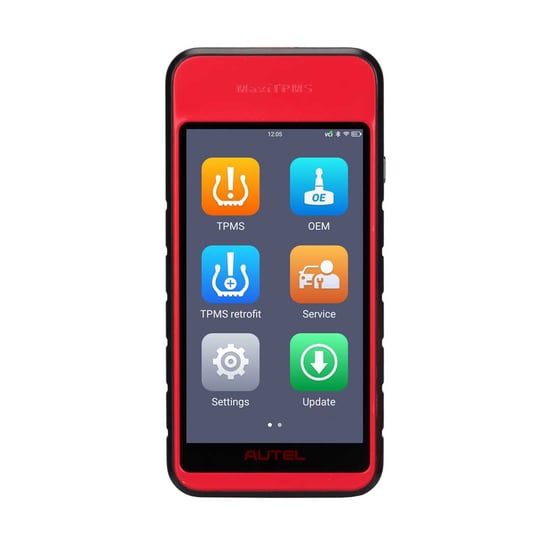

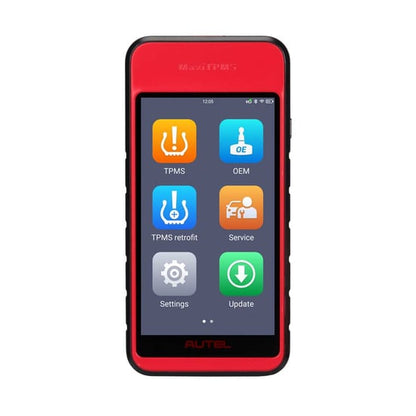

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.


EVERYTHING TPMS SOLUTIONS
• Activates, reads and relearns all known sensors
• Enhanced, at-a-glance diagnostics status screen
• Fast OBDII relearn for most vehicles
• Program MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor programming for faster service
• Four MX-Sensor program modes; batch program up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Tire pressure placard value reset
• Read/Clear TPMS system codes & view live data
• Free Wi-Fi software updates for the life of the tool


QUICK VEHICLE ID TECHNOLOGY
• Rapid VIN acquisition via optical VINScan
• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
• Identify MMY and sensor OE part number via VIN decoding
DIAGNOSTICS & SERVICE
• Oil light reset
• Electronic brake service
• Battery registration
• Steering angle reset
• Included service function updates are free for the life of the tool
• All systems diagnostics and maintenance services software available with Pro Upgrade purchase


EXPANDED TIRE SERVICE

DOT
• Quick & Easy Tire DOT Number Scan
• Tire Expiration Notice
• Tire Recall Lookup
Tread Depth & Brake Disc Wear
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

Recommended Use
Indoor

Operating System
Android 9.0

Processor
Quad-core processor (1.5 GHz)

Memory
1GB RAM DDR4 & 64GB ROM

Display
5.5-inch LCD capacitive touchscreen with 1280x720 resolution

Connectivity
Wi-Fi
USB 2.0, Type C
BT

Sensors
Light sensor for brightness auto adjust

Audio input/output
Input: N/A
Output: Beep

Power and Battery
3.8 V/5000 mAh lithium-polymer battery
Charges via 5 V AC/DC power supply

Battery Charging Input
5 V/2 A

Power Consumption
600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V

Operating Temp.
-10 to 45°C(14 to 113°F)

Storage Temp.
-20 to 60°C (-4 to 140°F)

Dimensions (W x H x D)
183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87")

Net Weight
368 g (0.8 lb.)

Protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66


 Product Comparison

Comparison
ITS600
TS608
TS508-WF
TS508

TPMS & TIRE SERVICE





Worldwide Vehicle Coverage 99%, Always Up-to-date
Yes
Yes
Yes
Yes

Easy Vehicle Identification
(AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input)
(AutoVIN, Manually select/input)
(Manually select)
(Manually select)

Activate, Read, Relearn All Known TPMS Sensors
Yes
Yes
Yes
Yes

Four Programming Options
Yes
Yes
Yes
Yes

Autel Sensor Batch Programming
(Up to 20 sensors)
(Up to 16 sensors)
(Up to 16 sensors)
(Up to 16 sensors)

OBDII Relearn / Automatic Relearn / Stationary Relearn
Yes
Yes
Yes
Yes

Relearn Procedure Guide
Yes
Yes
Yes
Yes

Exclusive TPMS Status Screen
Yes
Yes
Yes
Yes

Indicate sensor OE part number
Yes
Yes
Yes
Yes

Check MX-Sensor Information (ID, Battery, etc.)
Yes
Yes
Yes
Yes

Tire Pressure Placard Value Reset
Yes
Yes
Yes
Yes

Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn
Yes
Yes
Yes
Yes

Test Remote Key Entry (RKE)
Yes
Yes
Yes
Yes

Read/Clear Codes for TPMS System
Yes
Yes
Yes
Yes

Special Functions (e.g. View Live Data for TPMS System)
Yes
Yes



DOT Scan, Tire Expiration Notice, Tire Recall Lookup
Yes
(Coming soon with Autel-cloud based app)



Test Report
Yes
Yes
(View on PC)
(View on PC)

TPMS Software Update
Free Update
Annual Update Fee
Free Update
Free Update

DIAGNOSTICS





All System Diagnostics & All Maintenance Service
Free OLS, SAS, BMS, EPB;
Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service
Yes



Diagnostic Software Update
All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase.
New software updates for these features will require a new ITS600 Pro Upgrade purchase.
Annual Update Fee



SOFEWARE





OPERATING SYSTEM
Android 9.0
Android 4.4



HARDWARE





Display
5.5 inch TFT LCD-touch, 1280×720
7 inch TFT LCD-touch, 1024×600
2.8 inch TFT LCD, 320×240
2.8 inch TFT LCD, 320×240

Camera
8 MP




Flash / RAM / SD
64GB / 1G; SD card up to 64G (Optional)
32G / 1G; SD card up to 32G (Optional)
16M / 3M
16M / 3M

Lithium-ion Battery
3.8V/5000mAh
3.7V/5000mAh
3.7V/3200mAh
3.7V/3200mAh

Vibration reminder, Microphone voice remote assistance
Yes




ACCESSORIES





Tread Depth & Brake Disc Wear Examiner TBE200 / TBE100
(Sold separately)




Thermal printer
(Sold separately)
