Product Description:
New Autel MaxiTPMS TBE200 Laser Tire Tread Depth & Brake Disc Wear 2-in-1 Tester With Dual Camera Real-time Data Examiner.
The MaxiTPMS TBE200 is a laser-enabled tire tread depth and brake disc wear examiner that provides quick and accurate wear measurements. It allows brake disc wear measurement without removing the tires.
The device features a 1.65” AMOLED super retina touchscreen that displays real-time measurement data curves. TBE200 provides uneven wear analysis and detailed replacement and maintenance suggestions for fast tire service.
The dual cameras enable users to document tire wear and damage and scan the Tire Identification Number (TIN). The tool can be used independently or paired with ITS600 to view and print detailed TPMS reports.
Laser Measurement:
- Tire tread depth and brake disc wear measurement in one tool
- No need to remove wheel during measurement
- Laser measurement with 0.1 mm accuracy
- Full tread measurement capability
- Quick check for tread depth and brake disc
Real-Time Tire Health Analysis:
- Real-time measurement data display on touchscreen
- Measurement data curve visualization
- Uneven tire wear analysis
- Detailed test results for individual tire tread and brake disc
- Replacement and maintenance suggestions
- Tire replacement and brake disc replacement alerts
- Tire rotation and alignment service suggestions
- DOT scan support
- Tire expiration notice
- Tire recall lookup
- Capture photos of tire wear and damage
Comprehensive Test Report:
- Full TPMS health report
- Tire tread depth analysis
- Brake disc wear characteristics
- Repair tips and maintenance recommendations
- Requires ITS600 for full TPMS report generation
QR Code Report Sharing:
- Generate QR codes for measurement reports
- Download reports via smartphone or tablet
- Easy report sharing with customers
Device Features:
- Processor: 4× ARM Cortex-A35 (1.5 GHz)
- Memory: 1GB RAM LPDDR3 & 4GB ROM
- Display: 1.65” AMOLED Touchscreen (348×442 resolution)
- Connectivity: Wi-Fi, USB 2.0 Type-C
- Cameras: 1MP macro camera & 8MP zoom camera
- Audio Output: Beep
- Battery: 3.7V / 3000mAh lithium-ion battery
- Battery Life: Up to 8 hours continuous use
- Charging Input: 5V / 1.5A
- Operating Temperature: -10°C to 45°C
- Storage Temperature: -20°C to 60°C
- Net Weight: 188g
Supported Protocols:
- ISO9141-2
- ISO14230-2
- ISO15765
- K / L Line
- SAE-J1850 VPW
- SAE-J1850 PWM
- ISO11898 CAN
- SAE J2610
- GM UART
- Honda Diag-H Protocol
- TP2.0
- TP1.6
Comparison:
| Feature | MaxiTPMS TBE200 | MaxiTPMS TBE100 |
| Tire tread depth / brake disc measurement | Yes | Yes |
| No wheel removal required | Yes | Yes |
| Laser measurement | Yes | Yes |
| Measurement accuracy | 0.1 mm | 0.1 mm |
| Real-time measurement display | Yes | Yes |
| Uneven wear analysis | Yes | Yes |
| DOT scan | Yes | No |
| Tire expiration notice | Yes | No |
| Tire recall lookup | Yes | No |
| Take photos of tire damage | Yes | No |
| Battery capacity | 3000mAh | 1300mAh |

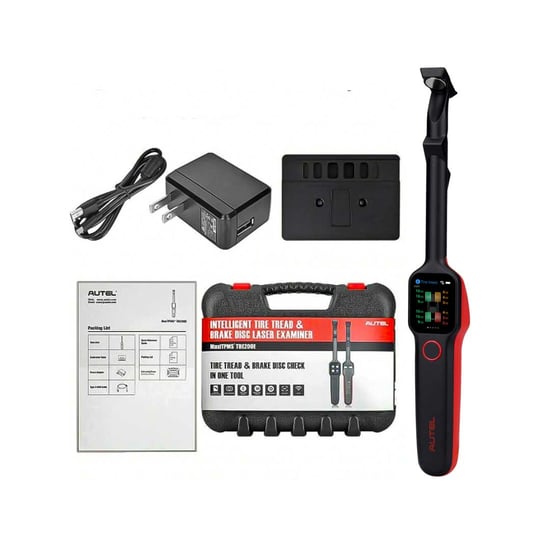

Package Contents:
- MaxiTPMS TBE200 Tool
- Calibration Table
- Power Adapter
- Type-C USB Cable
- Carrying Case
- Packing List
- Quick Reference Guide
