Autel MaxiTPMS TS900 Three-in-one TPMS, Diagnostics, And Service Wireless Touchscreen Tablet

Autel MaxiTPMS Ts900 Three-in-one TPMS, Diagnostics, And Service Wireless Touchscreen Tablet Autel MaxiTPMS TS900 Description: Autel MaxiTPMS Ts900 Three-in-one TPMS, Diagnostics, And Service Wireless Touchscreen Tablet Diagnostic Tools TPMS Service From Autel with Product Number: MK20648 This Weight Product: 3000g Important Notes for Autel MaxiTPMS TS900: 2 Years update subscription is...

Categories : TPMS Service

Description
Review

Autel MaxiTPMS Ts900 Three-in-one TPMS, Diagnostics, And Service Wireless Touchscreen Tablet

Autel MaxiTPMS TS900 Description:
Autel MaxiTPMS Ts900 Three-in-one TPMS, Diagnostics, And Service Wireless Touchscreen Tablet
Diagnostic Tools TPMS Service From Autel with Product Number: MK20648
This Weight Product: 3000g
Important Notes for Autel MaxiTPMS TS900:

2 Years update subscription is included with the device.
Ip Restriction (works only in India, Middle East and Africa ).

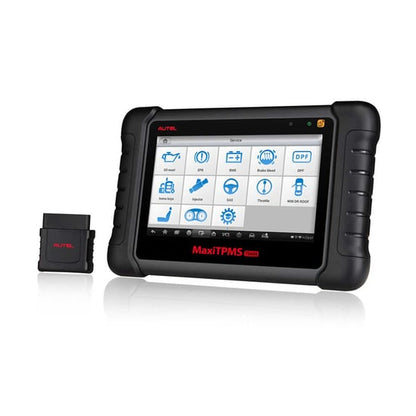

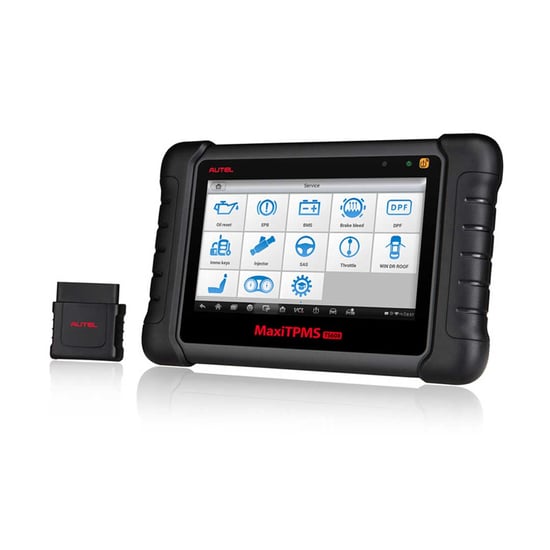

Autel MaxiTPMS TS900 is an 8-inch, three-in-one, TPMS, diagnostics, Service, wireless touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel BLE Sensor, preprogrammed for Tesla vehicles. The TS900 offers both basic all-systems diagnostics, such as the ability to read and clear codes and view Freeze Frame and Live Data, and advanced features, such as Active Tests and Special Functions. The TS900 can generate, print, and share Pre- and Post-Scans. The Android 11-based tablet features an extensive Service Menu providing direct access to more than 40 service functions, including Oil and Service Lights reset, Electronic Parking Brake reset, Brake Bleed, Air Bag reset, and Occupancy Seat calibration. The TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory.

• Comprehensive coverage for TPMS
• Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
• Industry-leading Relearn-by-OBD vehicle coverage.
• Compatible with 315MHz, 433/434MHz and 2.4GHz (BLE) frequency TPMS sensors.
• Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
• Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
• Extensive Service Menu with direct access to over 38+ maintenance services.
• Supports the latest communication protocols, including CAN FD/DoIP.
• Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
• Auto-VIN technology automatically identifies vehicle make, model, and year.
• 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
• 64GB onboard memory for fast processing and access to the software.
• Android 11 operating system for fast boot-up and operation speed.

Autel MaxiTPMS TS900 Specifications:

Recommended Use
Indoor

Operating System
Android™ 11

Processor
RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz)

Memory
4GB RAM & 64GB ROM

Display
8-inch LCD screen with 1280 x 800 resolution

Rear Camera
8MB

Connectivity

USB Type-C
USB 2.0
Wi-Fi
Bluetooth
Mini SD card (supports up to 64GB)

Sensors
Ambient light sensor for brightness auto changing

Audio Input/Output

Input: N/A
Output: Buzzer

Power and Battery

3.7 V/7700 mAh lithium-polymer battery
Charges via 5V DC power supply

Tested Battery Life
Around 7 hours of continuous use

Battery Charging Input
5 V/3 A

Power Consumption
Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temperature
0 to 50°C((32 to 122°F)

Storage Temperature
-10 to 60°C (14 to 140°F)

Operating Humidity
5% – 95% non-condensing

Dimensions (W x H x D)
259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32")

Net Weight
998 g (2.2 lbs)

Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD

Comparison Between ( MaxiTPMS TS900 MaxiTPMS TS608 MaxiTPMS ITS600/ ITS600 PRO MaxiTPMS TS508WF ) :

　
MaxiTPMS TS900
MaxiTPMS TS608
MaxiTPMS ITS600/ ITS600 PRO
MaxiTPMS TS508WF

TPMS Function

Easy Vehicle Identification
Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/ Manually Select&Input
Auto-VIN/ Auto-Scan/ Manually Select&Input
Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/ Manually Select&Input
Manually Select

Active&Programming&Relearn BLE TPMS Sensors
√
×
√
×

Active&Programming&Relearn RF(315/ 433MHz) TPMS Sensors
√
√
√
√

TPMS Diagnostics
Enhanced TPMS status screen
Enhanced TPMS status screen
Enhanced TPMS status screen
TPMS status screen

Relearn Procedure
4 Methods
4 Methods
4 Methods
4 Methods

Autel RF TPMS Sensor Batch Programming
Up to 20 Sensors
Up to 16 Sensors
Up to 20 Sensors
Up to 16 Sensors

Programming Methods
4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only

Check MX-Sensor Information (ID, Battery, etc.)
√
√
√
√

Tire Pressure Placard Value Reset
√
√
√
√

Read/Clear Codes for TPMS System
√
√
√
√

Test Report
√
√
√
View On PC

Diagnostic function

All System Diagnostics
√
√
ITS600: OLS, SAS, BMS, EPB
ITS600 PRO: All System Diagnostics
/
