Product Description:

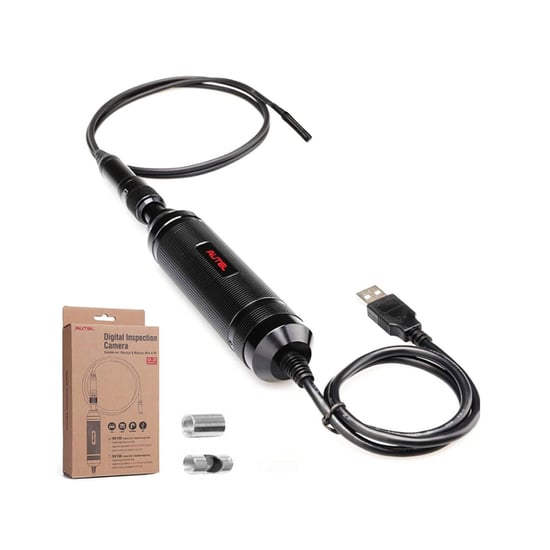

Autel MV105S Inspection Video Scope Designed to Work with Autel Tablets
The Autel MV105S Digital Inspection Camera is designed to work with Autel diagnostic tablets. It turns your Autel tablet into a video inspection scope, allowing you to inspect difficult-to-reach areas normally hidden from sight.
The MV105S can record digital still images and videos, providing an economical and practical solution for inspecting vehicle components, machinery, and infrastructure quickly and safely.
Autel MV105S Highlights:
- Bright white LED lights illuminate inspection areas
- Small diameter probe for tight spaces
- Ideal for visual inspections in confined areas such as engine cylinders
- Suitable for inspecting spark plug holes and small engine components
- High resolution camera provides clear inspection images
- Designed to connect directly with Autel diagnostic tablets
Autel MV105S Specifications:
| Imager Head Diameter | 5.5 mm |
| Camera | 1 MP |
| Resolution | 1280 × 720 |
| Depth of Field | 2 cm to 10 cm (0.79" – 3.94") |
| LED Beads | 8 LEDs |
| Cable Length | 1 meter (39.37") |
| Waterproof Rating | IP67 (Imager Head) |
| Operating Temperature | -10°C to 70°C |
| Storage Temperature | -10°C to 70°C |
Autel Inspection Video Scope Comparison:
| Model | Imager Head | Depth of Field | Camera | Connection |
| MV108S | 8.5 mm | 3 – 8 cm | 2 MP | USB 2.0 |
| MV105S | 5.5 mm | 2 – 10 cm | 1 MP | USB 2.0 |
| MV108 | 8.5 mm | 2 – 6 cm | 0.3 MP | USB 2.0 |
| MV105 | 5.5 mm | 2 – 6 cm | 0.3 MP | USB 2.0 |
