Product Description:

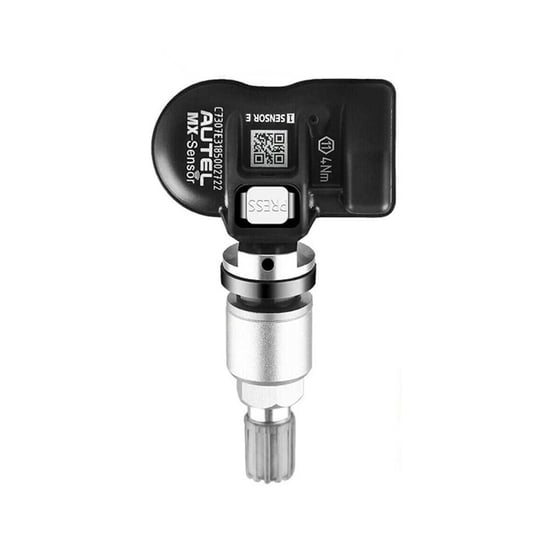

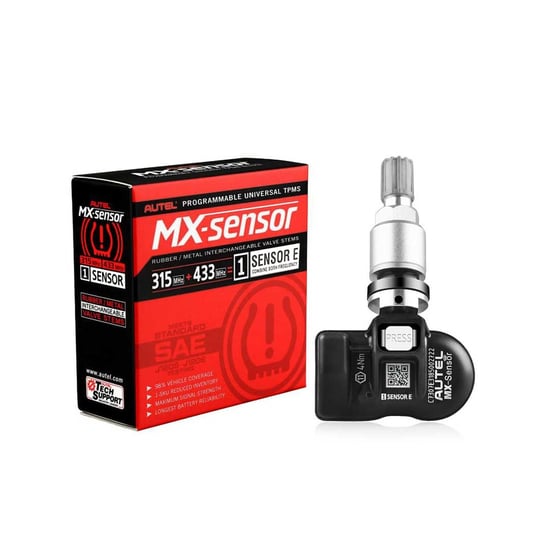

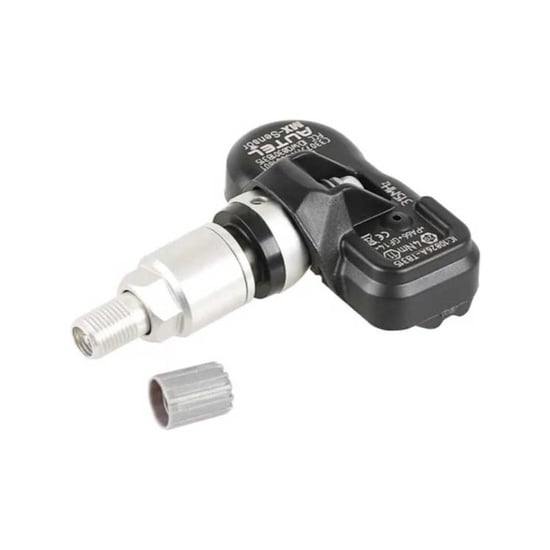

Autel MX-Sensor E TPMS Programmable 2-In-1 315-433MHz Metal Tire Pressure Sensors
The Autel MX-Sensor E is a programmable 2-in-1 TPMS sensor designed to support both 315MHz and 433MHz frequencies. This universal 1-Sensor solution provides coverage for approximately 98% of TPMS-equipped vehicles, reducing inventory requirements while improving installation efficiency.
Autel MX-Sensor Features & Benefits:
- 2-in-1 programmable sensor supporting both 315MHz and 433MHz frequencies
- Universal 1-SKU sensor solution covering approximately 98% of vehicles
- Exclusive press release interchangeable valve stem design
- Supports both rubber and metal valve stem options
- Reduces tire service and installation time
- Improves shop efficiency and reduces sensor inventory costs
Complete TPMS Solution:
- Autel manufactures both TPMS sensors and TPMS diagnostic tools
- Wide compatibility with Autel TPMS programming devices
- Simple and easy tool navigation
- Faster TPMS service and repairs
98% Vehicle Coverage – 1-SKU Inventory:
- Universal programmable sensor for most TPMS vehicles
- Reduces the need to stock multiple sensor types
- Improves installation efficiency for workshops
- Cost-effective solution for TPMS repairs
Exclusive Press Release Interchangeable Valve Stems:
- Patented press-release valve design
- Allows rubber or metal valve stems to be easily replaced
- No valve fitting tool required
- Simple click-in and press-out installation
Maximum Signal Strength Wireless Programming:
- Strong signal strength allows wireless programming
- Sensors can be programmed even when mounted on wheels
- Supports programming up to 16 sensors in one session
- 100% clone-able with original sensor ID
- No relearn required when cloning sensor ID
Superior Battery Reliability and Lightweight Design:
- High-quality materials for reliable battery performance
- Battery life comparable to OE sensors
- Lightweight 12g sensor body
- Improves stability and sensor performance
SAE Tested and Certified:
- Tested to SAE J1205 and J1206 industry standards
- Strict quality control during manufacturing
- Each sensor includes a unique serial number for tracking
- 24-month or 24,000-mile manufacturer warranty
Autel MX-Sensor Specifications:
| Battery Life | ≥ 5 years |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +125°C |
| Operating Humidity | ≤ 90% |
| Operating Frequency | 315 MHz / 433 MHz |
| Pressure Monitoring Range | 100 – 900 kPa |
| Pressure Reading Accuracy | ±10 kPa |
| Temperature Reading Range | -40°C to +125°C |
| Temperature Reading Accuracy | ±5°C |
| G Sensor Reading Accuracy | ±15% |
| Transmission Power | 5 – 8 dBm |
| Battery | 3.0 V |
| Dimensions | 42.2 mm × 27.9 mm × 17.4 mm |
Package Includes:
- 1 × Autel MX-Sensor E 433/315 MHz 2-in-1 TPMS Sensor
- 1 × User Manual
