Product Description:

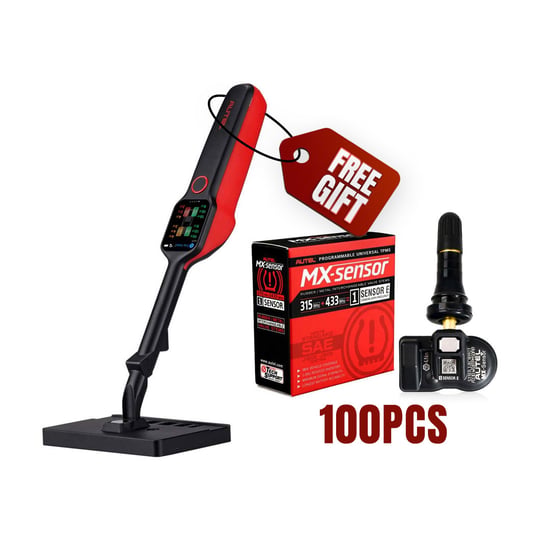

Autel MX-Sensor E TPMS Rubber 100 PCs + Free MaxiTPMS TBE200 Tire Control Device
This bundle includes 100 Autel MX-Sensor E programmable TPMS sensors with rubber valve stems and a free Autel MaxiTPMS TBE200 Tire Control Device. The MX-Sensor E provides a universal 2-in-1 315MHz and 433MHz TPMS sensor solution covering approximately 98% of vehicles equipped with TPMS.

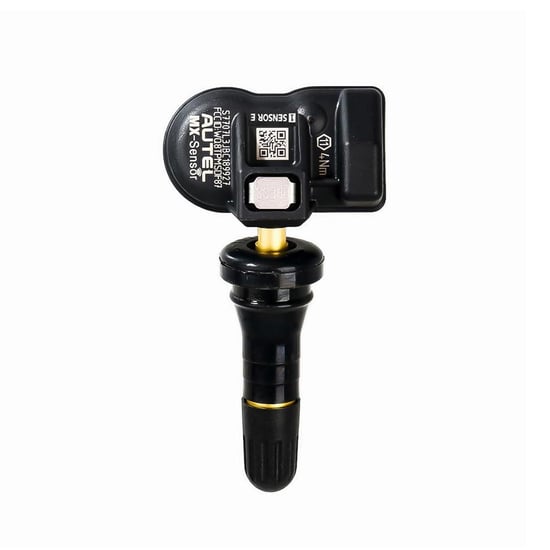

Autel MX-Sensor Features & Benefits:
- 2-in-1 programmable TPMS sensor supporting both 315MHz and 433MHz
- Universal 1-SKU sensor solution providing approximately 98% vehicle coverage
- Exclusive press-release interchangeable valve stem design
- Supports rubber and metal valve stems
- Reduces tire service time and improves workshop efficiency
- Lower inventory cost with universal sensor coverage
Complete TPMS Solution:
- Autel produces both TPMS sensors and TPMS service tools
- Wide compatibility with Autel TPMS programming devices
- Simple and easy tool navigation
- Faster TPMS service and repairs
98% Vehicle Coverage – 1-SKU Inventory:
- Single sensor solution for most TPMS vehicles
- Reduces the need to stock multiple sensor types
- Cost-effective inventory solution for repair shops
- Improves installation efficiency
Exclusive Press Release Interchangeable Valve Stems:
- Patented press-release valve design
- Interchangeable rubber and metal valve stems
- No valve fitting tool required
- Simple click-in and press-out installation
Maximum Signal Strength Wireless Programming:
- Strong signal strength allows wireless programming
- Sensors can be programmed even when mounted on wheels
- Up to 16 sensors programmable in one session
- 100% clone-able with original sensor ID
- No relearn required when cloning sensor ID
Superior Battery Reliability and Lightweight Design:
- Advanced TPMS technology for reliable battery performance
- Battery life comparable to OE sensors
- Lightweight sensor body (approx. 12g)
- Improves stability and performance
SAE Tested and Certified:
- Tested to SAE J1205 and J1206 industry standards
- Strict manufacturing quality control
- Unique serial number for sensor tracking
- 24-month or 24,000-mile warranty coverage
Autel MX-Sensor Specifications:
| Battery Life | ≥ 5 years |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +125°C |
| Operating Humidity | ≤ 90% |
| Operating Frequency | 315 MHz / 433 MHz |
| Pressure Monitoring Range | 100 – 900 kPa |
| Pressure Reading Accuracy | ±10 kPa |
| Temperature Reading Range | -40°C to +125°C |
| Temperature Reading Accuracy | ±5°C |
| G Sensor Reading Accuracy | ±15% |
| Transmission Power | 5 – 8 dBm |
| Battery | 3.0 V |
| Dimensions | 42.2 mm × 27.9 mm × 17.4 mm |
Package Includes:
- 100 × Autel MX-Sensor E 433/315 MHz 2-in-1 TPMS Sensors
- 1 × Autel MaxiTPMS TBE200 Tire Control Device (Free Gift)
Autel MaxiTPMS TBE200 Tire Control Device:
The Autel MaxiTPMS TBE200 is a laser-enabled tool designed to measure tire tread depth and brake disc wear with high accuracy. It provides real-time analysis and detailed tire health reports.
Key Features:
- Laser measurement for tread depth and brake disc wear
- Measurement accuracy up to 0.1 mm
- No need to remove wheels for measurement
- Real-time data display on touchscreen
- Uneven wear analysis
- Tire replacement and maintenance recommendations
- DOT number scanning and recall lookup
- Photo documentation of tire wear and damage
- QR code report sharing
TBE200 Device Specifications:
| Processor | 4 × ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM / 4GB ROM |
| Display | 1.65-inch AMOLED touchscreen (348 × 442) |
| Connectivity | Wi-Fi, USB Type-C |
| Camera | 1MP macro + 8MP zoom camera |
| Battery | 3.7V / 3000mAh lithium battery |
| Battery Life | Up to 8 hours continuous use |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Net Weight | 188 g |

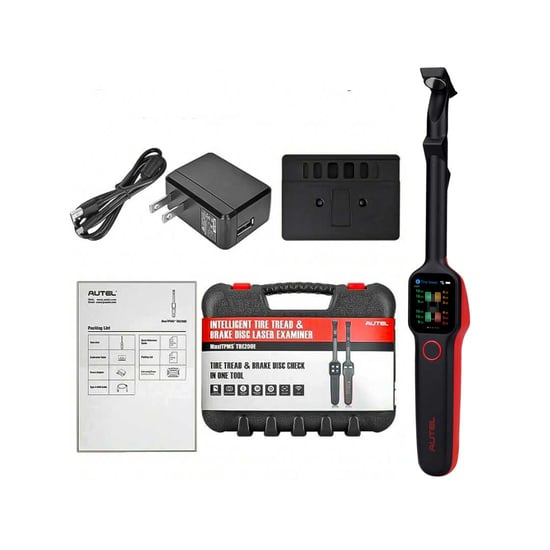

Package Contents:
- MaxiTPMS TBE200 Tool
- Calibration Table
- Power Adapter
- USB Type-C Cable
- Carrying Case
- Packing List
- Quick Reference Guide
