Product Description:

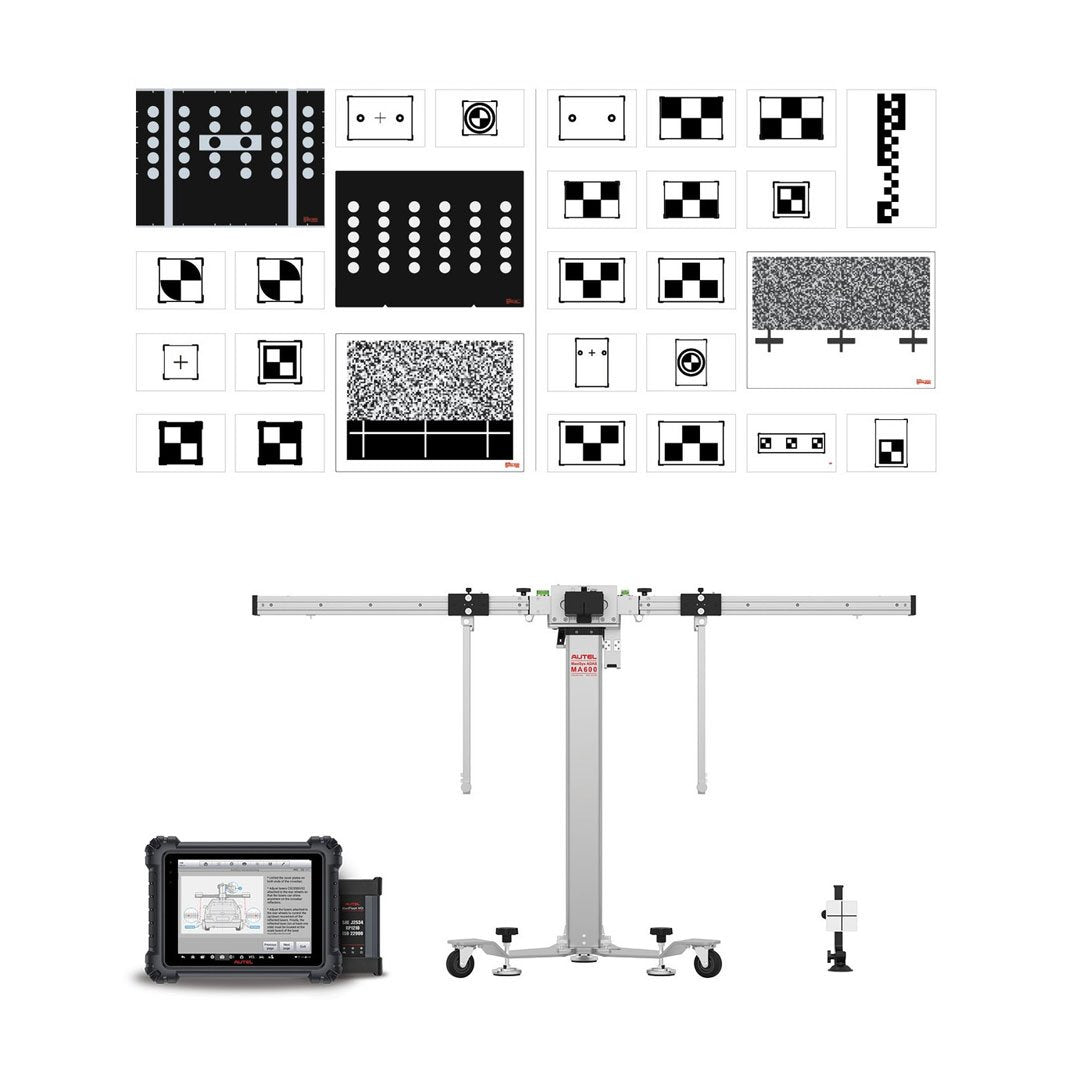

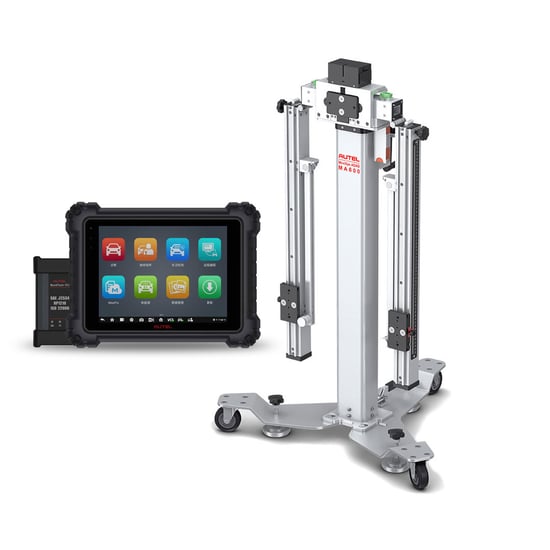

Autel Portable ADAS System MA600 ALL SYSTEMS 2.0T Calibration System + MaxiSys MS909 Diagnostic Tablet
The Autel MA600 Portable ADAS Calibration System combined with the MaxiSys MS909 Diagnostic Tablet provides a professional solution for ADAS calibration and advanced vehicle diagnostics. The MA600 system features a collapsible aluminum frame designed for portability and fast setup, allowing technicians to perform precise ADAS calibration in multiple service environments.
MAXISYS MA600 PORTABLE ADAS SYSTEM:
- Portable ADAS calibration system designed for advanced driver assistance systems
- Collapsible aluminum calibration frame for easy transport
- Includes 2-line centering and 5-line alignment lasers
- Laser-assisted reflectors for precise positioning

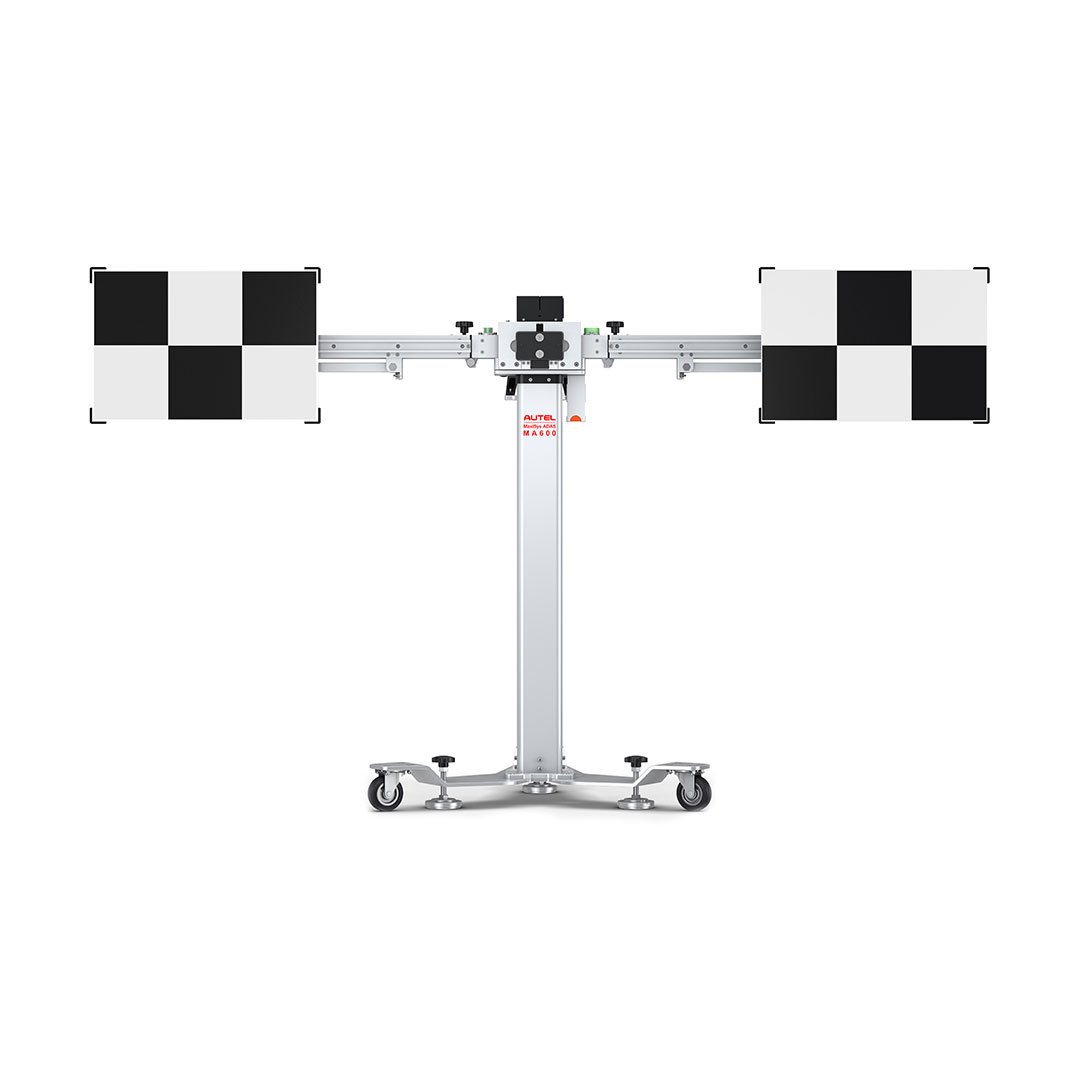

- Lane Departure Warning (LDW) calibration targets included
- Supports calibration for numerous vehicle manufacturers
- Compatible with Autel MaxiSYS ADAS tablet and MS906BT or higher series with ADAS software
- Portable and expandable calibration solution for workshops
ADAS Calibration Functions:
- Lane Departure Warning (LDW) calibration
- Adaptive Cruise Control (ACC) calibration
- Around View Monitoring (AVM) calibration
- Blind Spot Detection (BSD) calibration
- Rear Collision Warning (RCW) calibration
- Night Vision system calibration
Tablet Specifications (MaxiSys MS909):
| Operating System | Android 4.4.2 KitKat |
| Processor | Samsung Exynos Six-core Processor |
| Memory | 2GB RAM / 64GB Storage |
| Display | 9.7-inch LED capacitive touchscreen (1024×768) |
| Connectivity | Wi-Fi, USB 2.0, Bluetooth v2.1 + EDR, HDMI, SD Card |
| Rear Camera | 8MP with autofocus and flash |
| Battery | 11000 mAh lithium-polymer |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 300 × 220 × 50 mm |
| Net Weight | 1.42 kg |

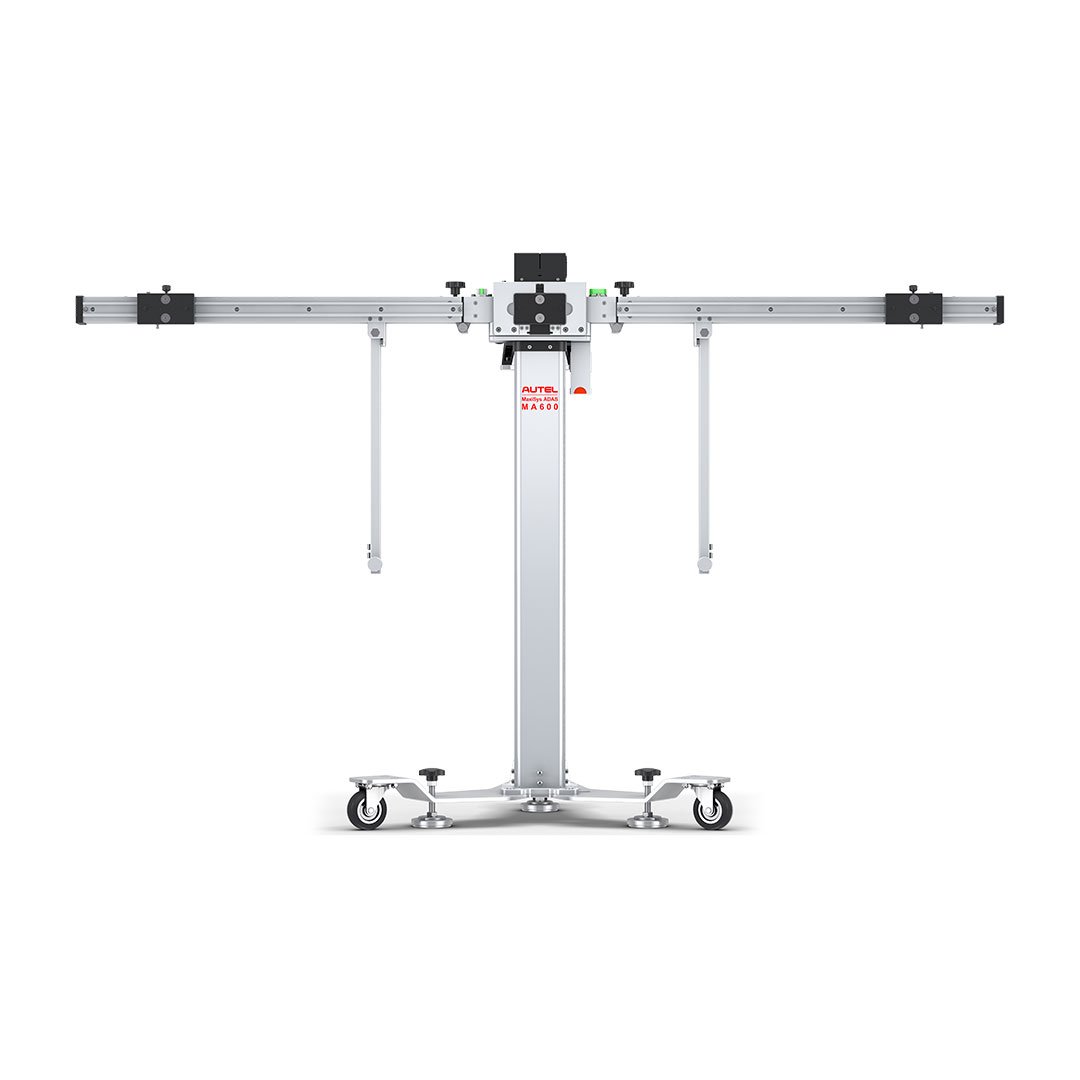

Calibration Frame & Pattern Board Specifications:
| Frame Dimensions | 2510 × 714 × 1480-2105 mm |
| Frame Weight | 74.5 kg |
| Pattern Board Size | 1360 × 960 mm |
| Crossbar Length | 2510 mm |
| Crossbar Height Range | 350 mm – 950 mm |
| Pattern Board Height Range | 1000 mm – 1600 mm |
| Rated Power | 24V / 3A |
| Laser Rated Power | 3V / 25mA |
| Laser Battery | AA 2 × 1.5V |
| Working Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 60°C |
| Laser Class | Class 2 |
| Certification | CE, FCC, RoHS |
ADAS Calibration Supported Systems:
- Lane Departure Warning (LDW)
- Lane Keeping Assist (LKA)
- Adaptive Cruise Control (ACC)
- Blind Spot Detection (BSD)
- Night Vision System (NVS)
- Around View Monitoring (AVM)
- Rear Collision Warning (RCW)
Applications:
- Windshield replacement
- Collision repair
- Wheel alignment service
- ADAS sensor replacement
- Camera or radar calibration
- Vehicle ride height adjustment
