Product Description:

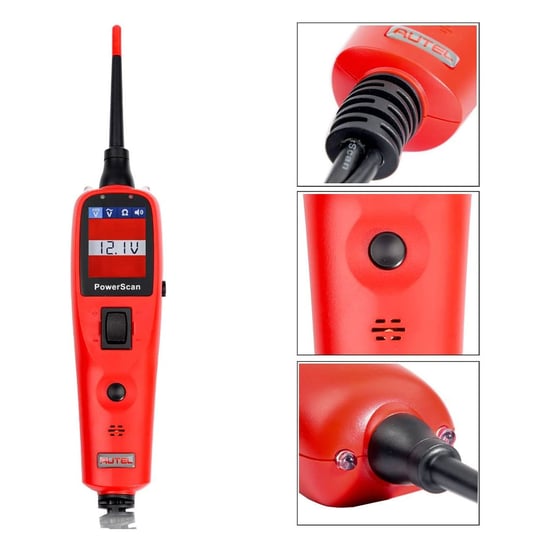

Autel PowerScan PS100 Circuit Control and Installation
The Autel PowerScan PS100 is a professional automotive circuit tester designed for electrical system diagnostics. This multifunction tool combines a digital voltmeter, test light, circuit tester and component activation tool in one device, allowing technicians to diagnose vehicle electrical circuits quickly and accurately.
Autel PowerScan PS100 Highlights:
- Performs power injection, voltage measurement, ground testing, polarity checks and continuity testing
- Activates electrical components directly through the probe
- Built-in AVOmeter reads voltage, current and resistance instantly
- Instant hot/ground lead for powering components like cooling fans and relays
- Identifies positive, negative and open circuits quickly
- Detects bad ground contacts and short circuits instantly
- Tests switches, relays and diodes
- Circuit breaker protection for safe operation
- Built-in flashlight for working in dark environments
- Audio tone indicator for quick menu navigation

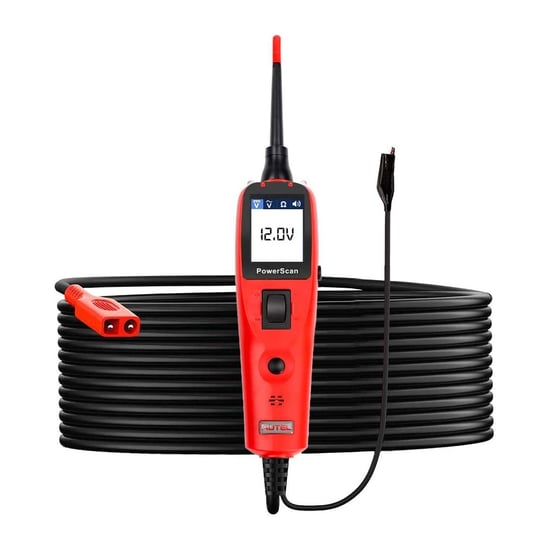

- 20 ft extendable cable for convenient testing around the vehicle
- Easy to operate and highly reliable
Autel PowerScan PS100 Specifications:
| Display | TFT Color Display (160 × 128 dpi) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| External Power | 12V or 24V supplied via vehicle battery |
| Dimensions | 126 mm × 46.5 mm × 35 mm |
| Net Weight | 0.105 kg |
| Gross Weight | 0.726 kg |
Why Buy Autel PowerScan PS100:
- Quickly determine if a circuit is positive, negative or open
- Test circuit continuity using auxiliary ground lead
- Apply positive or negative battery current to activate components
- Detect poor ground contacts instantly
- Short-circuit protection prevents fuse damage
- Locate electrical shorts quickly without wasting fuses
- Long cable allows testing across the entire vehicle
Autel PowerScan PS100 Work Modes:
- DC Voltage Mode: Displays DC voltage when the probe contacts a circuit
- AC Voltage Mode: Displays maximum voltage, minimum voltage, frequency and duty cycle
- Resistance Mode: Measures resistance between probe tip and auxiliary ground lead
- Tone On/Off Mode: Enables or disables the audio tone indicator
Safety Information:
- The LED and LCD draw less than 1 milliamp current making the tester safe for computers and airbag circuits when used as a test light or multimeter
- Internal circuit breaker protects the tool when overloaded
- Reset button restores normal operation after circuit breaker activation

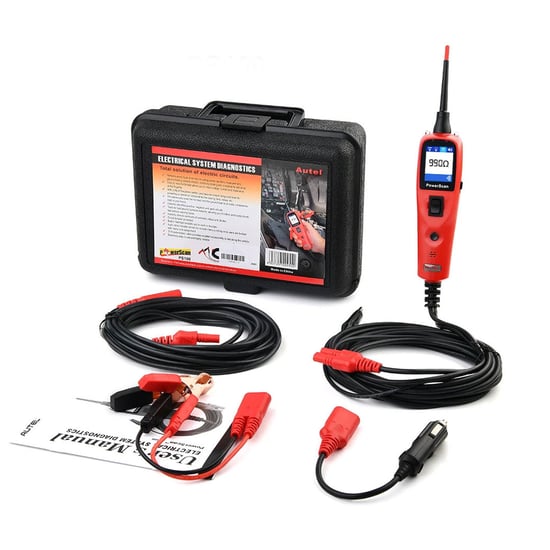

Package Includes:
- 1 × PS100 Main Unit
- 1 × Probe Tip
- 1 × 20 ft Extension Cable
- 1 × Cigarette Lighter Adapter

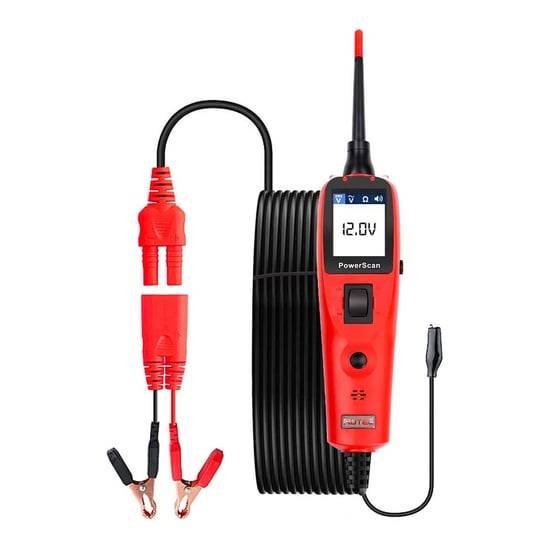

- 1 × Battery Hookup Clips
- 1 × User Manual
- 1 × Rugged Blow Molded Carry Case
