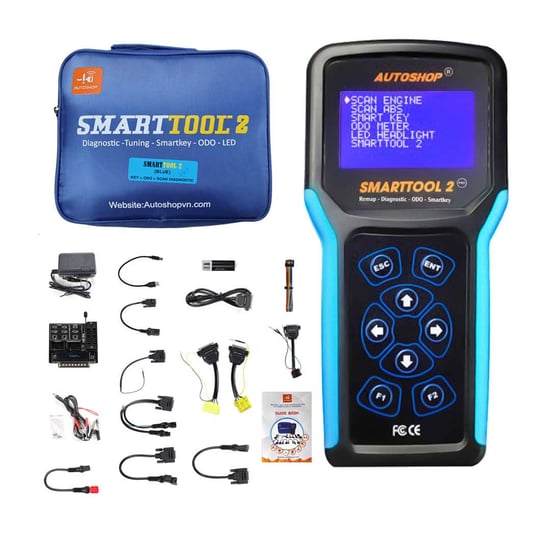

Autoshop SmartTool2 Pro Motorbike Diagnostic & Key & ODO Programming Device

Product Description:

SmartTool2 Pro Motorbike Diagnostic & Key & ODO Programming Devices for motorbike diagnostics, smart key programming, and odometer programming.

Autoshop SmartTool2 Pro guide book in English

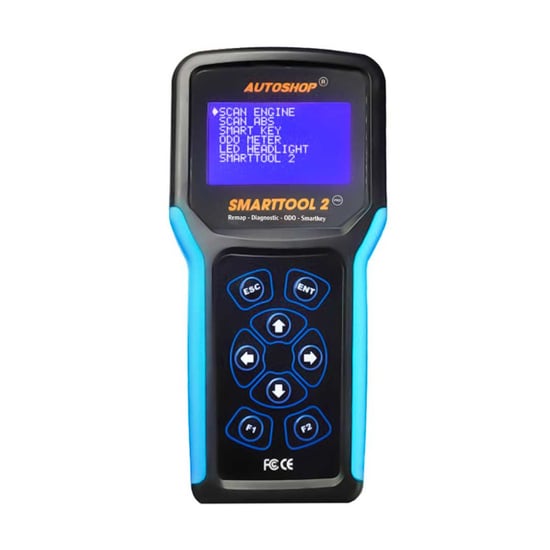

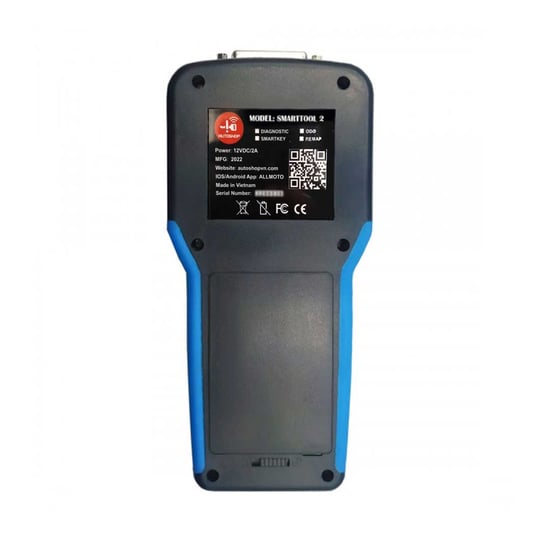

SMARTTOOL2 is a handheld diagnostic tool researched and produced in Vietnam. This multifunction device is used for motorcycles equipped with PGM-FI electronic fuel injection, ABS braking system, smart key system, immobilizer system, odometer system, and LED lighting system. It also integrates remapping, tuning, RPM unlock, and A/F adjustment for Honda, Yamaha, Piaggio/Vespa, and Suzuki models.

General Features:

• Simple interface and easy to use
• ALLMOTO app free for electrical diagrams and repair guides
• Technology transfer and technical support
• Multi-language support: English, Vietnamese, Indonesian
• Online auto-update
• Free updates and 12-month warranty
• Worldwide distributors
• Supported brands: HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM, KYMCO
• Supported ECU manufacturers: Shindengen, Keihin, Denso, Magneti Marelli

Engine / PGM-FI Diagnostic Functions:

• Auto search motorcycle
• Read and erase current and history DTC
• Reset ECM
• Engine live data
• Check A/F ratio and emissions
• View ECU / ECM information
• Adjust CO value
• Sensor checking and actuator active tests
• ECU software upgrade for Honda and Piaggio / Vespa
• Altitude and environmental factor setting
• Reset IACV / ISC
• Reset throttle position sensor zero point
• Erase P0611 EEPROM error for Piaggio / Vespa

ABS Diagnostic System:

• Read and erase ABS DTC
• ABS live data
• Active test components
• View ACU information
• Supported brands: HONDA, YAMAHA, PIAGGIO

Smart Key / Keyless System (Honda, Yamaha, Suzuki):

• Read KEYID when all keys are lost
• Read and reset ECMID from smart box and ECM
• Erase lost or missing keys

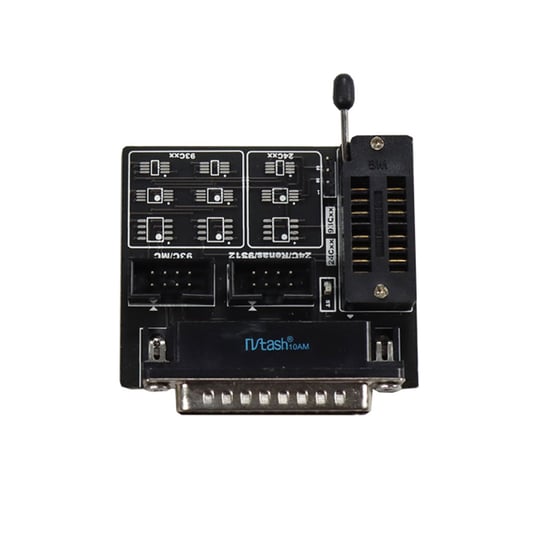

• Reflash smart box EEPROM
• Register new keys in all keys lost case
• Add keys individually
• Check synchronization between key, smart box, and ECM
• Reuse Honda used keys
• ON / OFF key status control
• Automatic synchronization between smart box and ECM
• Replace new ECM
• Register up to 6 keys for Honda

Immobilizer System for PIAGGIO / VESPA:

• Register new keys in all keys lost case
• Reset and erase all keys from IC / ECM
• Support registering new keys

Odometer Adjustment:

• Read current mileage
• Correct odometer value
• Restore original data
• Automatic odometer correction
• Supported brands: HONDA, YAMAHA, SUZUKI, KAWASAKI, PIAGGIO

Supported Motorcycle Brands:

• HONDA
• YAMAHA
• SUZUKI
• PIAGGIO / VESPA
• KAWASAKI

Extra Details:
