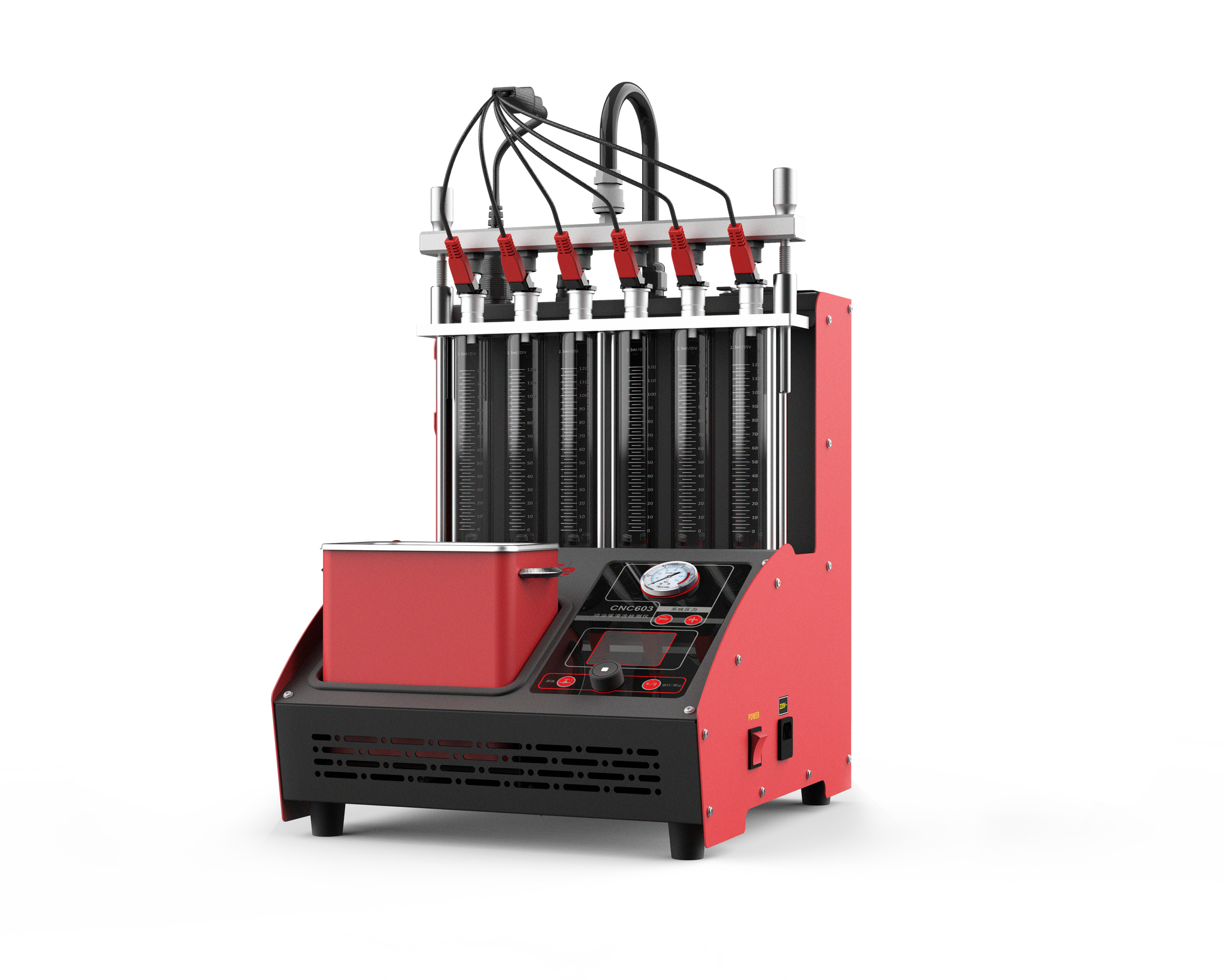

CNC503 is a fully automatic automotive fuel injector cleaning and testing equipment that can simulate engine operating conditions to simul-
taneously clean and test up to 6 fuel injectors.
Features
- Ultrasonic intensive cleaning technology thoroughly eliminates carbon buildup and filter screen deposits from fuel injectors
- Microcomputer automatic control technology enables automatic control of the cleaning and testing process with real-time monitoring of key injector performance
- Equipped with various non-dismantle cleaning connectors to support non-dismantle cleaning and maintenance for multiple vehicle models
- Simulates engine operating conditions to comprehensively assess various aspects of fuel injector performance
Functions
- Ultrasonic cleaning: Simultaneously cleans multiple injectors ultrasonically, effectively removing carbon buildup
- Uniformity / spray testing: Detects fuel injection quantity uniformity and allows comprehensive observation of spray patterns using background lighting
- Sealing test: Tests injector sealing and leakage under system pressure
- Fuel injection quantity detection: Measures fuel injection quantity under a constant 15-second injection condition
- Automatic cleaning and testing: Simulates injector testing under various conditions according to set working parameters
- Reverse flush: Performs reverse flushing to remove internal injector contaminants and residues attached to the filter screen
- Non-dismantle cleaning: Equipped with non-dismantle cleaning adapters to support non-dismantle cleaning and maintenance for multiple vehicle models
Parameters
| Power supply | AC 110V / AC 220V, 50Hz / 60Hz | Pulse width | 0.5 ~ 25 ms (step length 0.1 ms) |
| Main engine power | 300 W | Timer range | 1 ~ 10 min |
| Ultrasonic cleaning power | 50 W | Tank capacity | 3 L |
| Revolutions per minute | 10 ~ 9990 rpm (step length 10 rpm) | Size | 396 × 380 × 446 mm |
