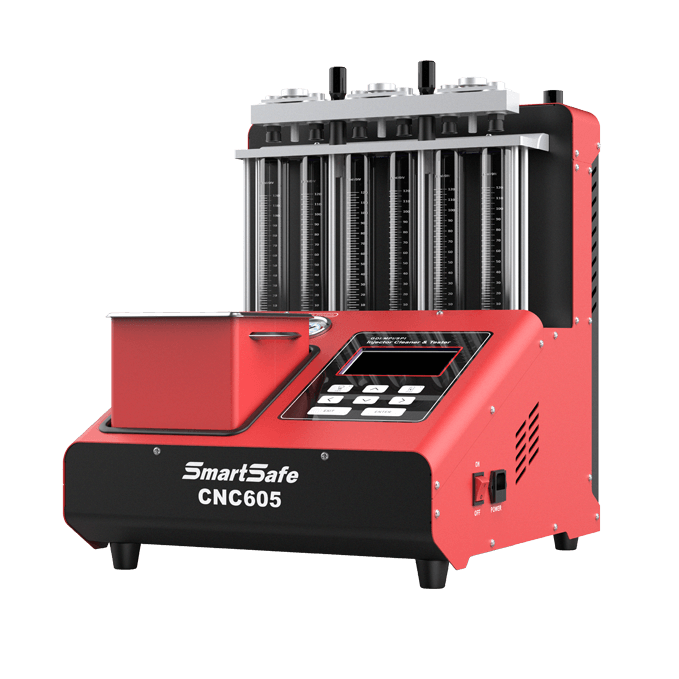

CNC605 is a fuel injector cleaning and testing equipment suitable for GDI, EFI, and SFI systems. It can simulate engine operating conditions to
simultaneously clean and test up to 6 fuel injectors.
Features
- Supports cleaning and testing of GDI, EFI, and SFI fuel injectors
- Ultrasonic intensive cleaning technology thoroughly removes carbon deposits and filter screen residues from fuel injectors
- Microcomputer automatic control technology enables automatic control of the cleaning and testing process with real-time monitoring of key injector performance
- Optional non-disassembly cleaning connectors allow non-dismantle cleaning and maintenance for multiple vehicle models
- Simulates engine operating conditions to comprehensively test various aspects of fuel injector performance
Functions
- Working mode selection: Can select GDI or EFI working mode based on the injector type
- Ultrasonic cleaning: Simultaneously cleans multiple injectors ultrasonically, effectively removing carbon buildup
- Uniformity / spray testing: Detects fuel injection uniformity and allows observation of spray patterns using background lighting
- Sealing test: Tests injector sealing and leakage under system pressure
- Fuel injection quantity detection: Measures fuel injection quantity under a constant 15-second injection condition
- Automatic cleaning and testing: Simulates injector testing under various conditions according to set parameters
- Reverse flush: Performs reverse flushing to remove internal injector contaminants and filter screen residues
- Non-dismantle cleaning: Optional connectors allow non-dismantle cleaning and maintenance for multiple vehicle models
Parameters
| Power supply | AC 110V / AC 220V, 50Hz / 60Hz | Revolutions per minute | 100 ~ 9900 rpm (step length 100 rpm) |
| Main engine power | 350 W | Pulse width | 0.5 ~ 25 ms (step length 0.1 ms) |
| Ultrasonic cleaning power | 100 W | Timer range | 1 ~ 30 min |
| Fuel pressure | 0.1 ~ 10 bar | Tank capacity | 3 L |
| Air inlet pressure | 5 ~ 8 bar | Size | 442 × 490 × 533 mm |
