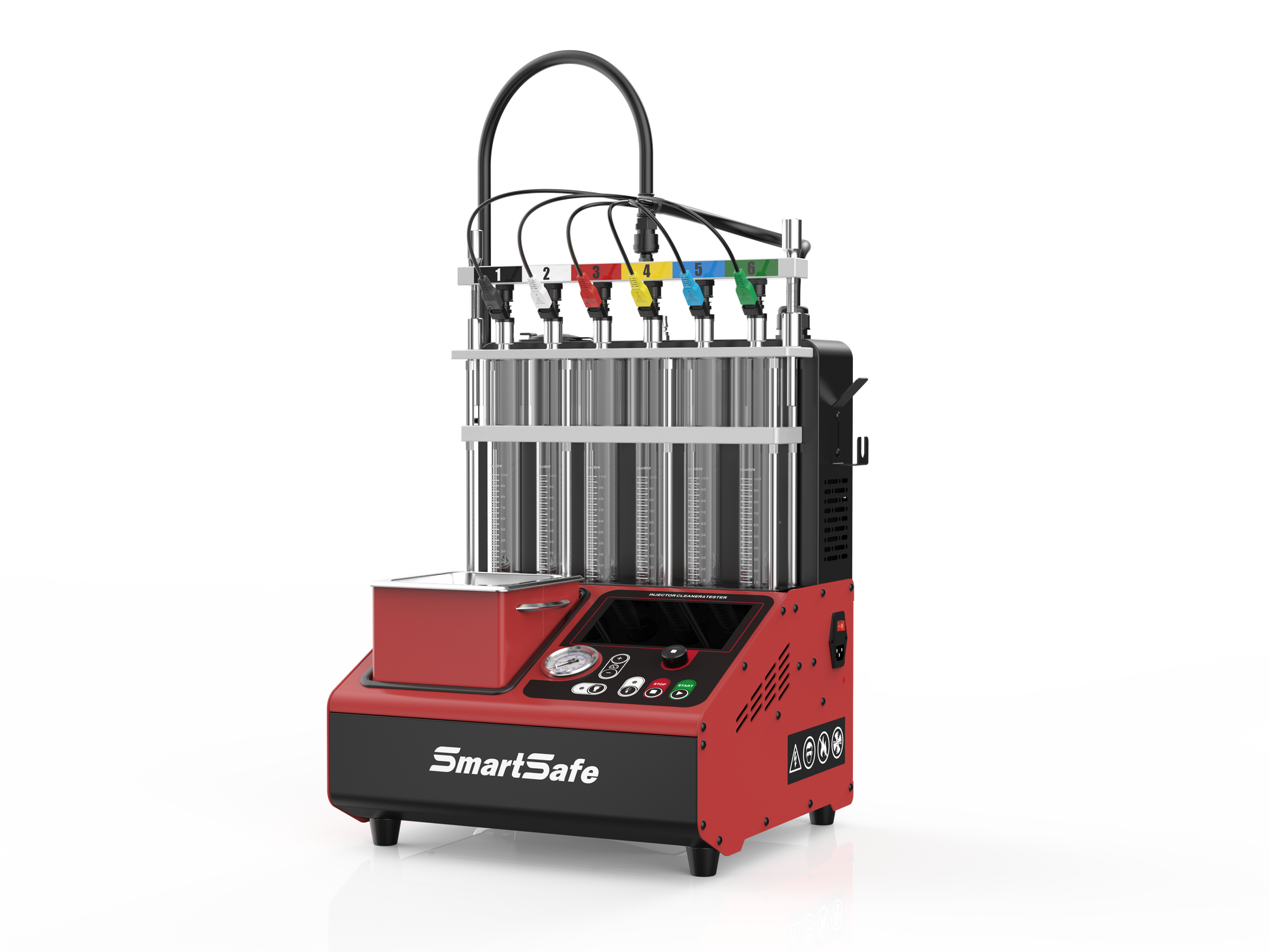

It integrates precise resistance testing, efficient ultrasonic cleaning, and fuel injection detection functions simulating engine operating
conditions. It is equipped with an enlarged visual glass observation window and real-time monitoring of atomization status, allowing one
machine to handle the entire process.
Features
- Supports cleaning and testing of GDI, PIEZO, EFI, and SFI fuel injectors
- Ultrasonic powerful cleaning technology completely removes carbon deposits on fuel injectors and filter deposits
- Microcomputer automatic control technology enables automatic control of the cleaning and testing process with real-time monitoring of injector performance
- Optional non-disassembly cleaning connectors allow non-dismantle cleaning and maintenance for multiple vehicle models
- Simulates engine operating conditions to comprehensively test various aspects of fuel injector performance
Functions
- Working mode selection: GDI, PIEZO, or EFI working mode can be selected according to the injector type
- Ultrasonic cleaning: Multiple fuel injectors can be cleaned ultrasonically at the same time to completely remove carbon deposits
- Uniformity / spray testing: Detects injection uniformity and spray atomization using background lighting for clear observation
- Sealing test: Tests injector sealing and leakage under system pressure
- Fuel injection quantity detection: Measures fuel injection quantity under a constant 15-second injection condition
- Automatic cleaning and testing: Simulates injector operation under various conditions according to set parameters
- Reverse flush: Performs reverse flushing to remove internal contaminants and filter screen residues
- Non-disassemble cleaning: Optional connectors allow non-dismantle cleaning and maintenance for multiple vehicle models
Parameters
| Machine power | 500 W | Simulation speed range | 100 ~ 9900 rpm (step length 10 rpm) |
| Fuel tank capacity | 2.5 L | Time range | 1 ~ 9999 s |
| Ultrasonic cleaning machine power | 100 W | Resistance test range | 0 ~ 250 KΩ |
| Working pressure | 0 ~ 9 bar | Ambient temperature | 0 ~ 45 ℃ |
| Pulse width | 0.1 ~ 25 ms (step length 0.1 ms) | Relative humidity | < 85% |
| Voltage input | AC 110V / AC 220V, 50Hz / 60Hz | ||
