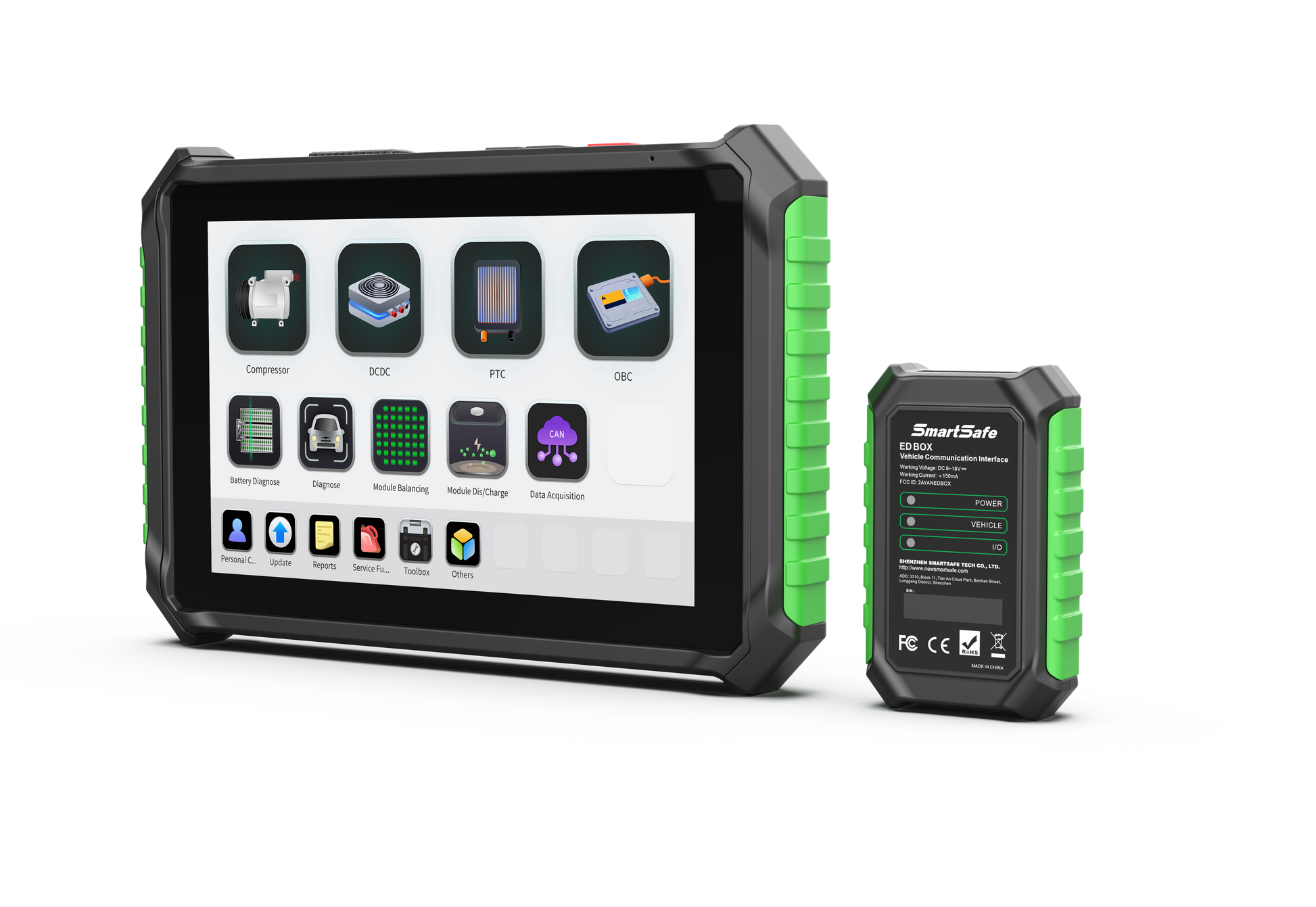

SmartSafe E10 EV Diagnostic Tool

E10 is an intelligent test device designed specifically for the "three-electric" systems (battery, motor, and electronic control system) of electric vehicles

Features

• Supports offline diagnosis of the vehicle's three-electric system (battery, motor, and electronic control system), and integrates the integrated detection function of eight high-voltage accessories, including electric compressors, DC-DC converters, on-board chargers (OBCs), PTC heaters, motors, electronic control units, battery packs, and high-voltage distribution boxes, comprehensively covering the three major maintenance scenarios of vehicle inspection, off-vehicle inspection, and control panel inspection;
• Covers the entire system of more than 95% of electric vehicle models and is continuously updated and adapted;
• Provides control panel fault code repair instructions, including troubleshooting logic, circuit schematics, and control panel topology diagrams, enabling guided repairs;
• Provides a vehicle topology diagram that clearly displays the vehicle communication network and helps quickly locate faults;
• The CE39 host integrates diagnosis, equalization, and charge and discharge functions, supporting simultaneous diagnosis, equalization, charge and discharge. The E10 can remotely control the CE39 host;
• Four battery pack connection methods are provided: OBD interface, dedicated connector, jumper connection and fast charging port connection;
• Standard professional battery pack connector and integrated aviation plug improve detection efficiency;
• Supports more than 10 expansion modules, including ADAS calibration, tire tread detection, insulation tester, oscilloscope, digital power supply, multimeter, current clamp, endoscope, infrared thermal imager, etc;
• Dual Wi-Fi design: the host and VCI use independent Wi-Fi connections, and the VCI operation does not affect the host's networking.

Functions

• Off-vehicle testing: Supports offline diagnosis and driving after replacement and repair of high-voltage components (such as DC-DC converters, on-board chargers, air conditioning compressors, PTCs, motor controllers, etc.), and provides connection instructions to support offline reading of data streams, reading fault codes, and clearing codes for each component.
• Maintenance guide: Supports fault code detection and provides online viewing of fault maintenance guidance.
• Battery pack detection: Supports in-depth battery pack diagnostics for passenger and commercial vehicle battery. It reads SOC/SOH, cell/module voltage, temperature, pack status, and fault information. The system automatically calculates key indicators such as total voltage, voltage difference, and maximum/minimum voltage, automatically flags abnormal data, and provides information security policies to protect all data.
• Vehicle testing: Supports full-function testing of the vehicle's electronic control system, including electric vehicle code reading, code clearing, data stream reading, action testing, special functions, etc.
• Special functions: Supports offline testing of DC-DC converters, on-board chargers, air conditioning compressors, and 48V hybrid components, as well as over 30 commonly used special functions.
• ADAS calibration: Supports ADAS system calibration for many models in Europe, America, Asia and China, and is compatible with all calibration frameworks of the ADAS calibration series.
• Test report: Supports categorized display of battery pack test reports, vehicle test reports, ADAS calibration reports, etc.
• Software upgrade: Support online upgrade of vehicle software, firmware software and APP software.
• Module expansion: Supports tread detection, digital power supply, endoscope, infrared thermal imaging and other functional expansions.

Parameters

Tablet parameters

VCI Hardware Specifications

View Specification Sheet
