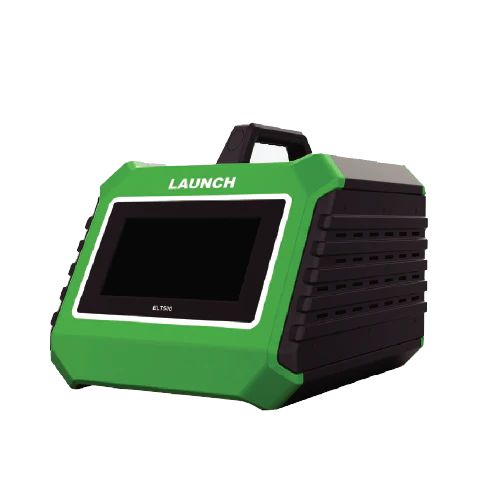

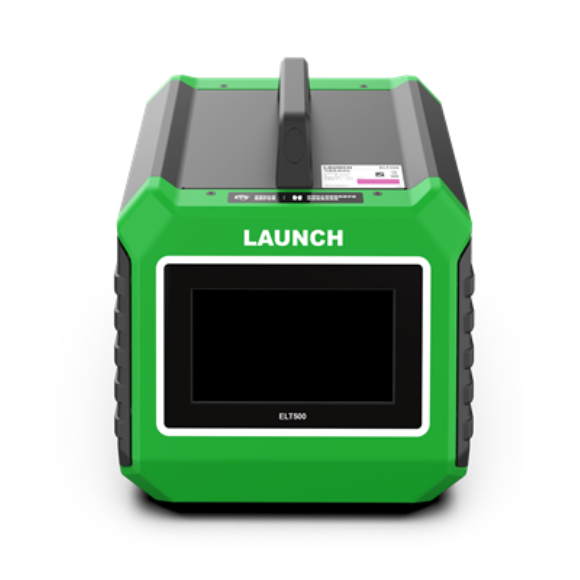

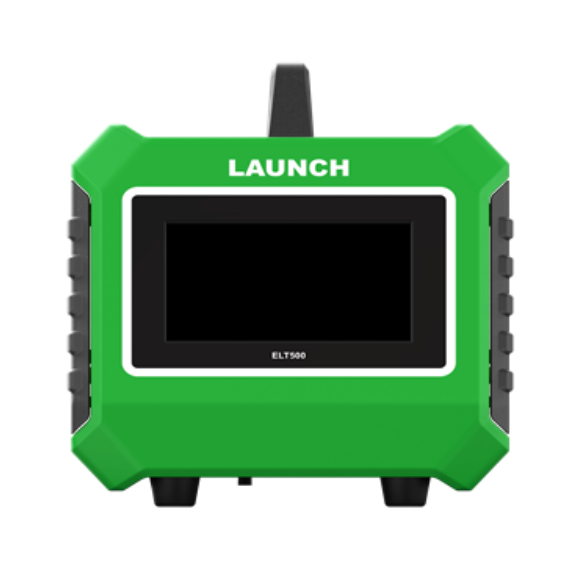

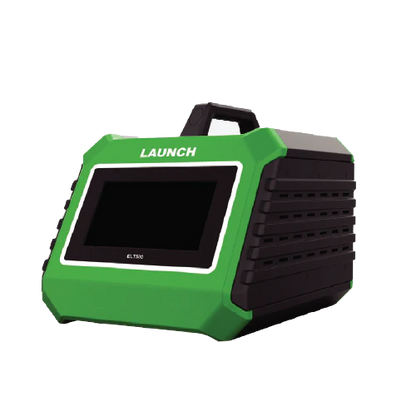

ELT500 is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.
Features
- The 7-inch LCD touch screen and the intuitive menu simplified the operation.
- High-sensitivity pressure sensing, greatly improving test accuracy and stability.
- The test process can display the progress time of each stage.
- Real-time display of pressure dial and display of process pressure curve.
- The test parameters of standard parts can be preset and used directly, which is convenient and quick.
- Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.
- Sound and light alarm will be issued when the test is abnormal or failed.
Specifications
| Ā Power |
Ā 20W(Max) |
| Ā Test Pressure Range | Ā 0~30Kpa |
| Ā Sensor Resolution | Ā 1Pa |
| Ā Test Accuracy | Ā Ā±5Pa |

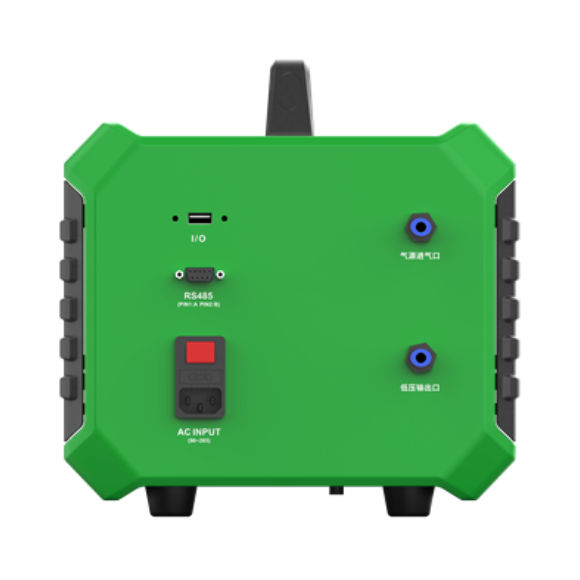

| Ā Communication Interface | Ā RS485/USB |
| Ā Data Storage Method | Ā Internal storage, or data upload to USB driveĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā |
| Ā Power Supply | Ā AC 90~265V |
| Ā Air Source Requirements | Ā 0.1~1.0 Mpa dry compressed air |
| Ā Intake Port/Test Port | Ā Ļ6mm/Ļ6mm |
| Ā Working Temperature/HumidityĀ Ā Ā | Ā -10~55ā/10%~90% @25ā |
| Ā Dimension/Weight | Ā 280*276*360(mm)/4.5kg |
